Regular price 27.113,00€

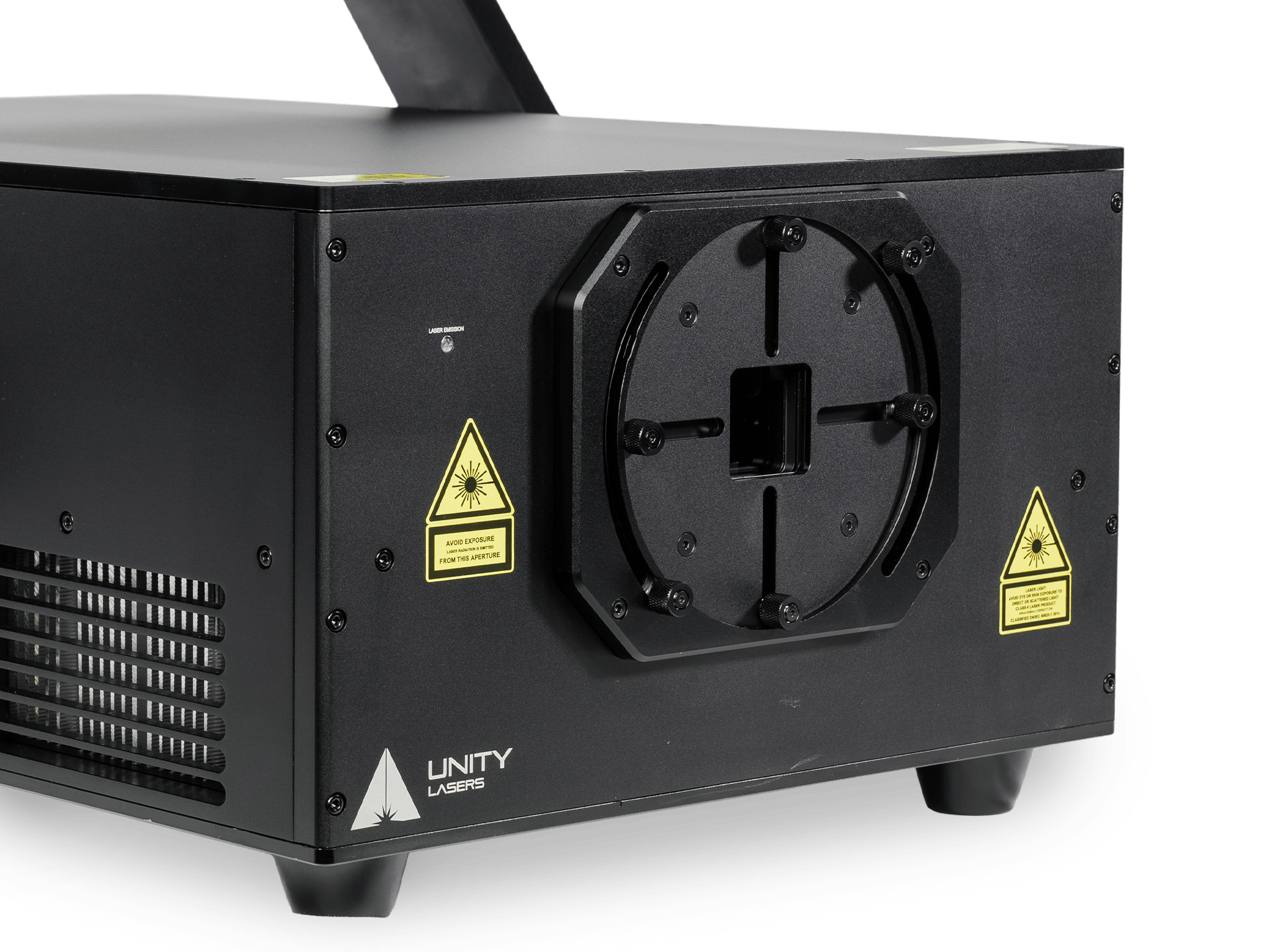

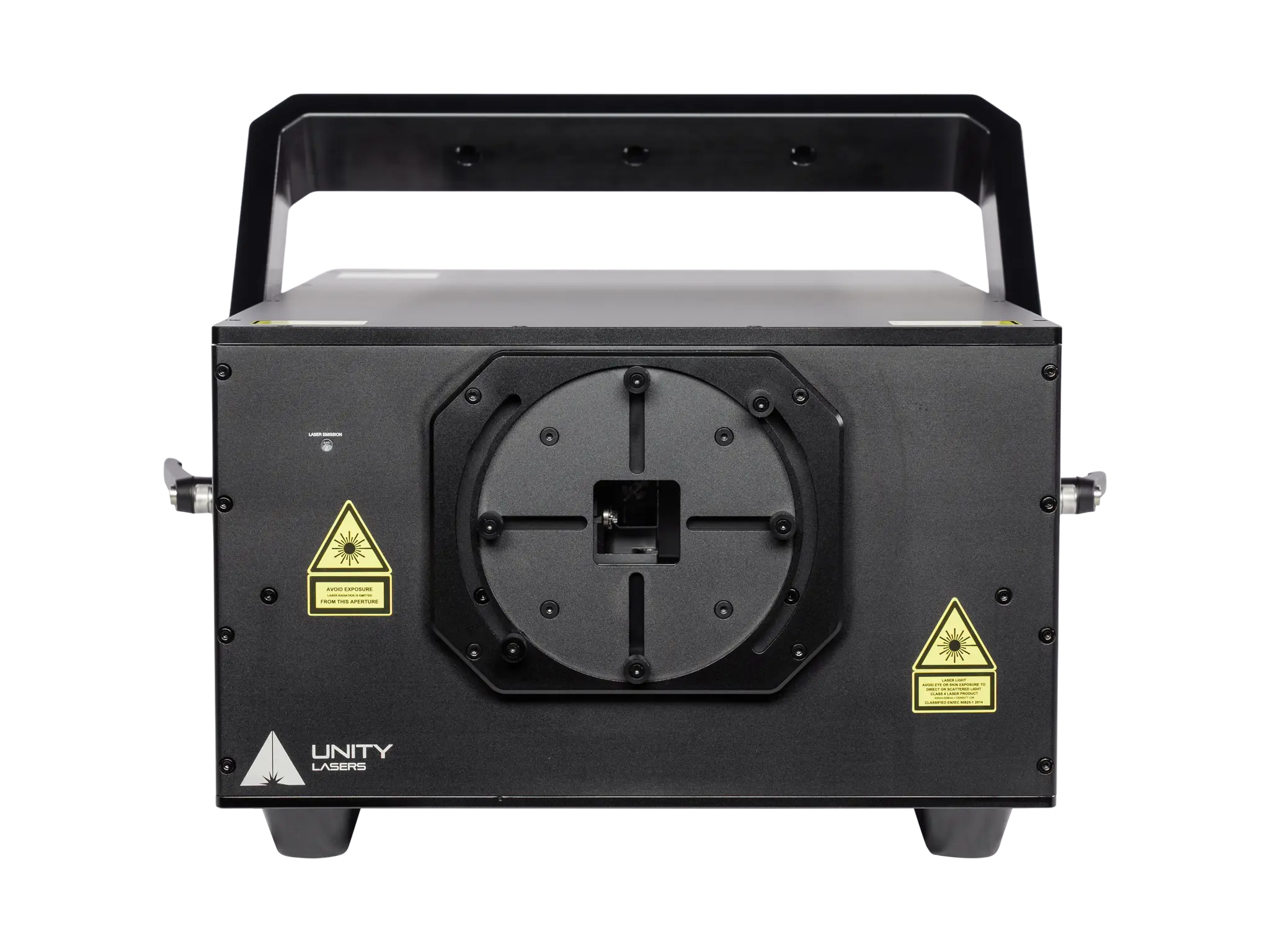

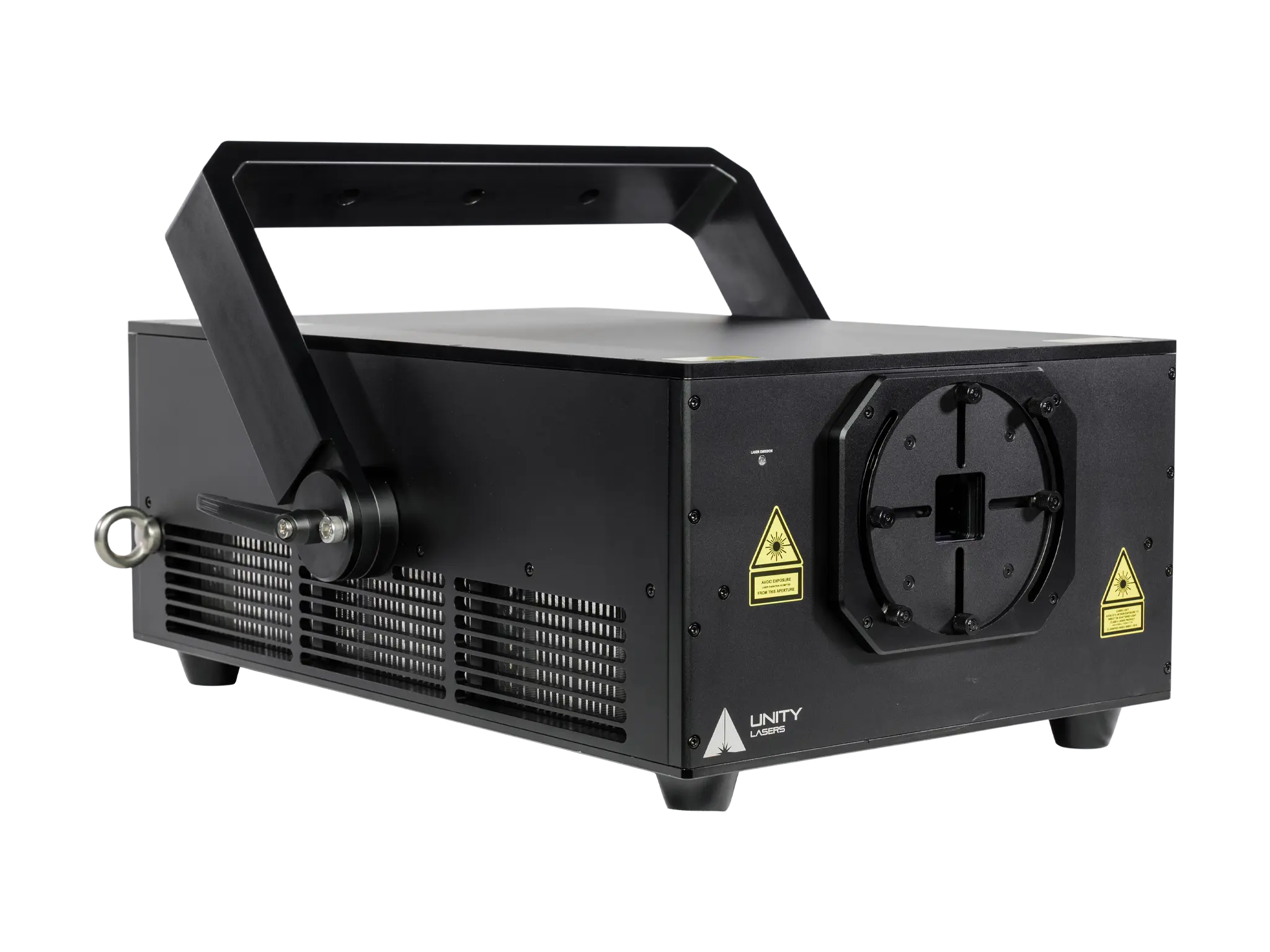

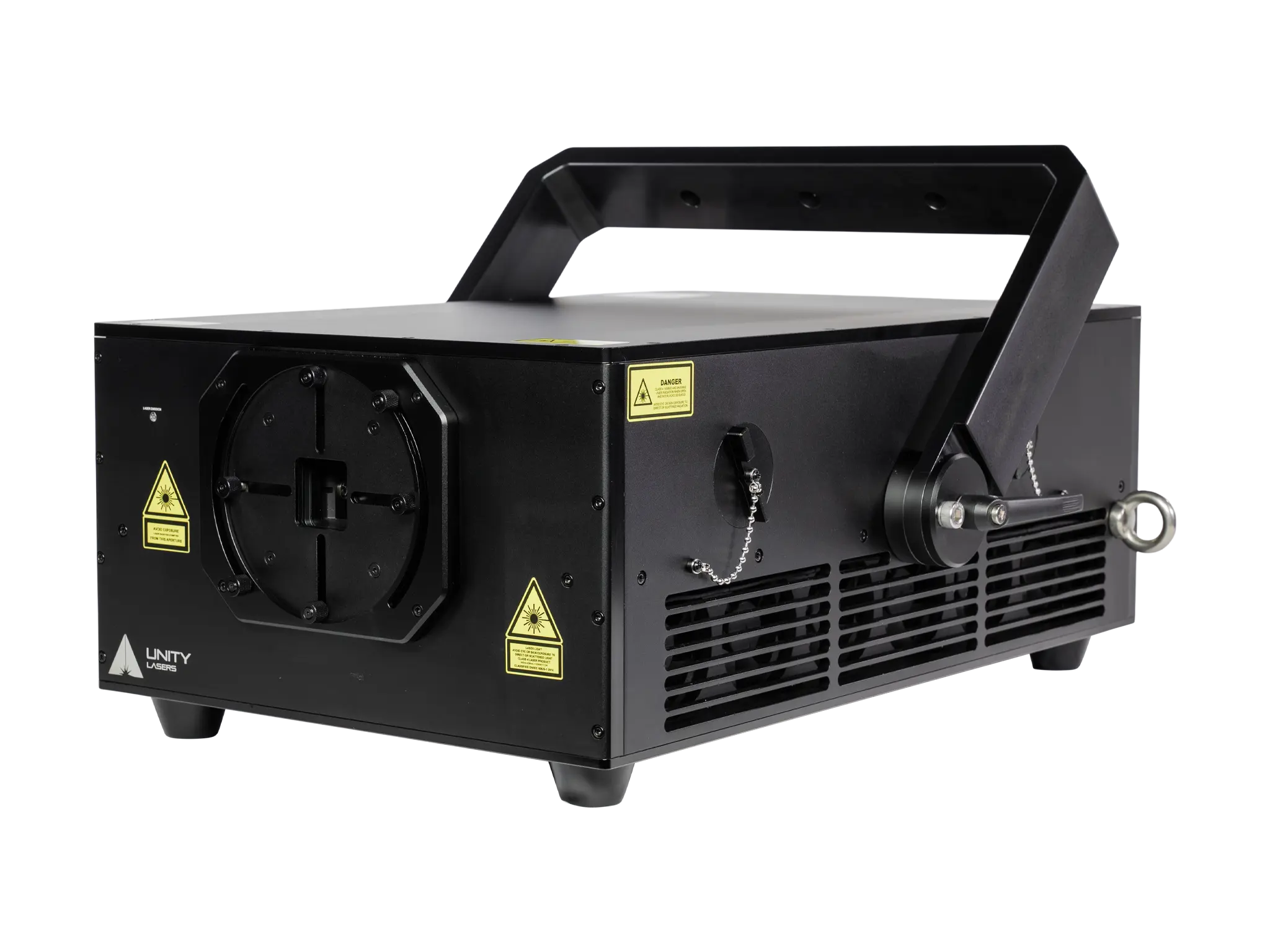

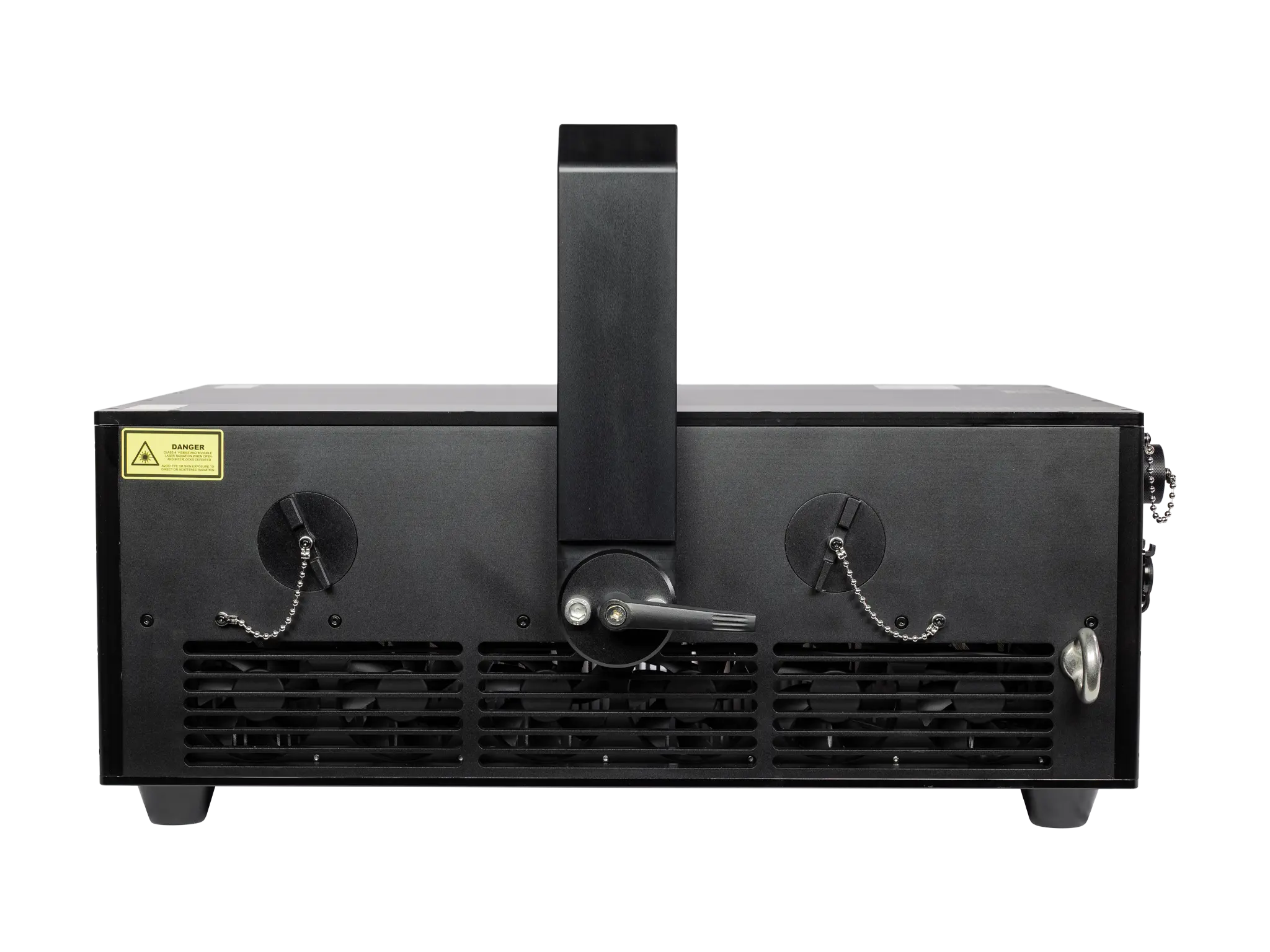

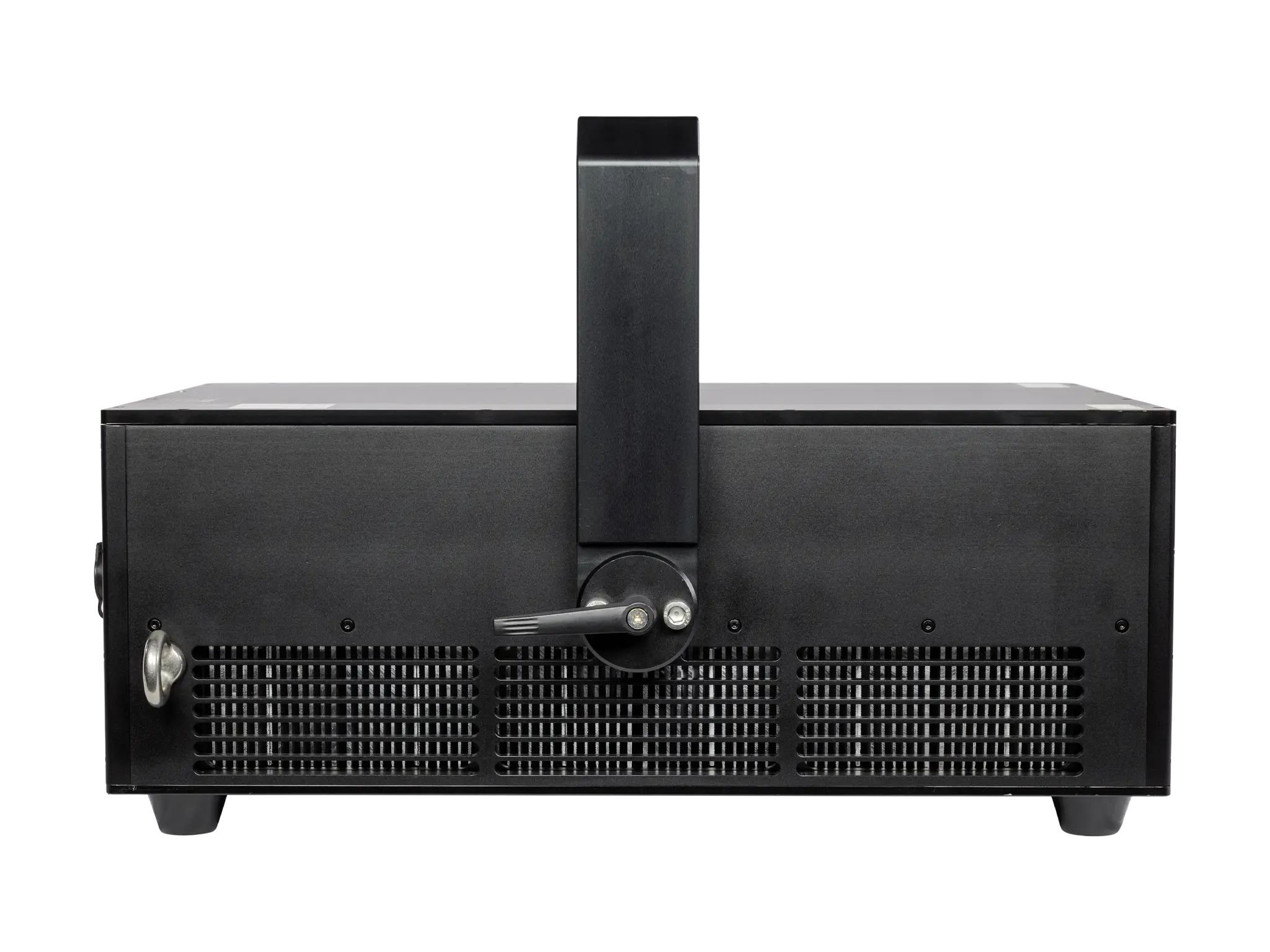

Unity ELITE 120 PRO FB4 (IP65)

If you want to break boundaries, the Elite 120 PRO (IP65) is for you. Made for massive impact and designed for scenarios where you need immense atmospheric laser effects. Featuring our state-of-the-art IP65 housing, and designed for lighting professionals, the Elite 120 PRO (IP65) gives you an incredible amount of power to work with (suitable for any size indoor or outdoor event, as well as landmark laser lighting).

The Elite 120 PRO (IP65) incorporates the very latest in laser diode technology and combine this together with meticulously crafted optical scanning systems featuring larger aperture mirrors on them, which help keep the beam’s profile razor tight over longer projection throws – we’re talking about visibility across the city sky, from several kilometers / miles away! Elite 120 PRO was made primarily for atmospheric effects. They can also perform basic laser mapping sequences, and simple text, graphics, and logos.

ELITE 120 PRO (IP65) lasers integrate the industry standard FB4 control and include a FREE copy of our powerful QuickShow software and MoboLaser app (for Apple and Android) to design, create, and control with. Using Elite 120 PRO FB4 (IP65), you can control your show content however you desire – be it from a lighting console, PC, or in stand-alone “auto” mode. Patch into other lighting networks as well, for seamless control of your lasers, lighting, and other effects. Elite 120 PRO (IP65) is a true beast of a machine, offering a great return on investment, and truly made to wow audiences witnessing this laser in action.

Unity ELITE PRO FB4 IP65 60 & 100 | Up to 100W Laser Projectors

What is in the Package

Laser projector
Laser control software
Heavy-duty flight case
Mains cable
Ethernet cable
E-STOP Remote
E-STOP XLR cable
Set of 4 Safety keys
Interlock [for the US only]
Quality certificate

Specifications

Product Name: Unity ELITE PRO 120 FB4 (IP65)
Type Of Laser: Full-colour, Semiconductor diode laser system
Guaranteed Optical Output: >120W
Suitable For: Lighting professionals: Stadiums, arenas. Huge outdoor shows. City scape and landmark projections (visibility for kilometers / miles away)
Control Signal: Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]
Scanning System: 25,000 points per second @ 8°
Scan Angle: 40°
Safety: Fully complies with the latest EN 60825-1 and FDA regulations
Weight: 58kg
Package Includes: Laser projector w/ FB4 DMX, IP65 housing, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, outdoor RJ45 connectors, manual, quickstart guide, variance card
R | G | B [mW]: 30,000 | 40,000 | 50,000
Beam Size [mm]: 7.5 x 7.5
Beam Divergence: <1.2mrad [Full Angle]
Modulation: Analog 100kHz
Power Requirements: 100-230V/50Hz
Consumption: Max. 1600W
Operation Temperature: (-10°C) - 45°C
Ingress Rating: IP65

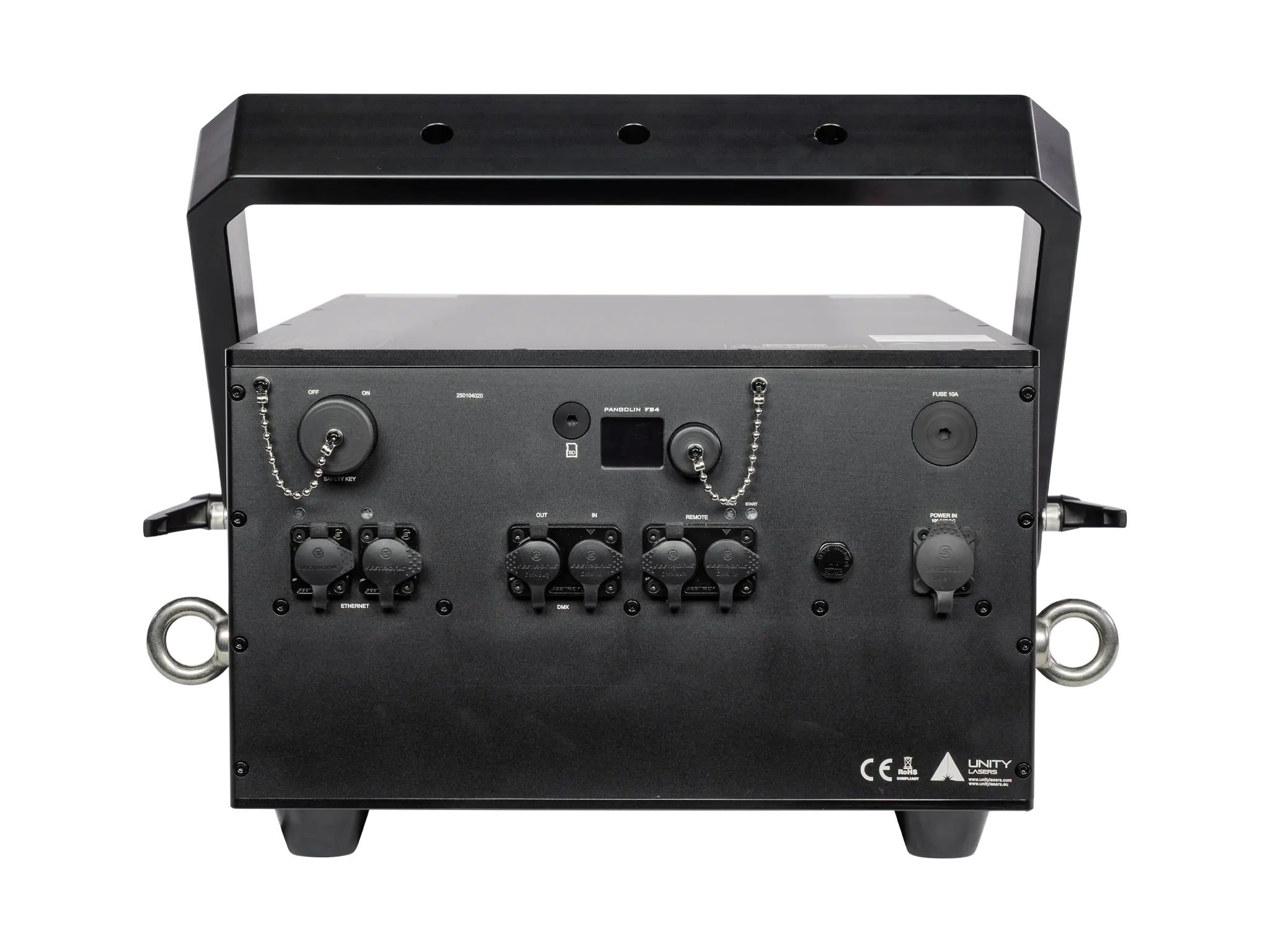

System Features: All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out
Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate
Notice: *Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output
Dimensions [mm]: Depth: 705 | Width: 576 | Height: 273
