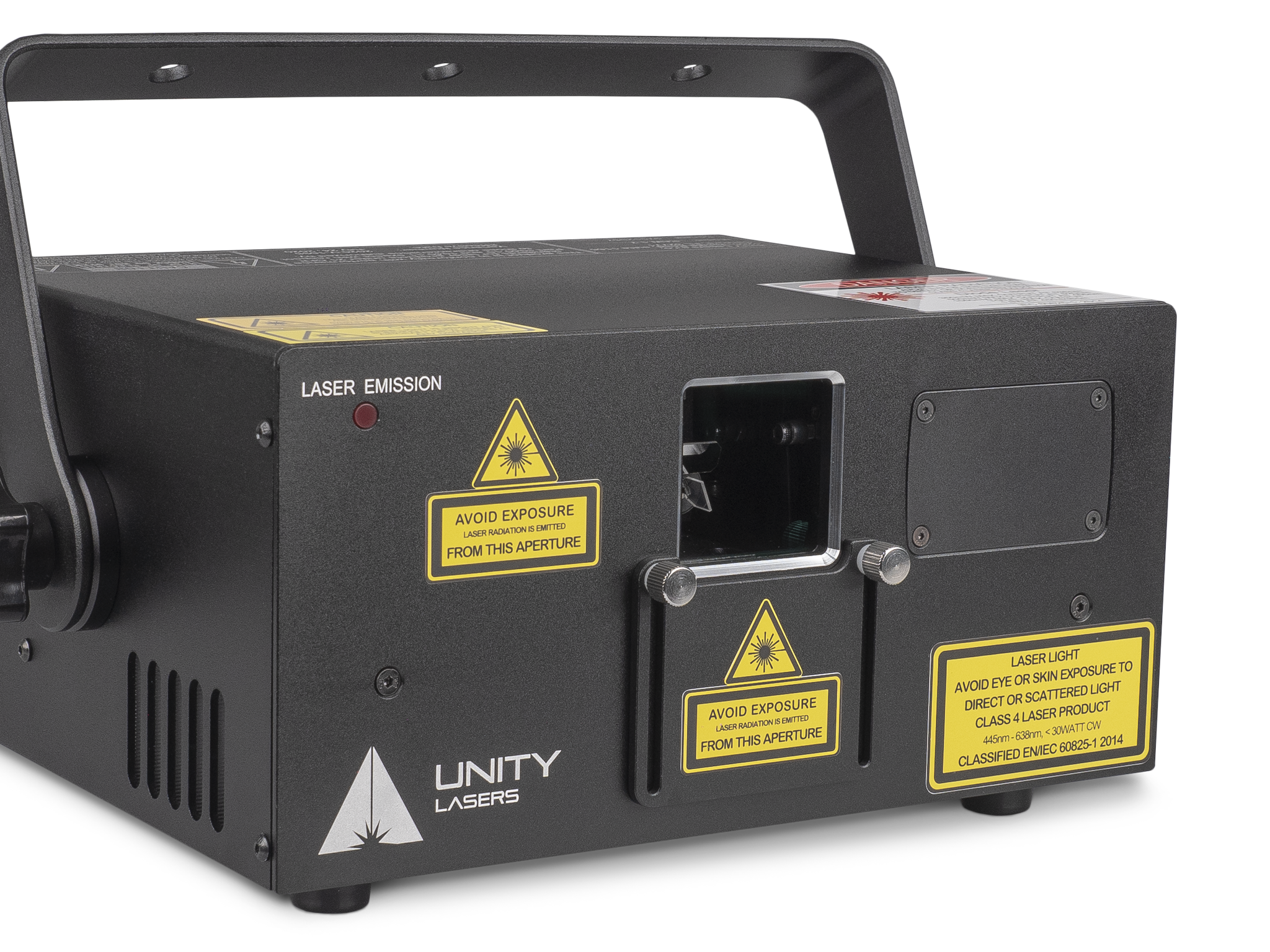

Unity RAW 1.7 front facing left
Unity RAW 1.7 front facing right
Unity RAW 1.7 back facing left
Unity RAW 1.7 back facing right
Unity RAW 1.7 laser graphics_1
Unity RAW 1.7 fill colour laser beams_1
Unity RAW 1.7 laser graphics_2
Unity RAW 1.7 red and orange laser beams_2
Unity RAW 1.7 laser graphics abstract_1
Unity RAW 1.7 blue laser beams_3
Unity RAW 1.7 laser graphics_3
Unity RAW 1.7 RGB laser beams_1
Unity RAW 1.7 laser graphics_4
  • Load image into Gallery viewer, Unity RAW 1.7 front facing left
  • Load image into Gallery viewer, Unity RAW 1.7 front facing right
  • Load image into Gallery viewer, Unity RAW 1.7 back facing left
  • Load image into Gallery viewer, Unity RAW 1.7 back facing right
  • Load image into Gallery viewer, Unity RAW 1.7 laser graphics_1
  • Load image into Gallery viewer, Unity RAW 1.7 fill colour laser beams_1
  • Load image into Gallery viewer, Unity RAW 1.7 laser graphics_2
  • Load image into Gallery viewer, Unity RAW 1.7 red and orange laser beams_2
  • Load image into Gallery viewer, Unity RAW 1.7 laser graphics abstract_1
  • Load image into Gallery viewer, Unity RAW 1.7 blue laser beams_3
  • Load image into Gallery viewer, Unity RAW 1.7 laser graphics_3
  • Load image into Gallery viewer, Unity RAW 1.7 RGB laser beams_1
  • Load image into Gallery viewer, Unity RAW 1.7 laser graphics_4

Specifications

Product Name: Unity RAW 1.7
Type Of Laser: Full-colour, Semiconductor diode laser system
Guaranteed Optical Output: >1700mW
Suitable For: Small to medium indoor/outdoor laser shows and Laser graphic displays
Control Signal: ILDA - We recommend Pangolin FB3QS and QuickShow
Scanning System: 25,000 points per second @ 8°
Scan Angle: 50°
Safety: Fully complies with the latest EN 60825-1, and FDA regulations
Weight: 5,3kg
Package Includes: Power cord, 10M ILDA signal cable, E-STOP box with 10M cable, Set of 4 safety keys, 3-pin interlock bypass plug, User guide.
R | G | B [mW]: 400 | 600 | 1000
Beam Size [mm]: 5 x 3
Beam Divergence: <1.1mrad [Full Angle]
Modulation: Analog 50kHz
Power Requirements: 100-230V/50Hz
Consumption: Max. 100W
Operation Temperature: 10-40 °C
Ingress Rating: IP 20
System Features: All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, daisy chain of emergency STOP signal for multiple system "one-hit" operation.
Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
Notice: *Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.
Dimensions [cm]: Length: 238
Width: 126
Height: 192
Show Full Specification

Description

Overview

The RAW 1.7 is a full color RGB, diode-based laser systems, designed for clients who need impactful aerial beam effects, with the ability to also produce laser graphics, logos and text.

Applications

The RAW Series is perfect for DJs, nightclubs and entertainment venues, where you need an impactful and easy to use laser system, at an economical price point. It is suitable for venues up to 2,000 people in capacity.

Control

RAW Series lasers are incredibly easy to setup and use. And can easily be controlled via ILDA, or via DMX / ArtNET (with Pangolin software).

  • We recommend using the Pangolin FB3QS or FB4 control hardware, with QuickShow software.
  • Try a FREE demo, and see it in action here: http://www.pangolin.com/quickshow.

What’s in the box

The RAW 1.7 includes all of your main accessories, FREE.

  • Laser projector
  • ILDA cable
  • E-stop safety system and E-stop cables
  • Interlocks
  • Keys
Show Full Description
