Unity ELITE 20 PRO FB4 (IP65)

Name: Unity ELITE 20 PRO FB4 (IP65)
Brand: end user
Price: 10998.0 EUR
Availability: InStock

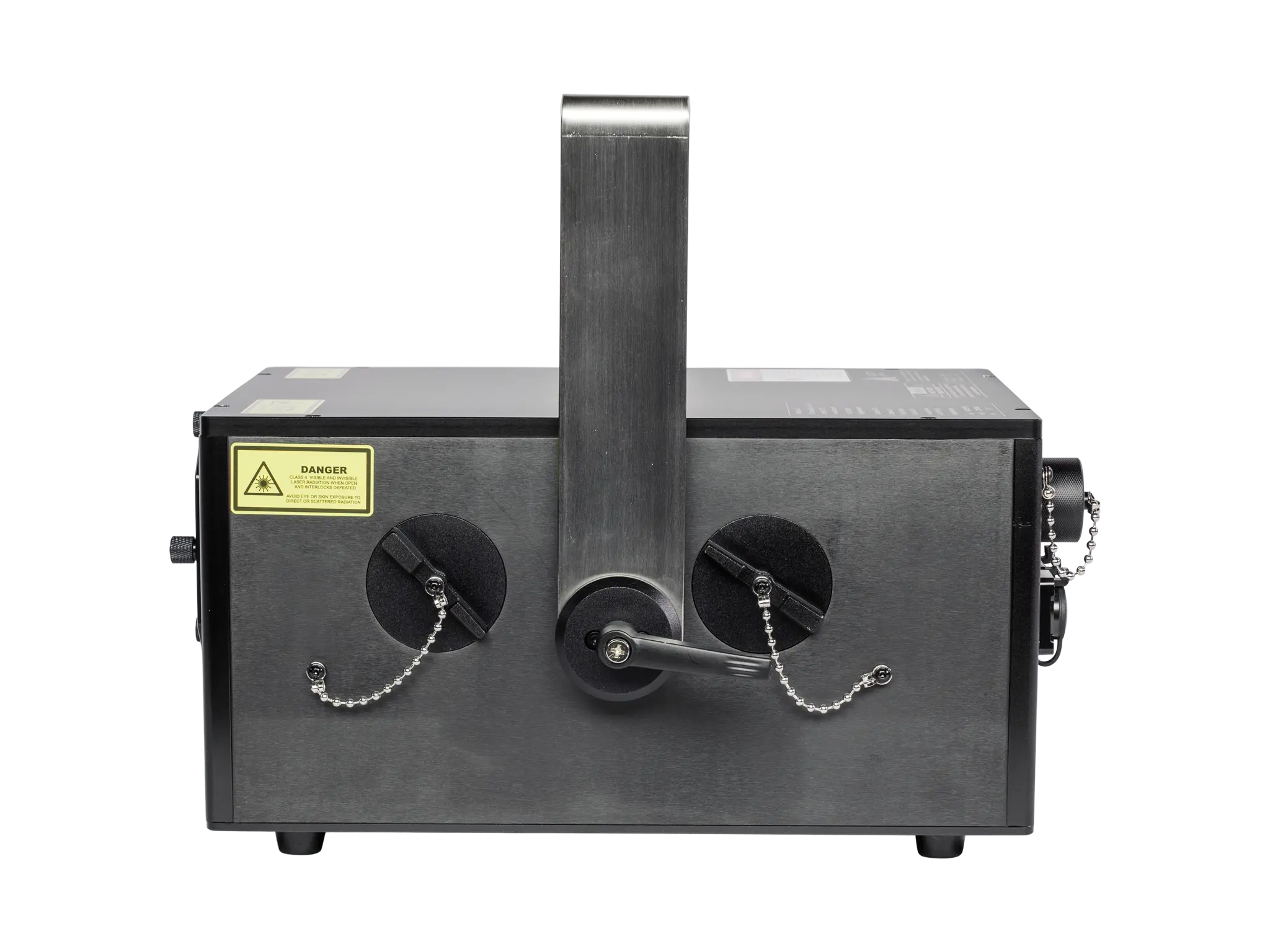

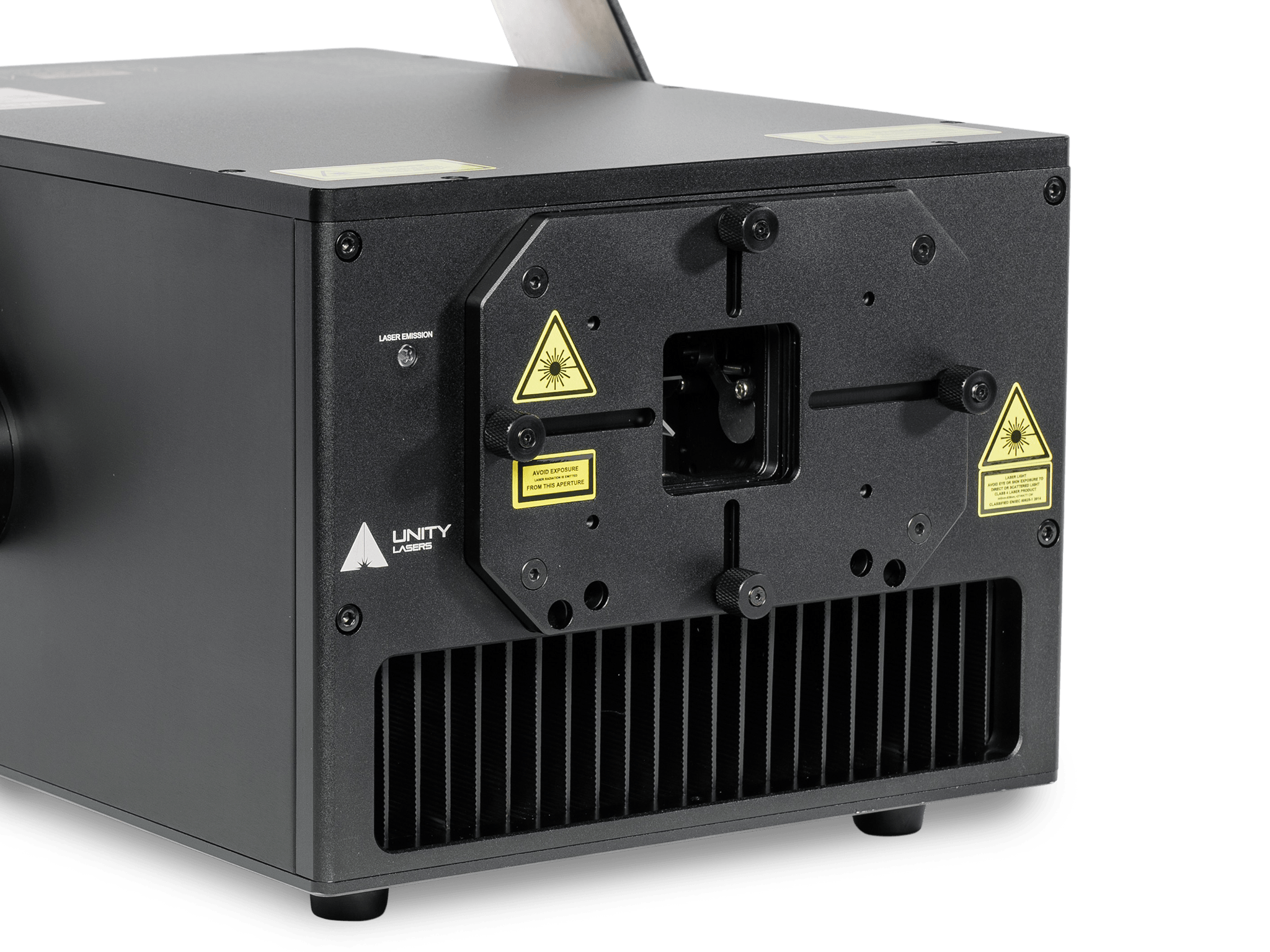

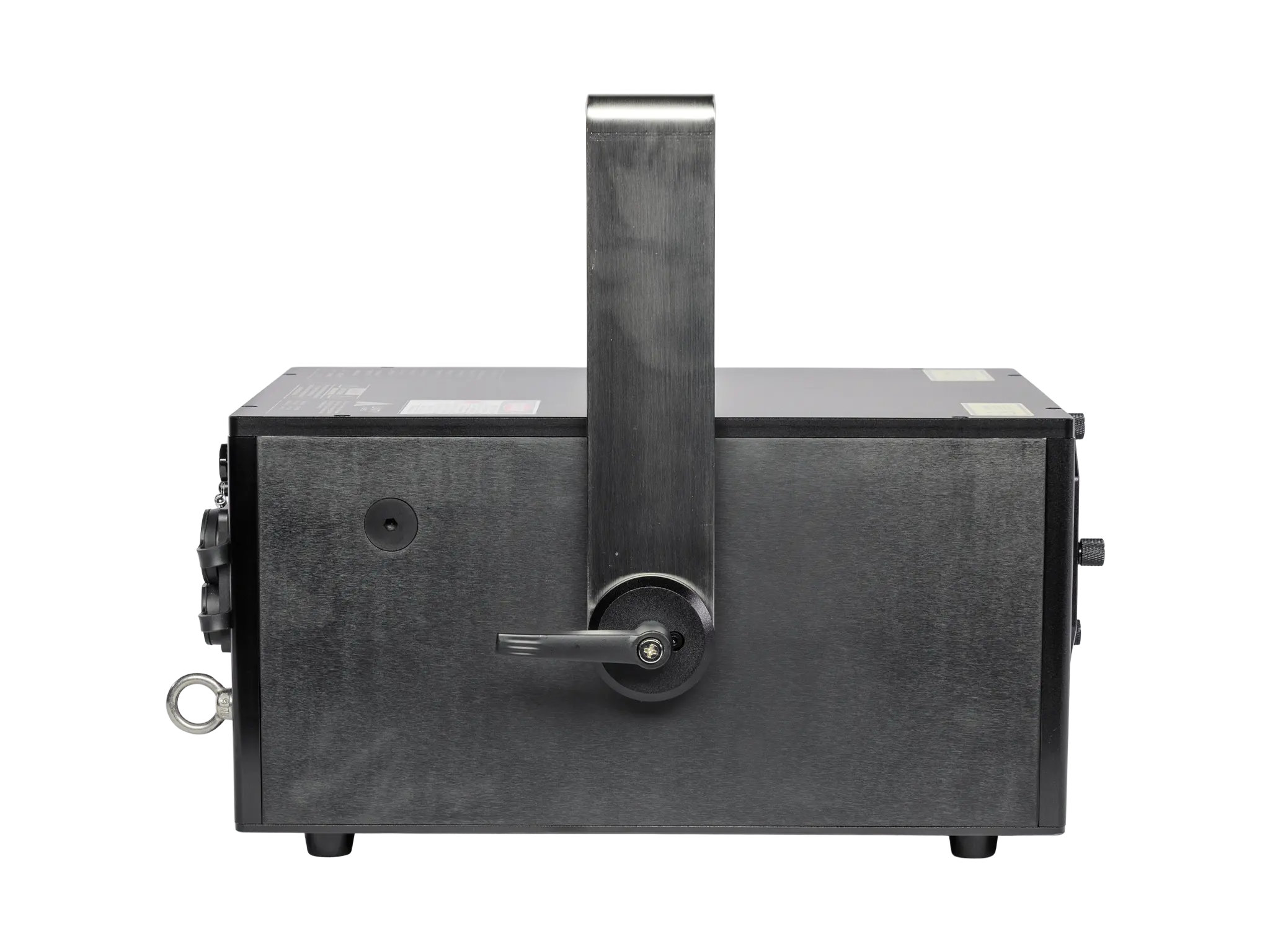

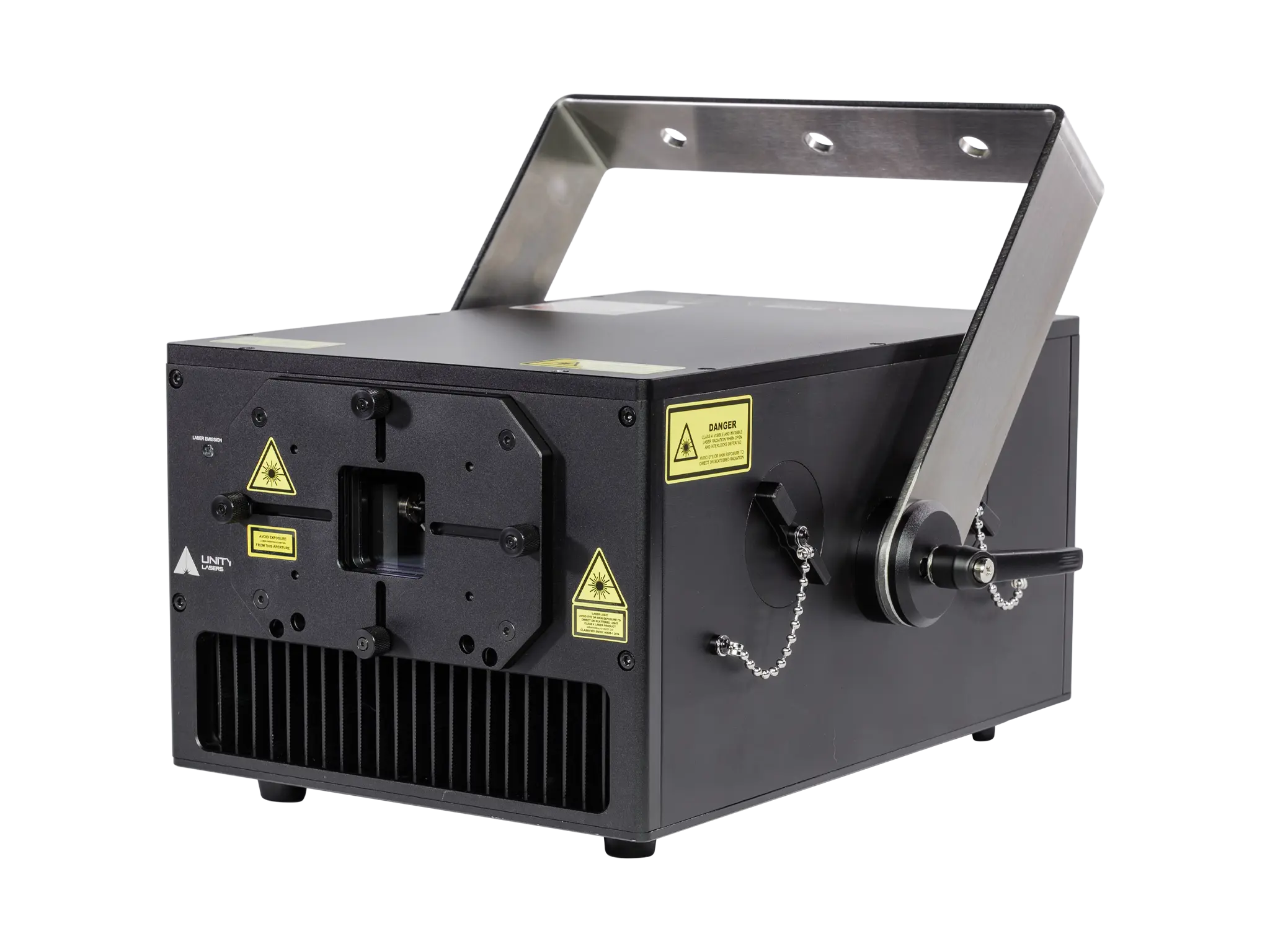

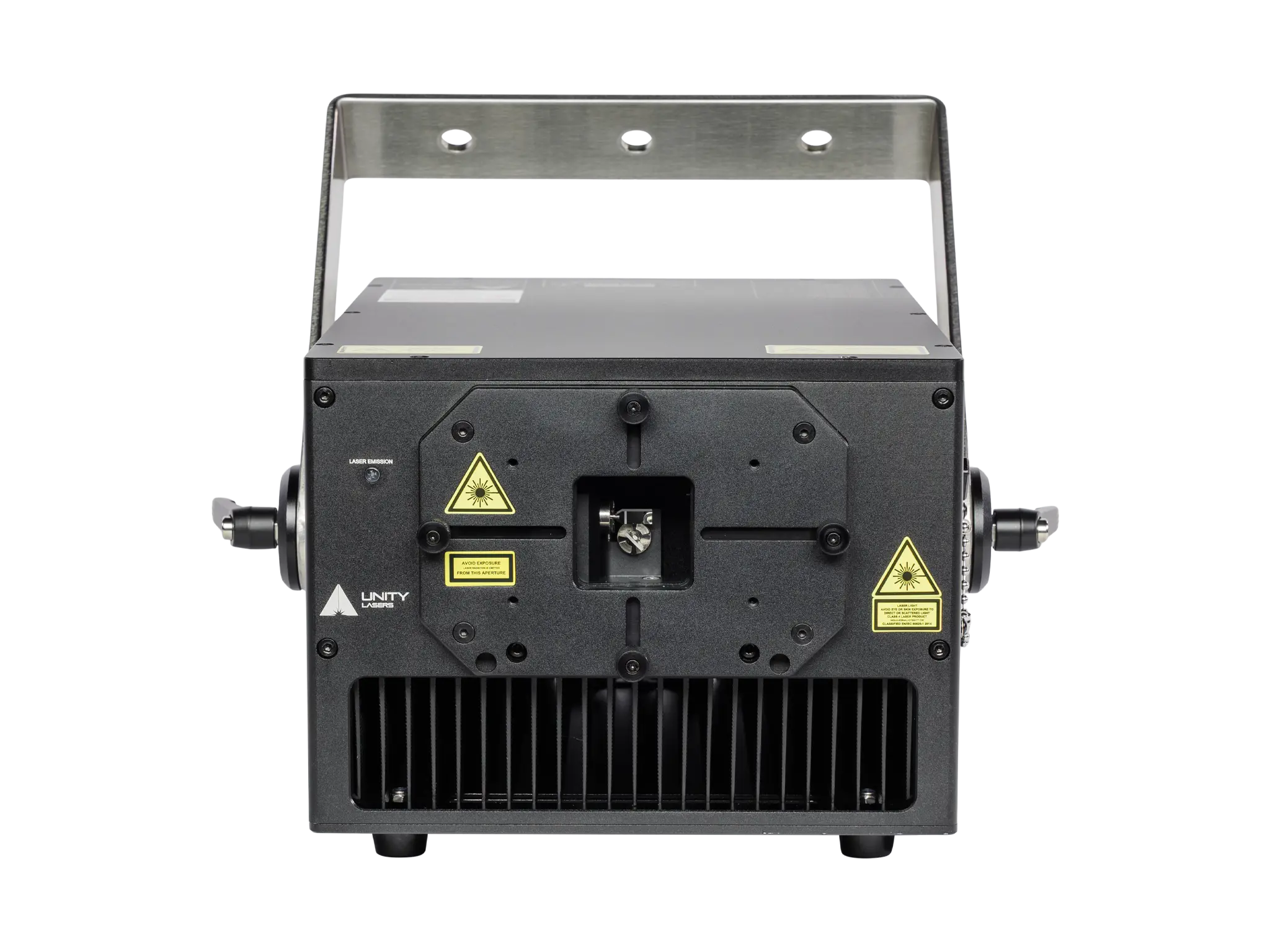

Unity ELITE 20 PRO FB4 (IP65) laser is our top-of-the-range laser projector with the integrated Pangolin FB4 media server and waterproof housing.

The Elite 20 PRO FB4 (IP65) laser is ideal for venues, lighting designers, SFX and rental companies who prefer direct control of their lasers over DMX and Artnet.

Unity ELITE uses semiconductor laser diodes. It is a full-colour RGB laser with analogue modulation integrated into robust, rain-proof housing.
It is suitable for permanent installations in clubs, touring, and rental situations.

The Elite 20 PRO FB4 (IP65) is suitable for large venues and outdoor events.

What is in the Package

Laser projector

Laser control software

Heavy-duty flight case

Mains cable

Ethernet cable

E-STOP Remote

E-STOP XLR cable

Set of 4 Safety keys

Interlock [for the US only]

Quality certificate

Specifications

Product Name:	Unity ELITE PRO 20 FB4 (IP65)
Type Of Laser:	Full-colour, Semiconductor diode laser system
Guaranteed Optical Output:	>22W
Suitable For:	Lighting professionals: arena sized venues (up to 30,000 people), outdoor shows. Beam show, text, graphic, and mapping capable
Control Signal:	Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA \| PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]
Scanning System:	40,000 points per second @ 8°
Scan Angle:	50°
Safety:	Fully complies with the latest EN 60825-1 and FDA regulations
Weight:	26kg
Package Includes:	Laser projector w/ FB4 DMX, IP65 housing, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, outdoor RJ45 connectors, manual, quickstart guide, variance card
R \| G \| B [mW]:	6,000\| 8,000 \| 8,000
Beam Size [mm]:	6 x 6
Beam Divergence:	<1mrad [Full Angle]
Modulation:	Analog 100kHz
Power Requirements:	100-230V/50Hz
Consumption:	Max. 1000W
Operation Temperature:	(-10°C) - 45°C
Ingress Rating:	IP65

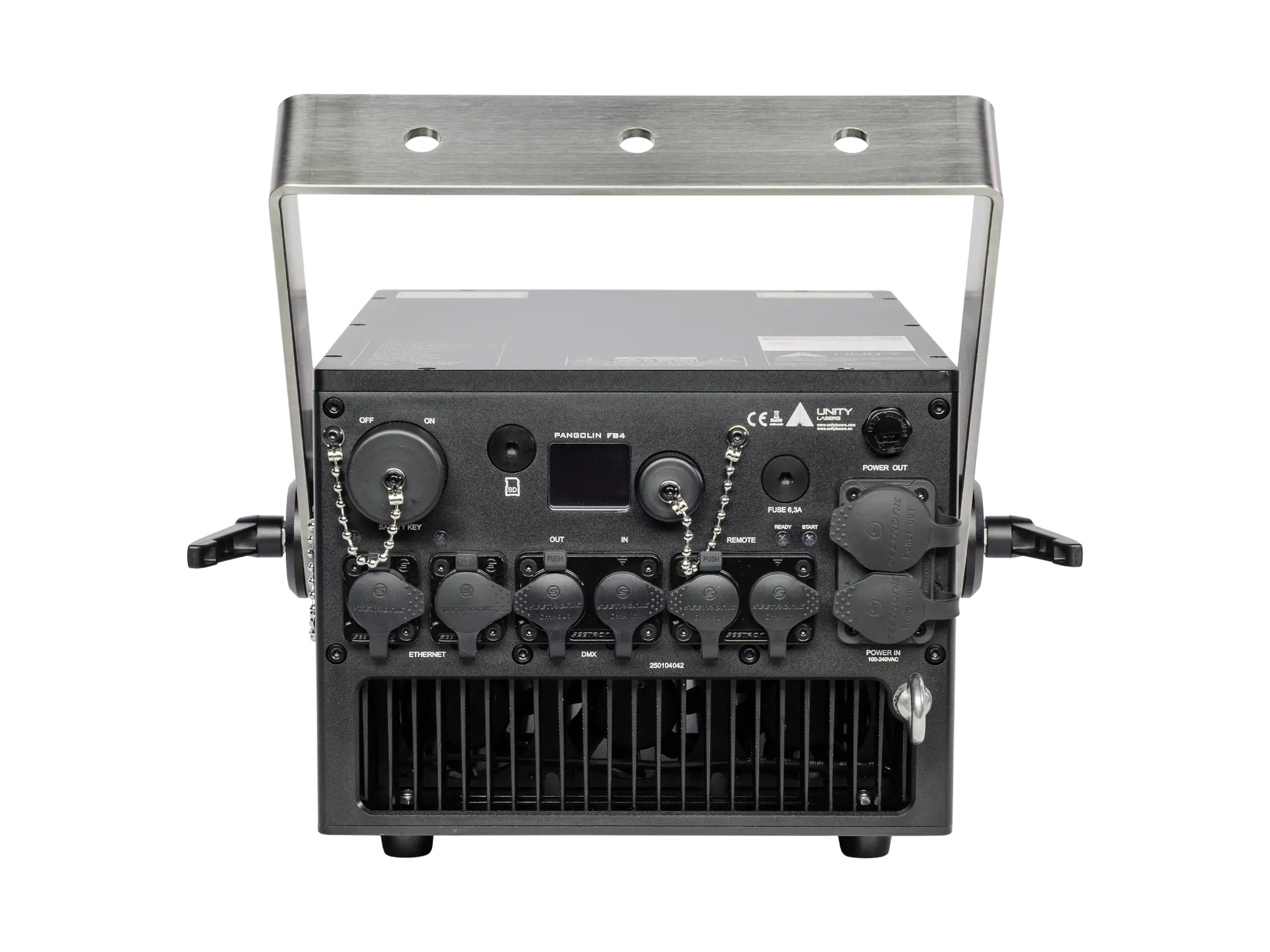

System Features:	All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out
Laser Safety Features:	Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate
Notice:	*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output
Dimensions [mm]:	Depth: 431 \| Width: 394 \| Height: 230
