Full-colour RGB
Up to 10 Watts
Entry-level
ILDA standard compatible
Sale price 3.139,00€ Regular price 3.304,00€

Unity RAW 10

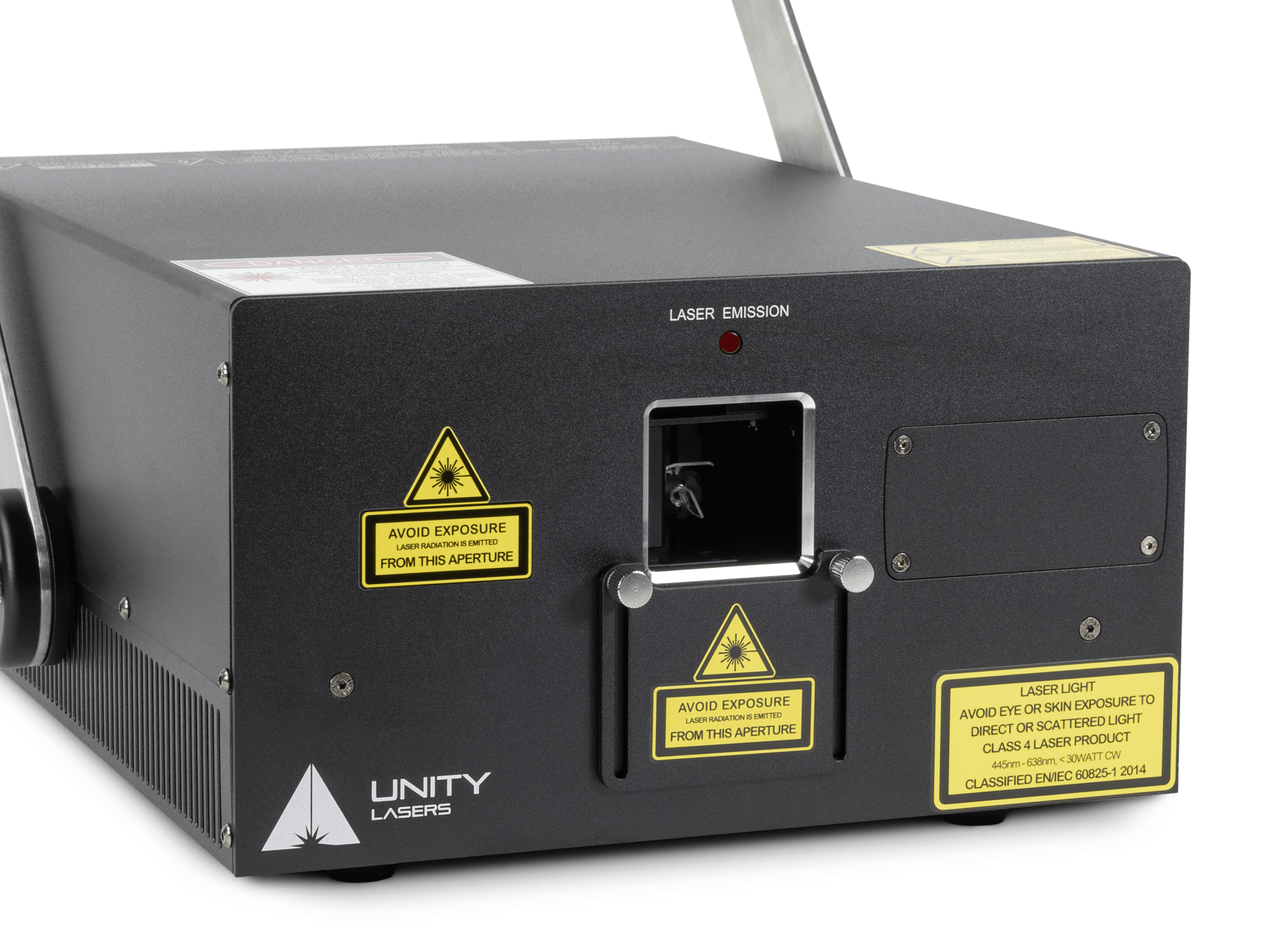

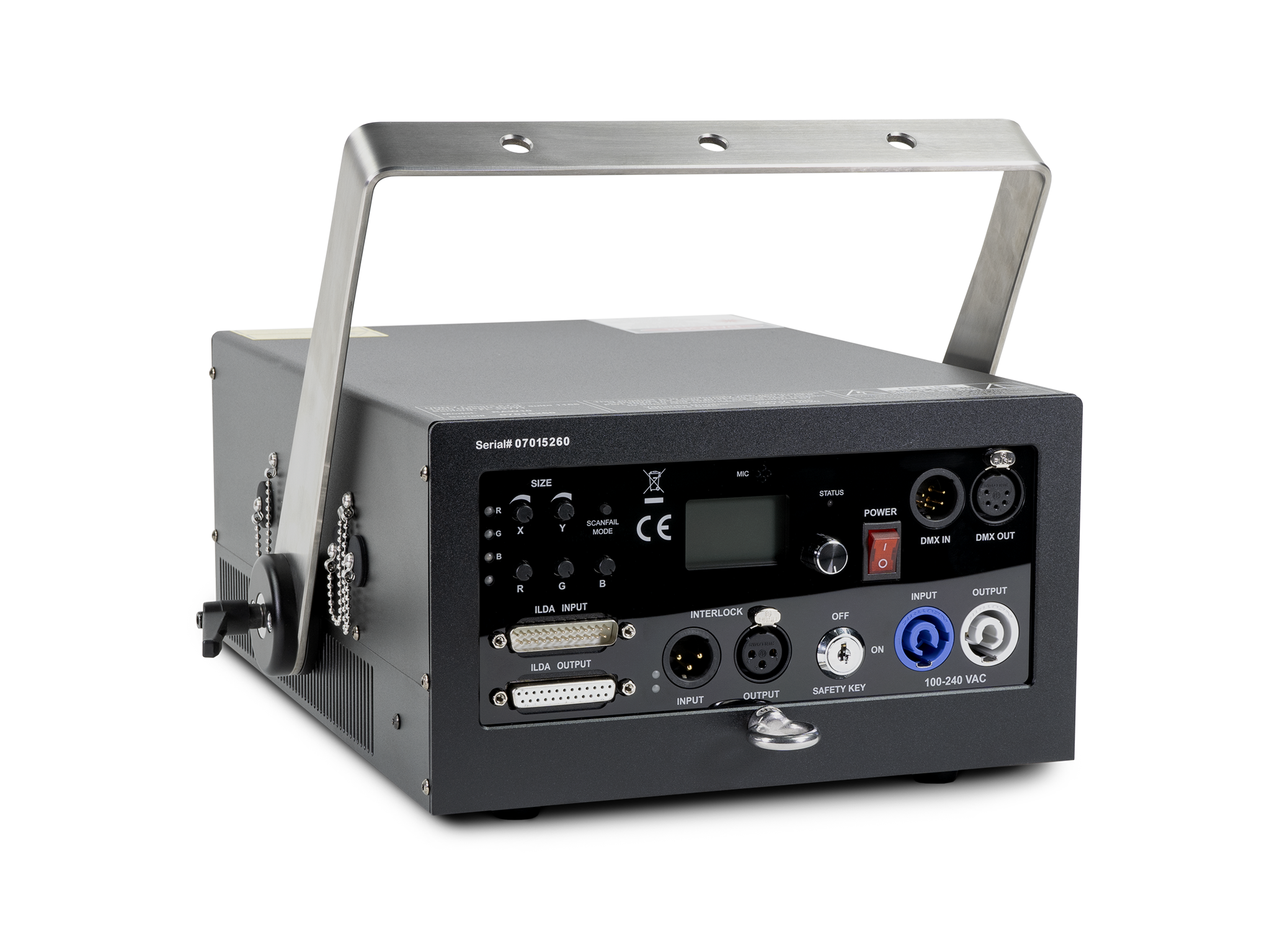

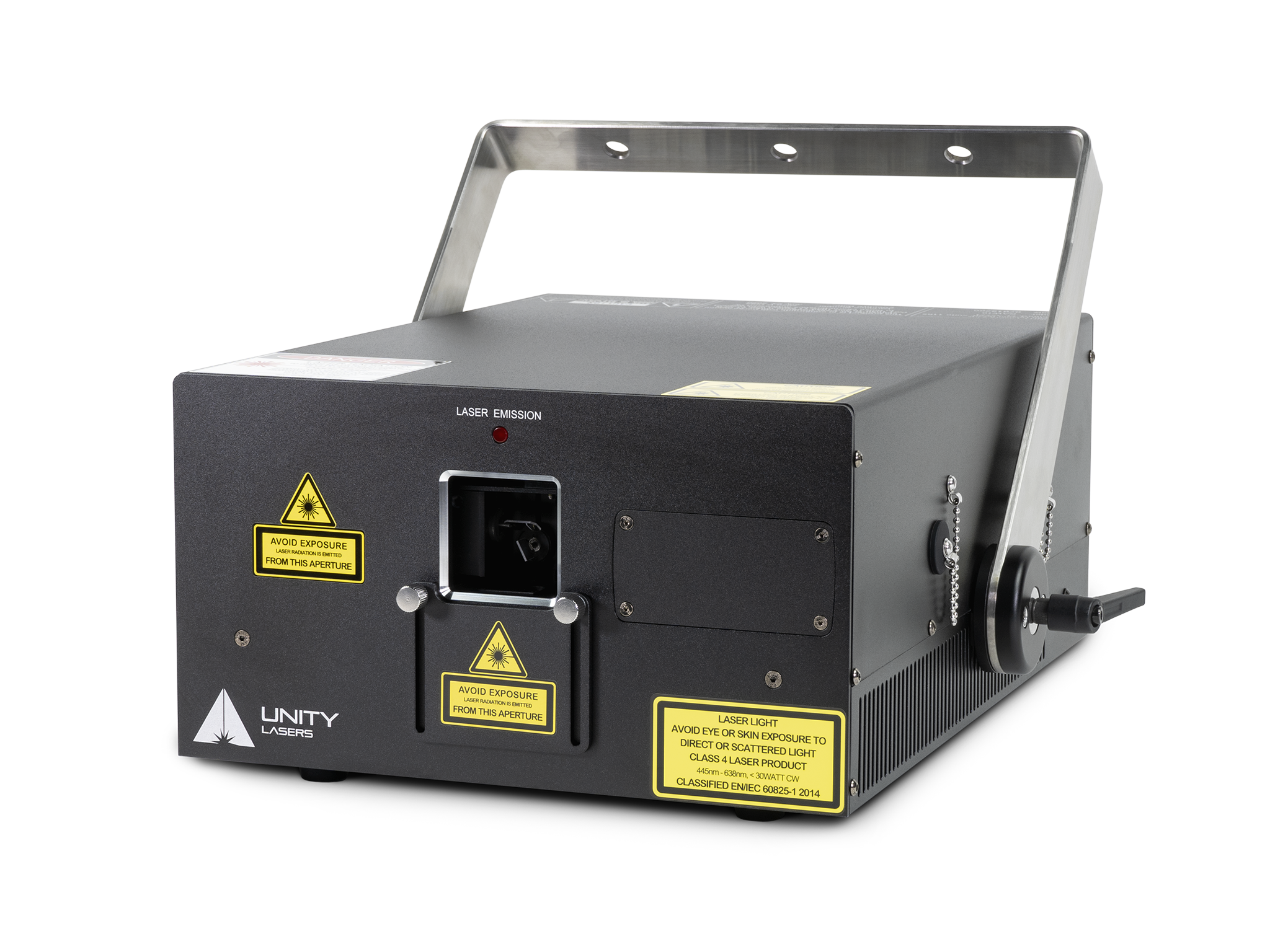

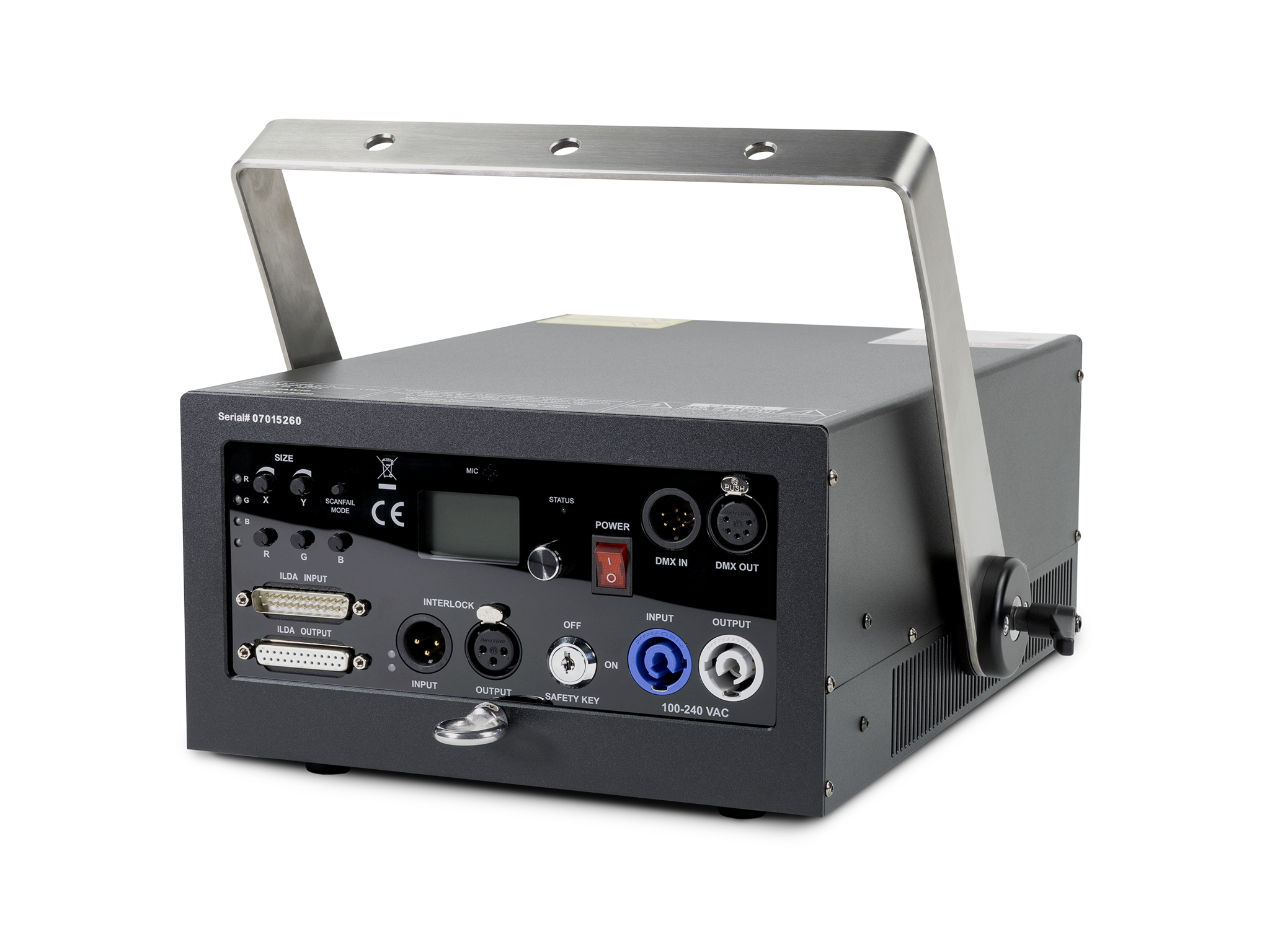

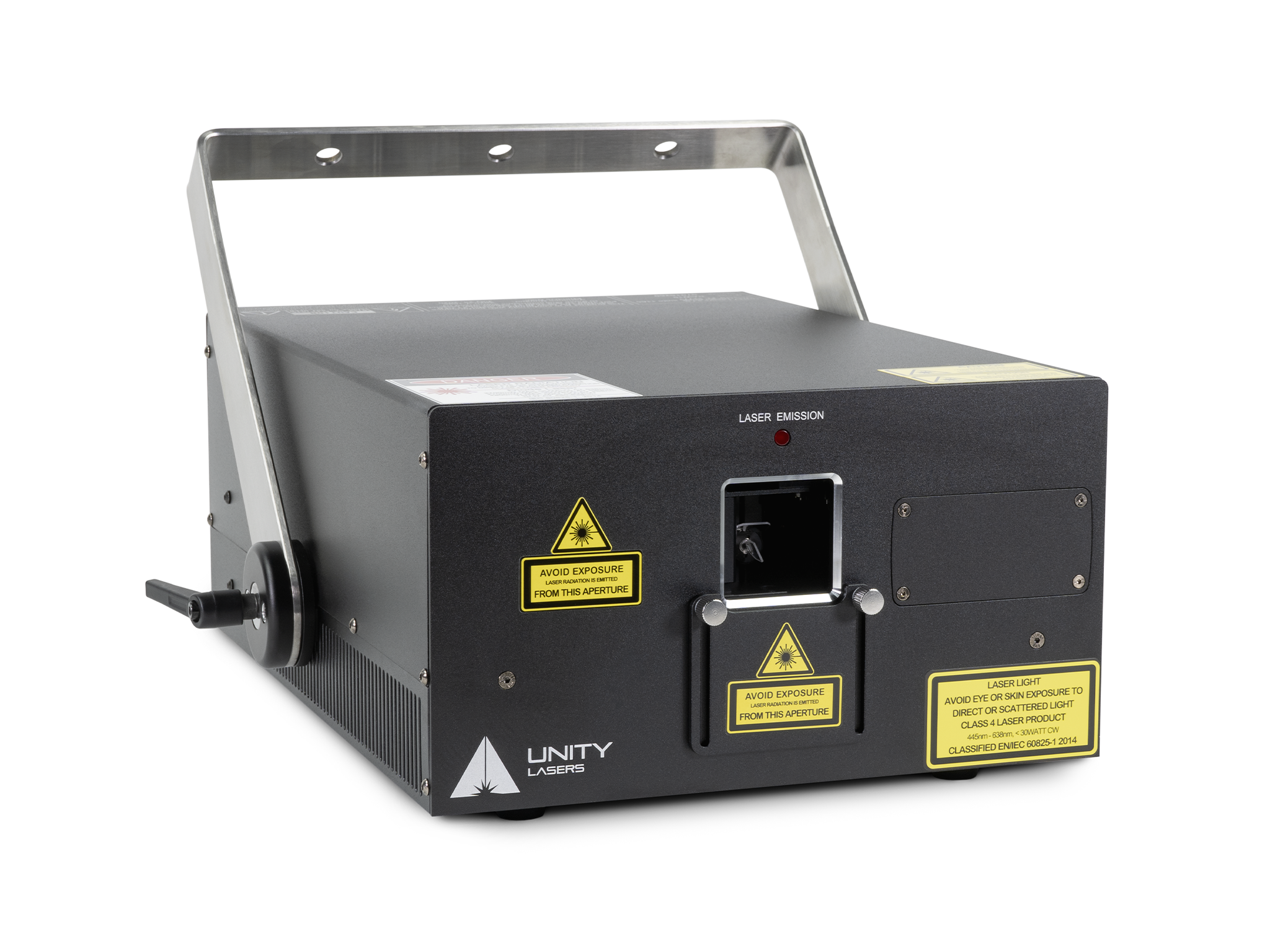

The Unity RAW 10 is a full-colour RGB diode-based ILDA-compatible laser projector. It is designed for those who want an economically friendly laser show system that has the power to produce beautiful aerial beam effects and high-resolution laser graphics, logos and text.

This RAW laser projector is suitable for consumers and home users.

VIDEO
Unity RAW 10W ILDA RGB Laser Projector

What is in the Package

Laser projector
Mains cable
ILDA cable
E-STOP Remote
E-STOP XLR cable
Set of 4 Safety keys
User guide PDF
Quality certificate
Interlock [for the US only]

Specifications

Product Name: Unity RAW 10
Type Of Laser: Full-colour, Semiconductor diode laser system
Guaranteed Optical Output: >10W
Suitable For: Large-sized venues and indoor events; laser shows and laser graphic displays
Control Signal: ILDA - We recommend Pangolin FB3QS and QuickShow
Scanning System: 30kpps @ 8°
Scan Angle: max. 50°
Safety: Fully complies with the latest EN 60825-1 and FDA regulations
Weight: 12kg
Package Includes: Laser projector, mains-power cable, 10M ILDA signal cable, E-STOP Remote with 10M XLR cable, set of 4 safety keys, 3-pin interlock bypass plug [for the US only], USB drive with a User Manual, QC certificate.
R | G | B [mW]: 2700 | 2700 | 4800
Beam Size [mm]: 5 x 3
Beam Divergence: <1.1mrad [Full Angle]
Modulation: Analog 50kHz
Power Requirements: 100-230V/50Hz
Consumption: Max. 350W
Operation Temperature: 10-40 °C
Ingress Rating: IP 20

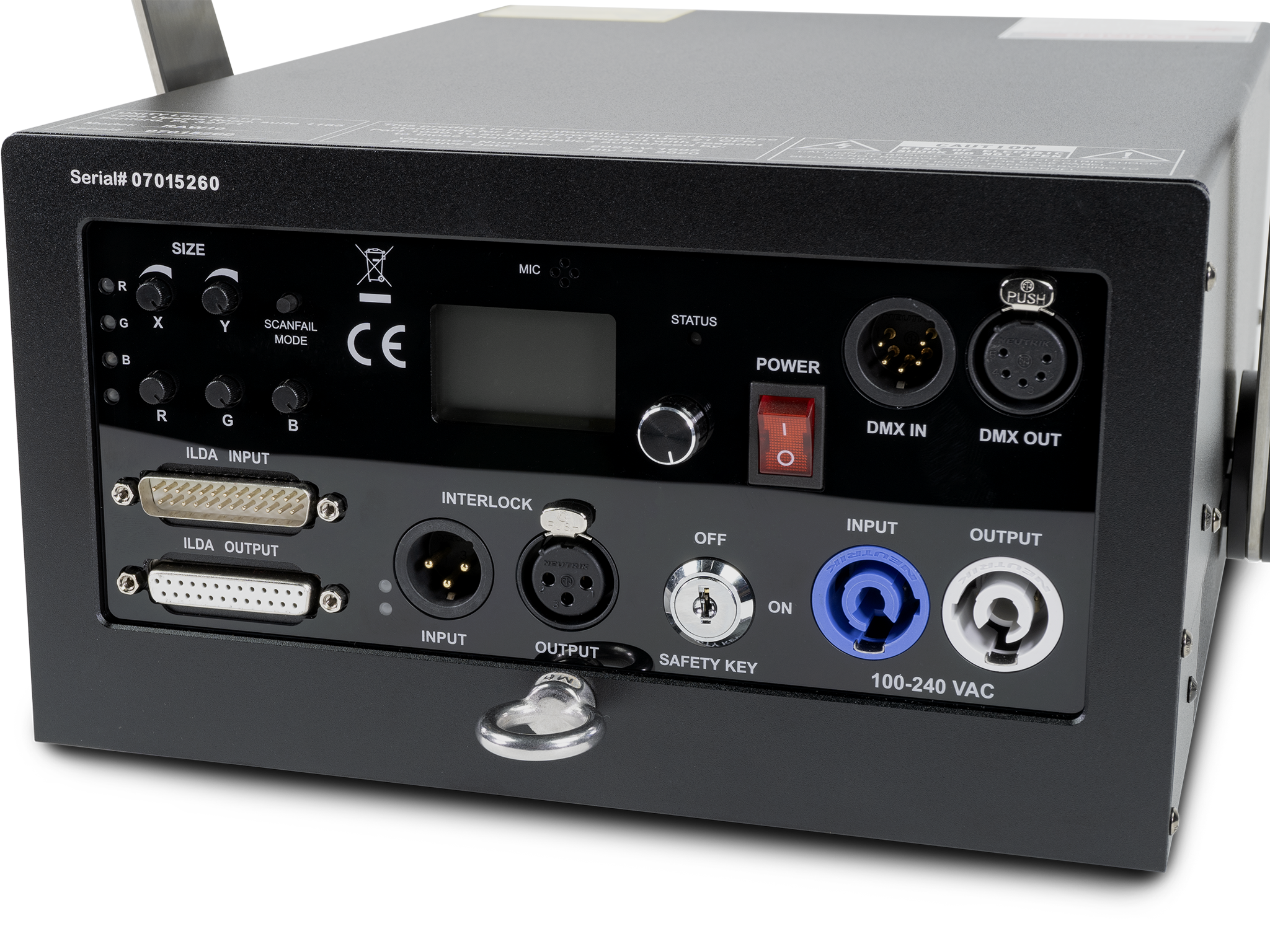

System Features: All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, Daisy chain of emergency STOP signal for multiple system "one-hit" operation.
Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
Notice: *Due to the Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
Dimensions [mm]: Depth: 238
Width: 247
Height: 148
