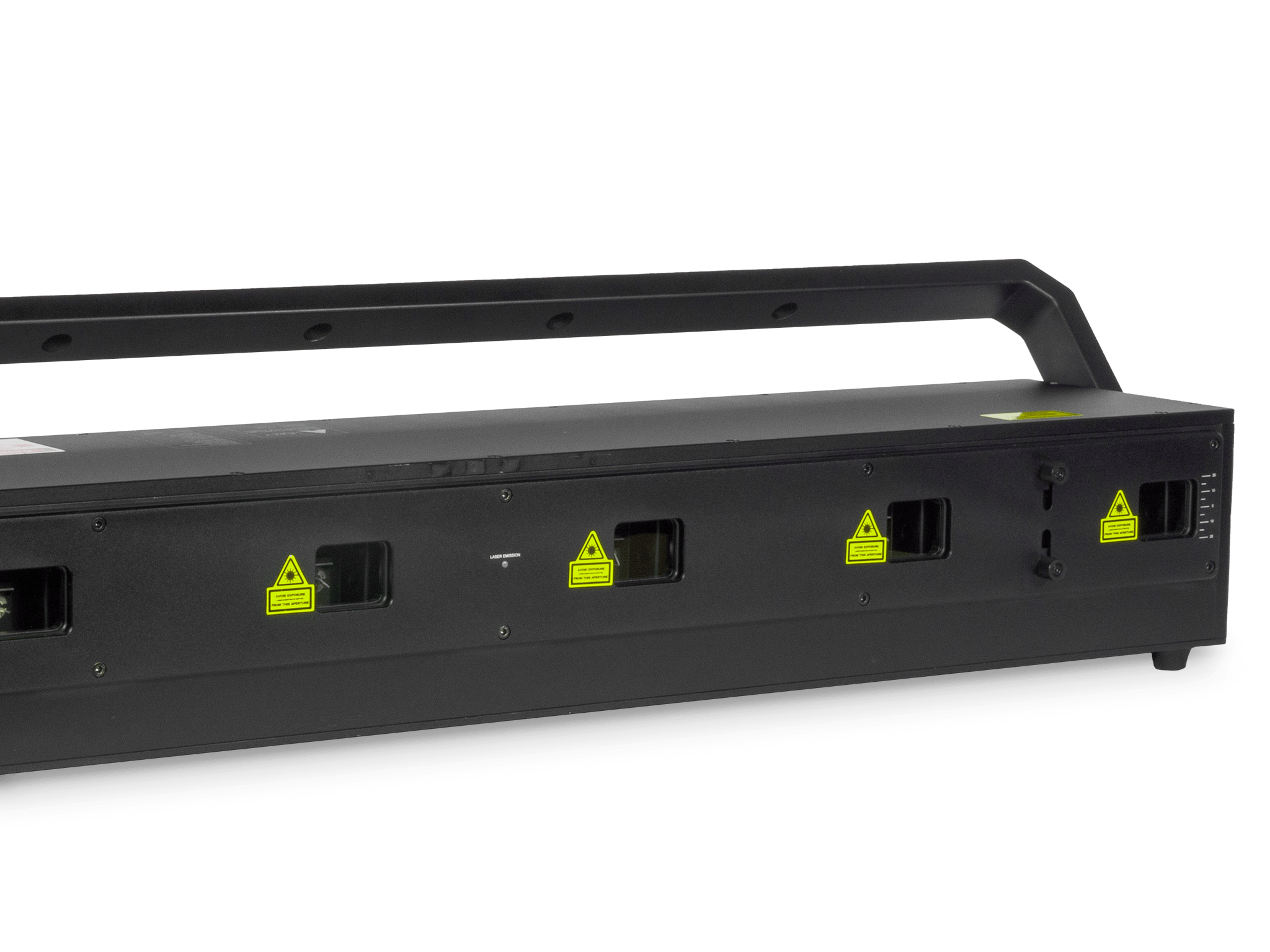

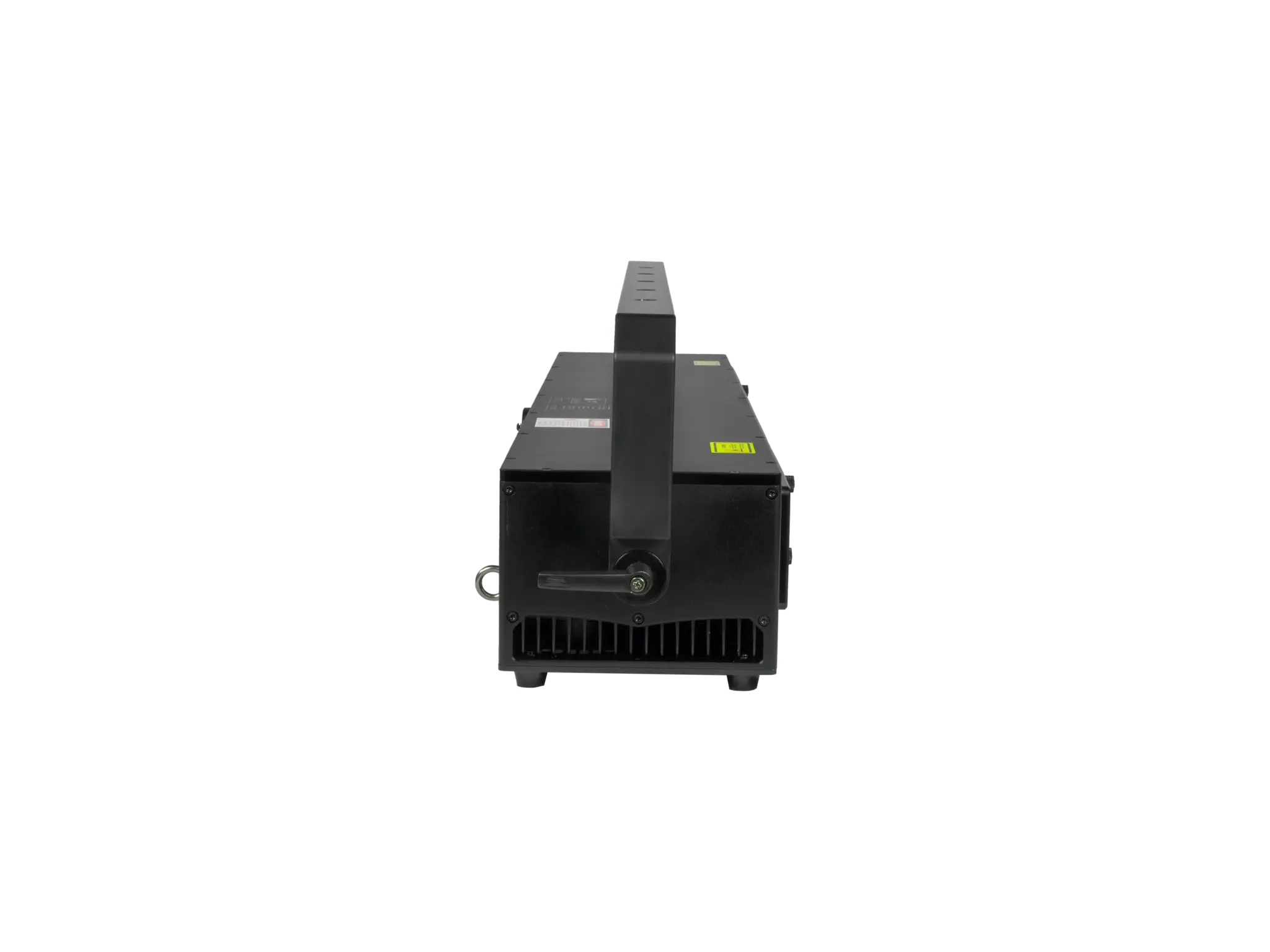

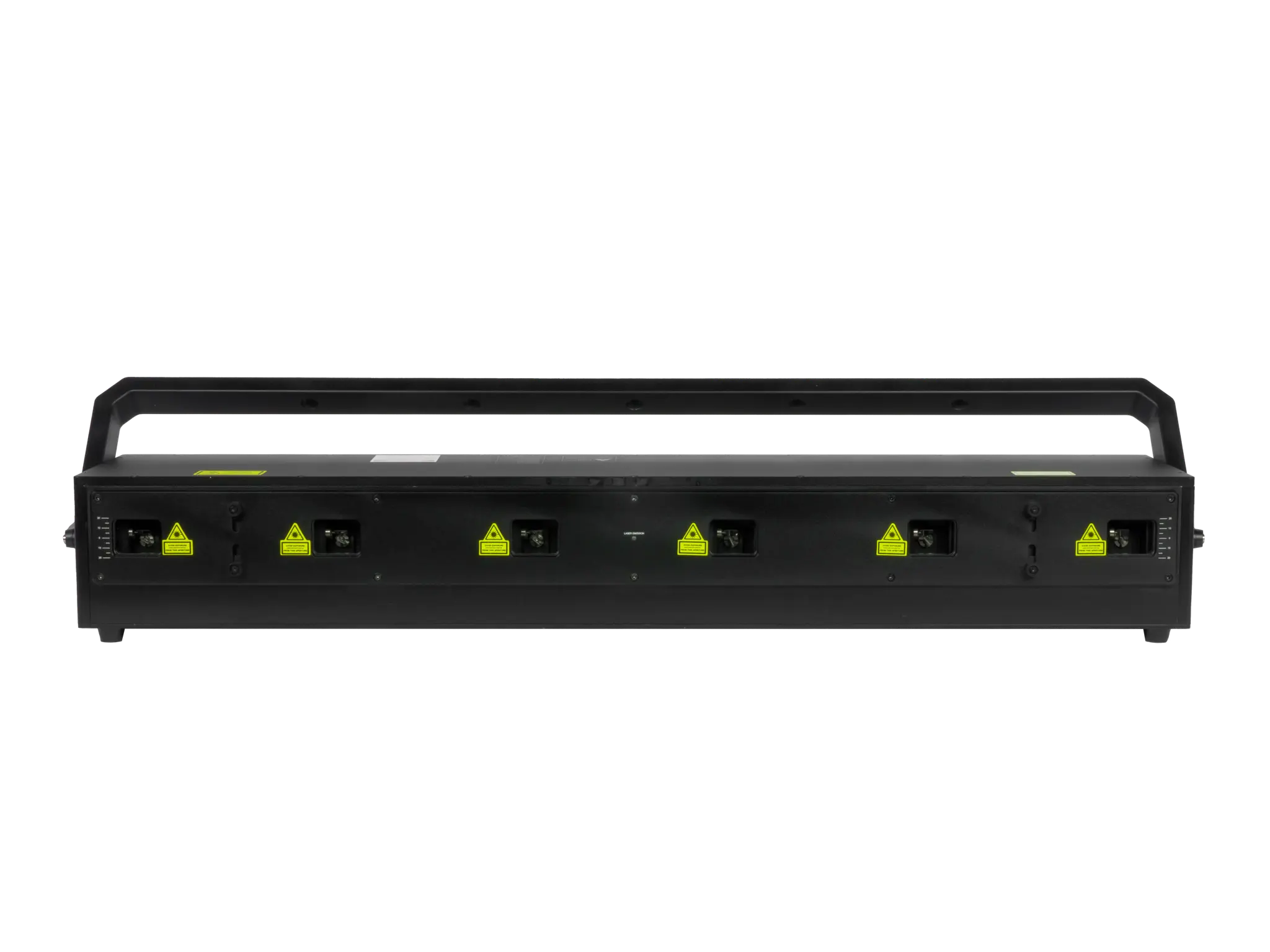

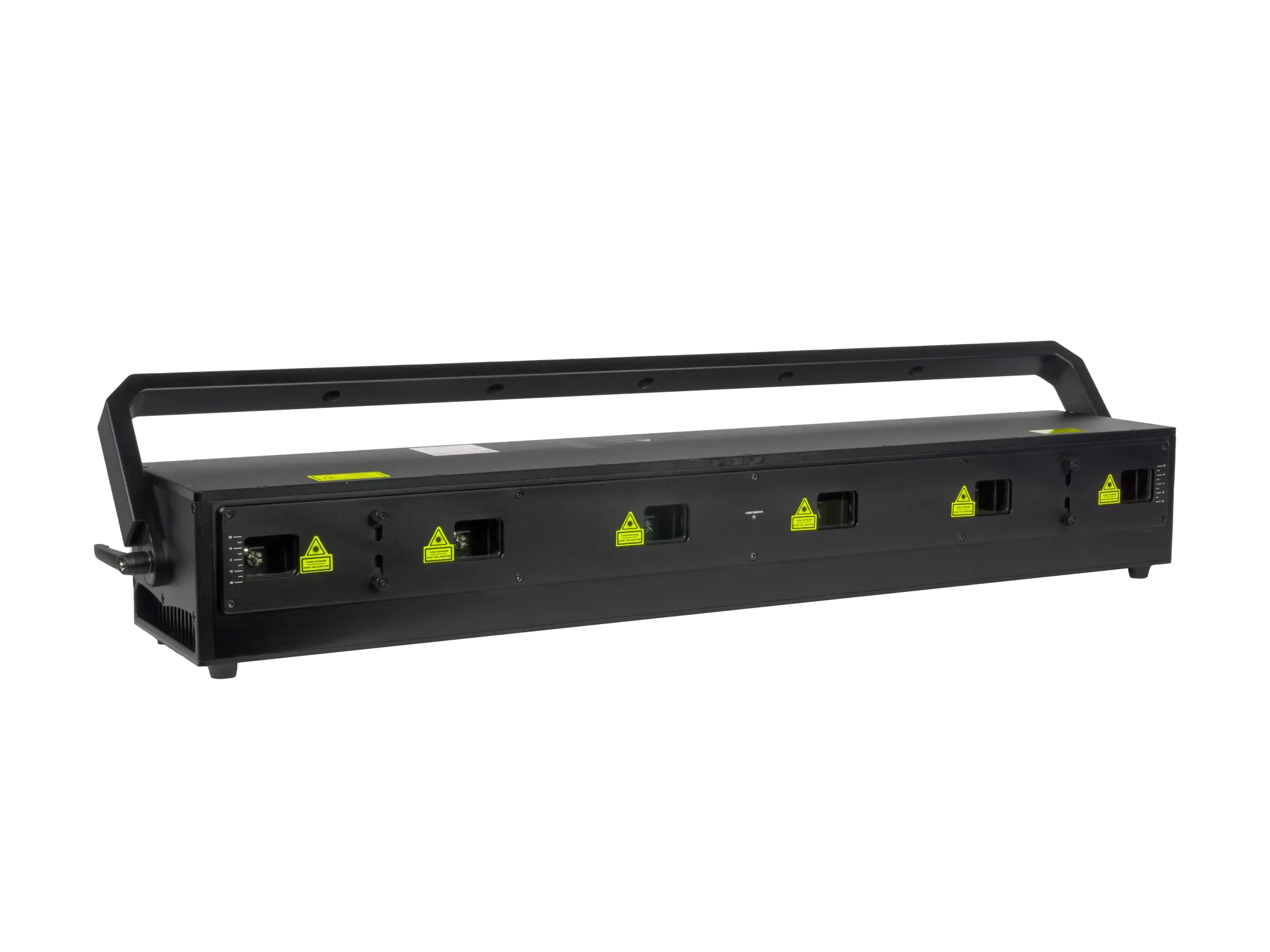

Unity LaserRay 13 RGB (XY-IP65)

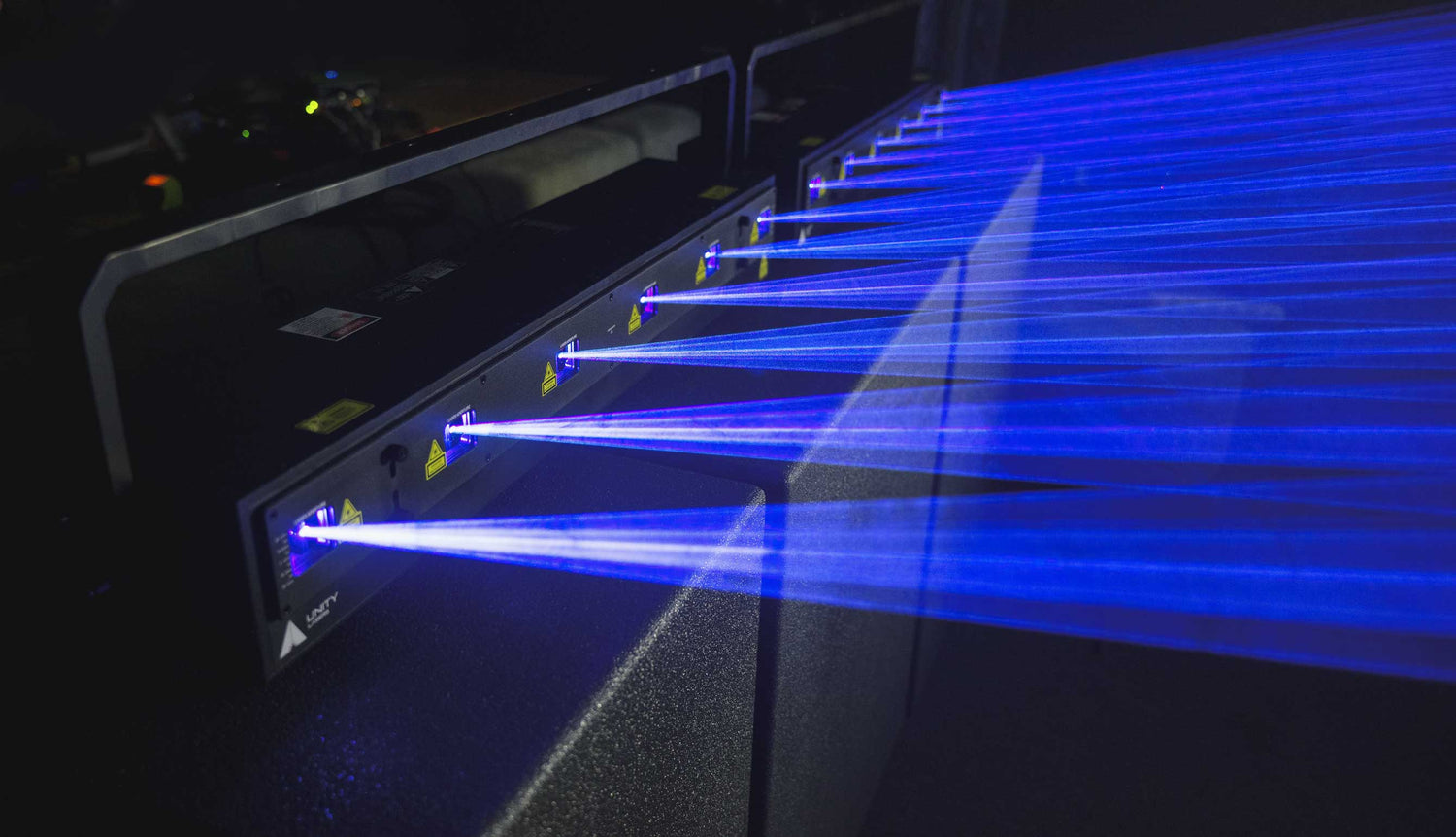

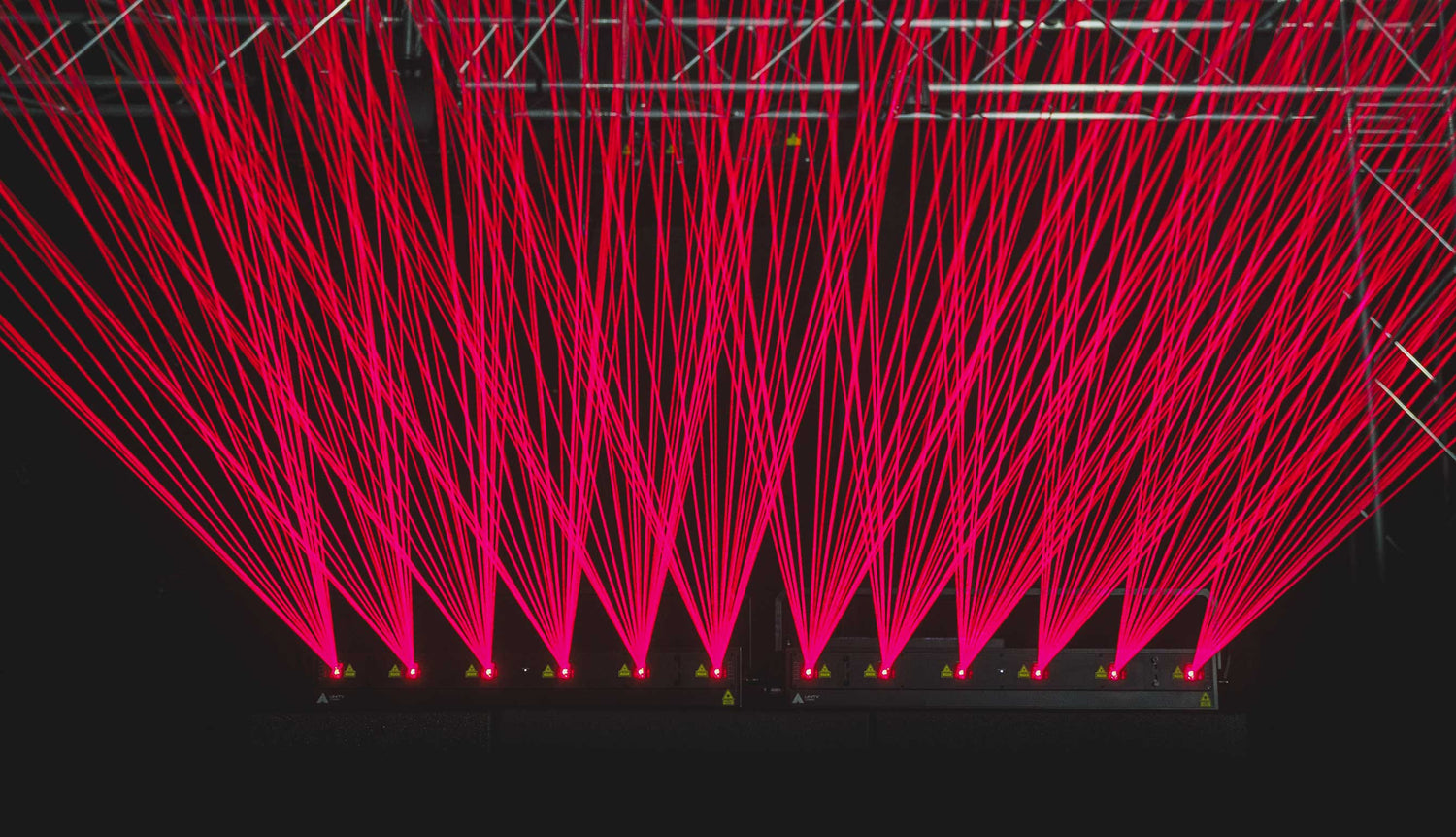

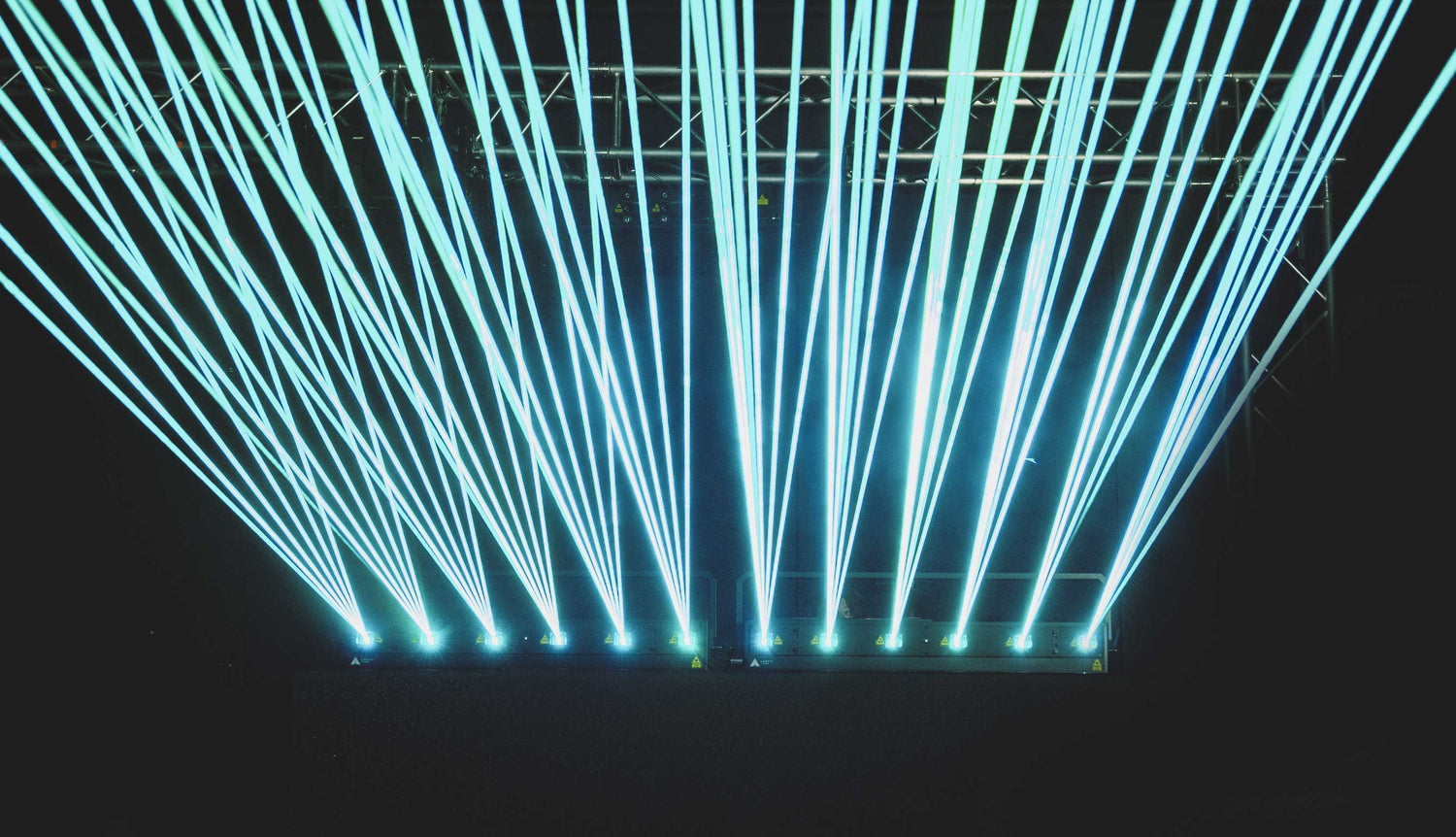

The LaserRay 13 RGB (XY-IP65) is a powerful multi-head laser array equipped high speed XY scanning technology, built inside a weatherproof IP65 housing made for life on the road. The Laser Ray 13 is designed for lighting professionals working on Stadiums, theaters, mega clubs, and small to medium outdoor shows.
With the integrated DMX control hardware and 35-channel profile assignment, control is a breeze. You can setup, design, and control the LaserRay 13 from the lighting console of your choice. So whether you are using the LaserRay by itself, or in addition to your existing laser setup, you can create breathtaking, impactful visual experiences.
What is in the Package
UNITY LaserRay

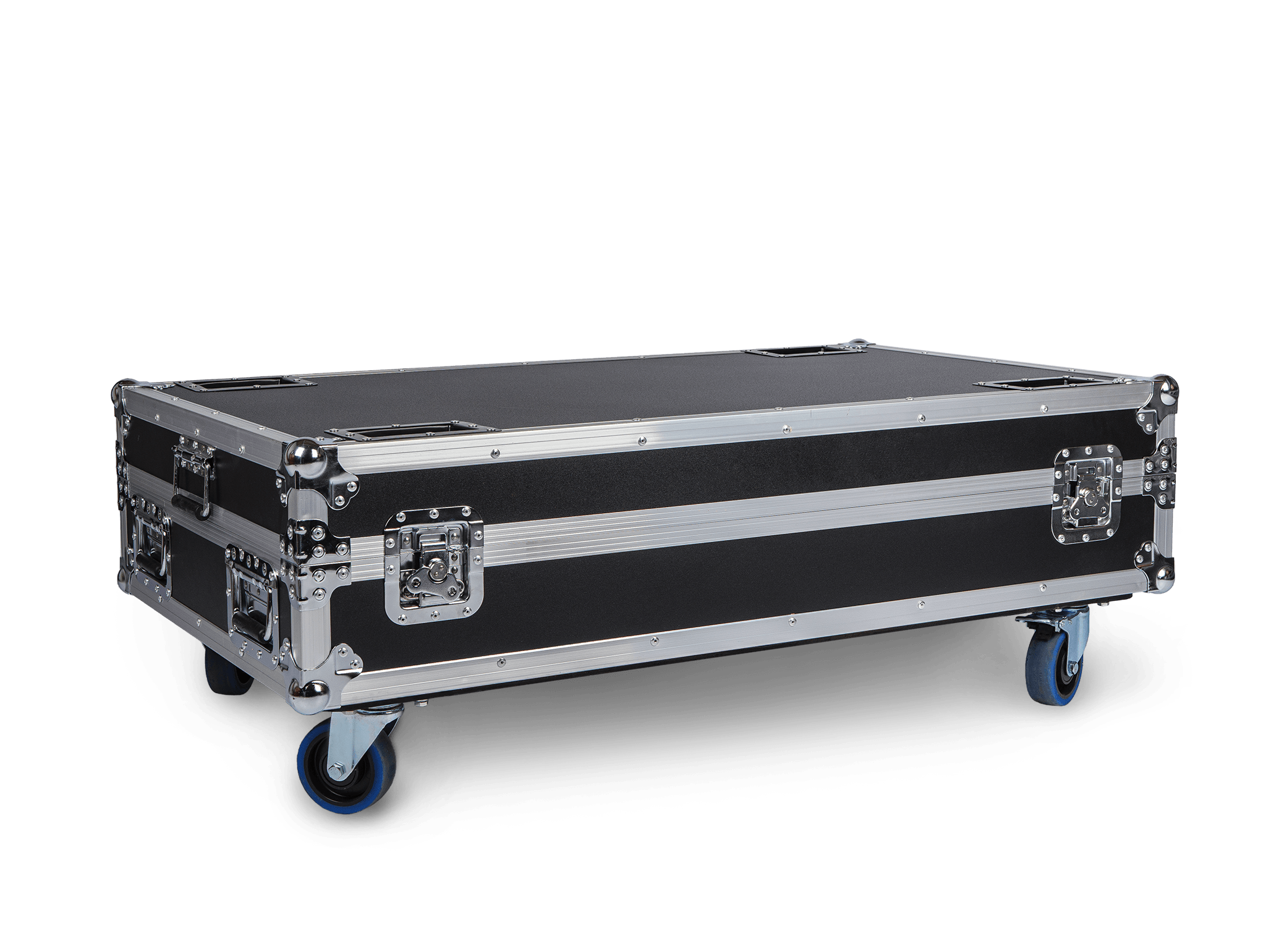

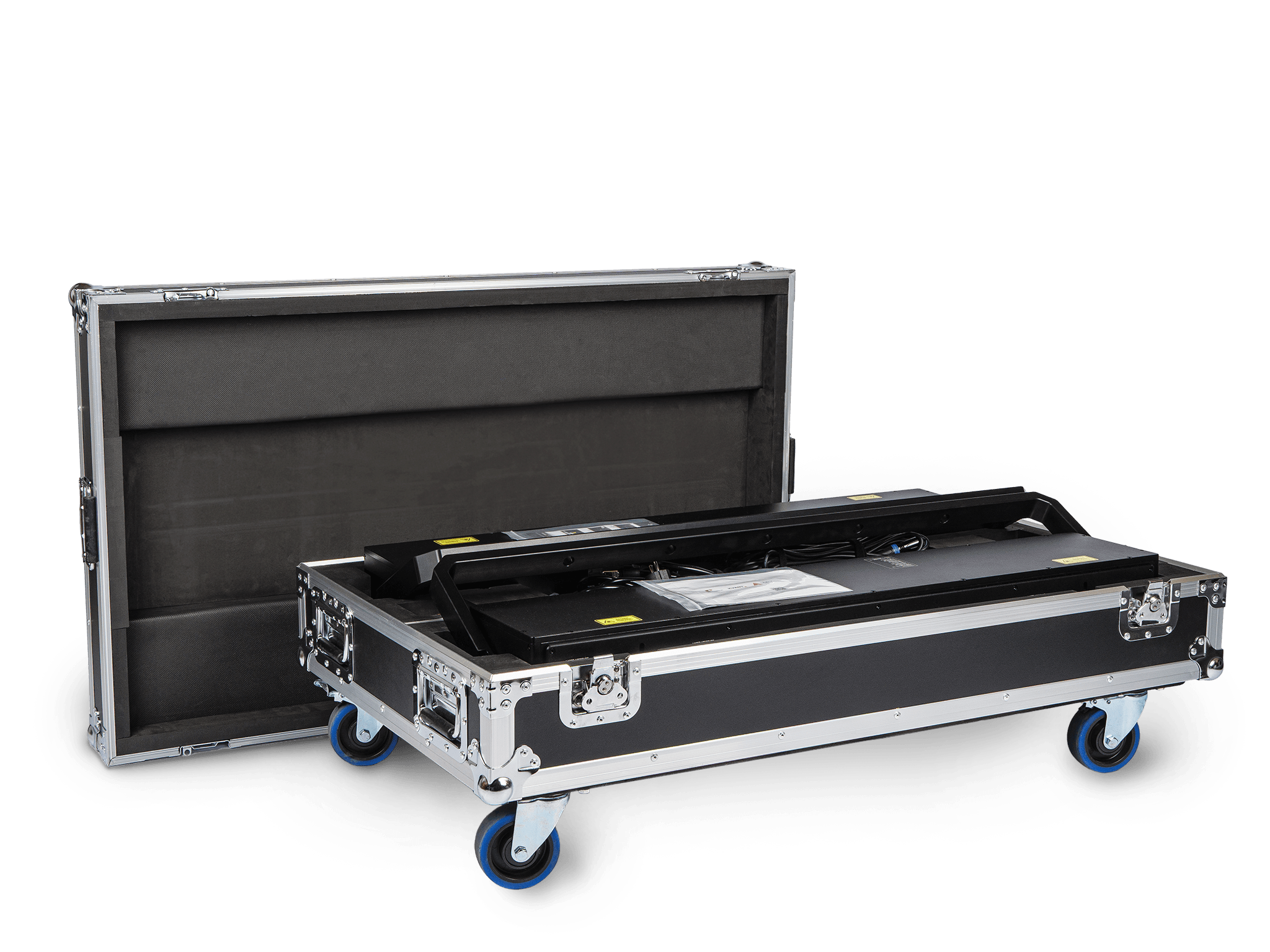

Heavy-duty case
Mains cable
E-STOP Remote
E-STOP XLR cable
Set of safety keys
Quality certificate
User Manual
Interlock [for the US only]
Specifications
| Product Name: | Unity LaserRay RGB (XY-IP65) |
| Type Of Laser: | Full-colour, Semiconductor diode laser system with six independent scanning outputs |
| Guaranteed Optical Output: | >13.2W (total) >2.2W (per single output) |
| Suitable For: | Lighting professionals: Stadiums, arenas, mega clubs, theaters, house of worship. Small and medium sized outdoor shows. |
| Control Signal: | DMX (35-channel assignment) |
| Scanning System: | 30,000 points per second @ 8° |
| Scan Angle: | 45° |
| Safety: | Fully complies with the latest EN 60825-1 and FDA regulations |
| Weight: | 24kg |
| Package Includes: | LaserRay 13 RGB (XY) laser system with IP65 rated housing, heavy duty flight case, Estop box, Estop cable (10M/30ft), DMX cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card (* service dongle if outside US) |
| R | G | B [mW]: | 600 | 800 | 800 (per output) |
| Beam Size [mm]: | 3 x 3 |
| Beam Divergence: | <1.4mrad [Full Angle] |
| Modulation: | Analog 100kHz |
| Power Requirements: | 100-230V/50Hz |
| Consumption: | Max. 600W |
| Operation Temperature: | (-10°C) - 45°C |
| Ingress Rating: | IP65 |
| System Features: | Adjustments are done via DMX from your lighting console for safety, zones, geometric correction, and colors. |
| Laser Safety Features: | Keyed interlock, Emission delay, Internal / Case interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate. |
| Notice: | *Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output |
| Dimensions [mm]: | Depth: 222 | Width: 998 | Height: 148 |
