Unity raw series

The RAW series laser projectors are impactful RGB lasers for hobbyists and semi-professionals.

Unity raw series

The RAW series laser projectors are impactful RGB lasers for hobbyists and semi-professionals.

Unity raw series

The RAW series laser projectors are impactful RGB lasers for hobbyists and semi-professionals.

Overview Specs Support Accessories

1.175,00€ ~~1.305,00€~~

Unity RAW 3 (DMX + ILDA)

Name: Unity RAW 3 (DMX + ILDA)
Brand: end user
Price: 1175.0 EUR
Availability: InStock

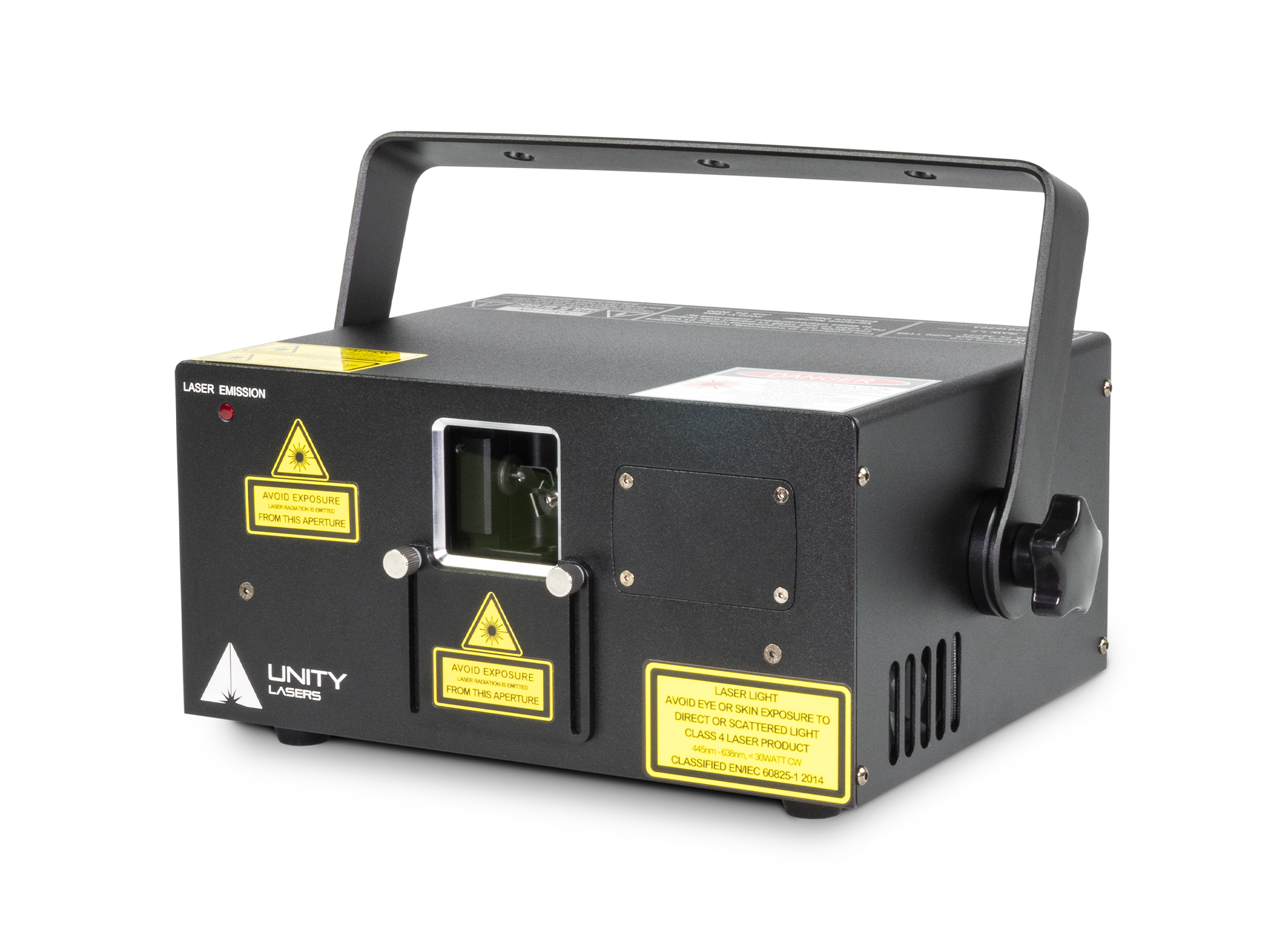

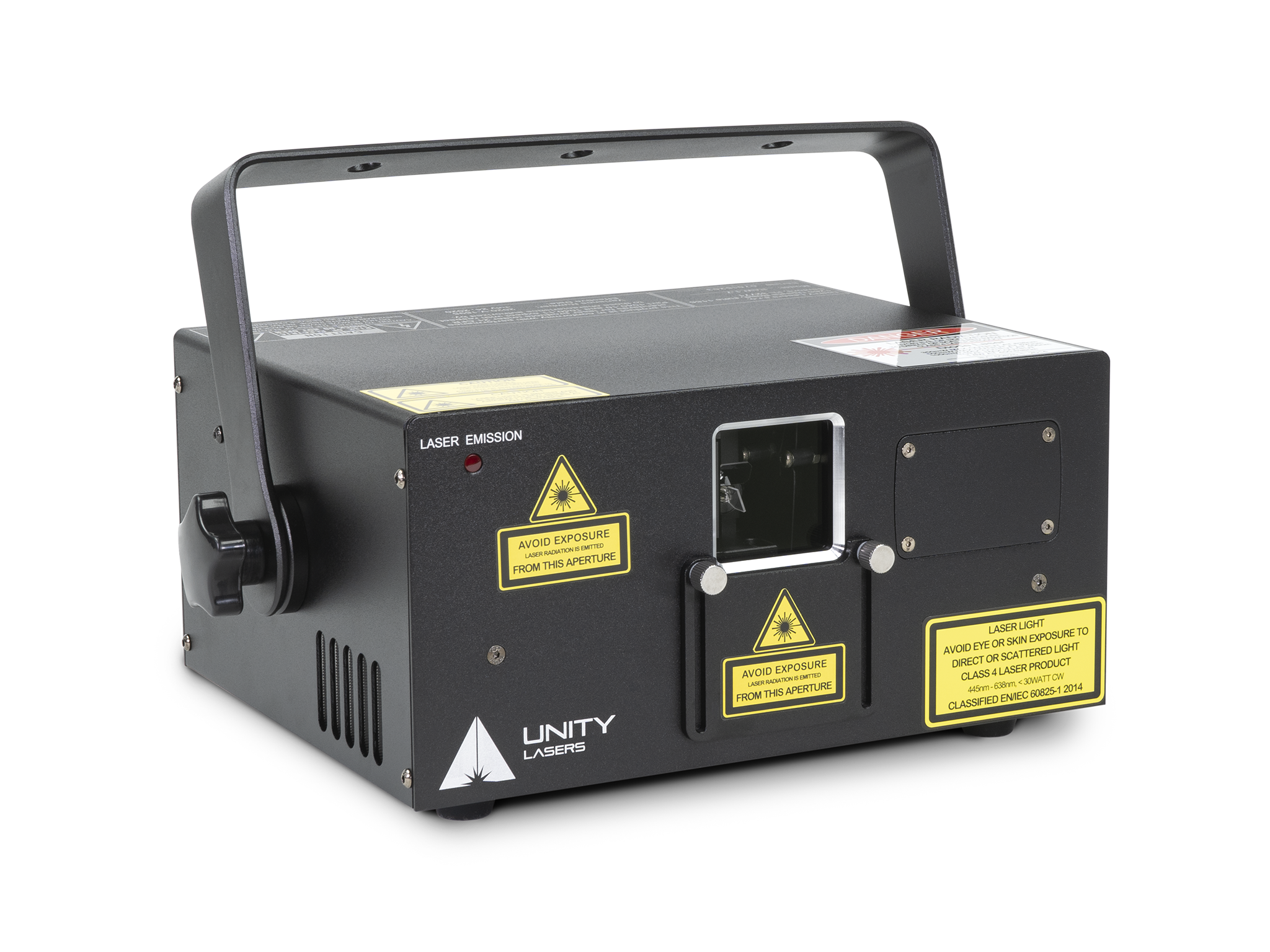

The Unity RAW 3 is a 3-watt full-colour RGB diode-based ILDA and DMX compatible laser projector.
It is designed for those who want an economically friendly laser show system that has the power to produce beautiful aerial beam effects and high-resolution laser graphics, logos and text.

This RAW laser projector is suitable for semi-professionals and hobbyists and can be used in smaller clubs and venues.

DMX Lasers | Unity RAW DMX+ILDA Series - 1.7-10W Full Color RGB Lasers

What is in the Package

UNITY laser projector

Mains cable

ILDA cable

E-STOP Remote

E-STOP XLR cable

Set of safety keys

Quality certificate

User Manual

Interlock [for the US only]

Specifications

Product Name:	Unity RAW 3 (DMX+ILDA)
Type Of Laser:	Full-colour, Semiconductor diode laser system
Guaranteed Optical Output:	>3W
Suitable For:	Clubs, DJs, medium indoor venues (up to 3,000 people), home and hobby use. Beam show, text, graphic, and mapping capable
Control Signal:	DMX mode, sound active mode, and ILDA mode (we recommend Pangolin FB3QS and QuickShow for ILDA control)
Scanning System:	30,000 points per second @ 8°
Scan Angle:	45°
Safety:	Fully complies with the latest EN 60825-1 and FDA regulations
Weight:	5.3kg
Package Includes:	Laser projector, Estop box, Estop cable (10M/30ft), ILDA cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, manual, quickstart guide, variance card, carton packaging
R \| G \| B [mW]:	500 \| 800 \| 1,700
Beam Size [mm]:	5 x 3
Beam Divergence:	<1.1mrad [Full Angle]
Modulation:	Analog 50kHz
Power Requirements:	100-230V/50Hz
Consumption:	Max. 100W
Operation Temperature:	10-40 °C
Ingress Rating:	IP4X

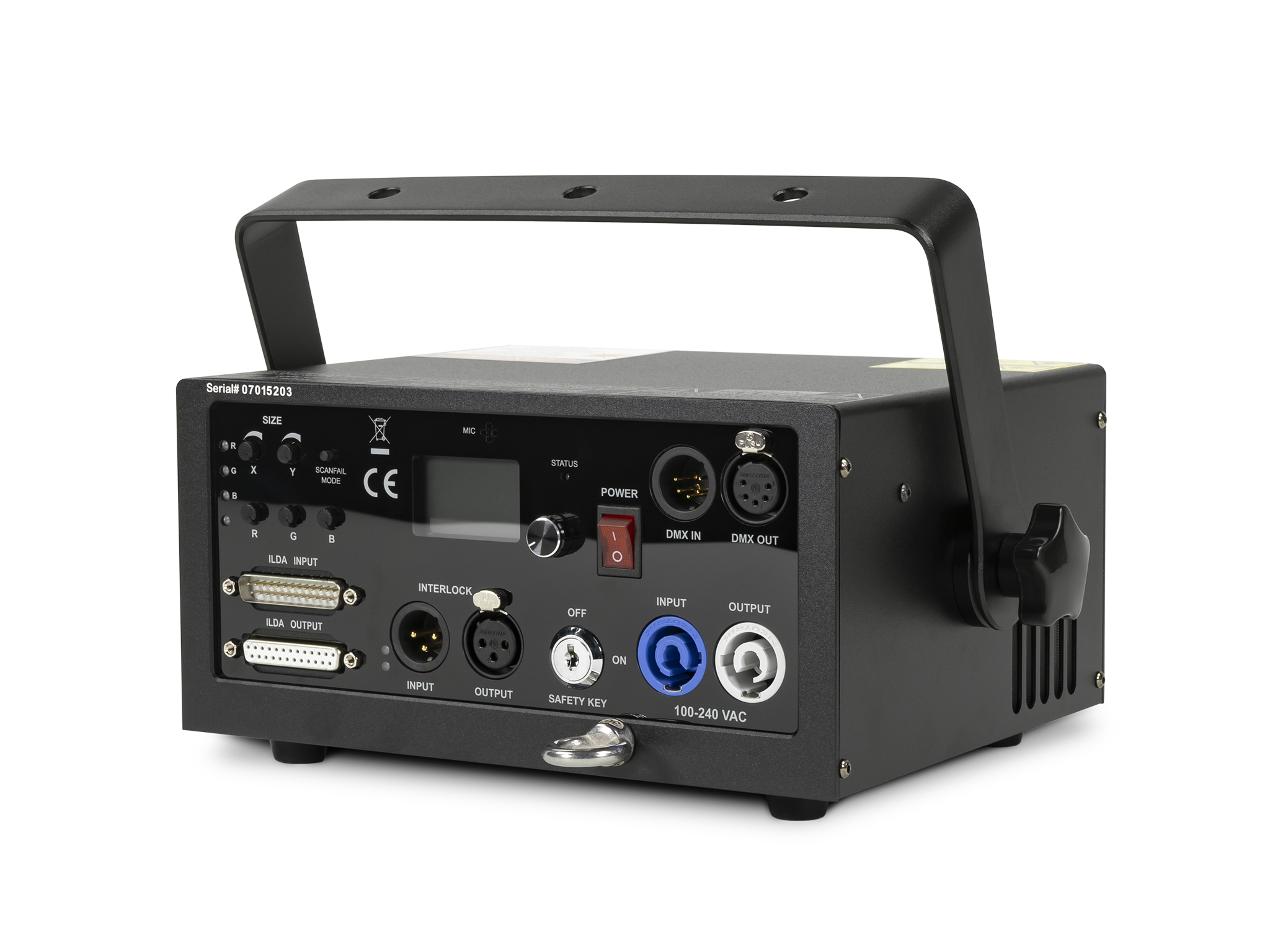

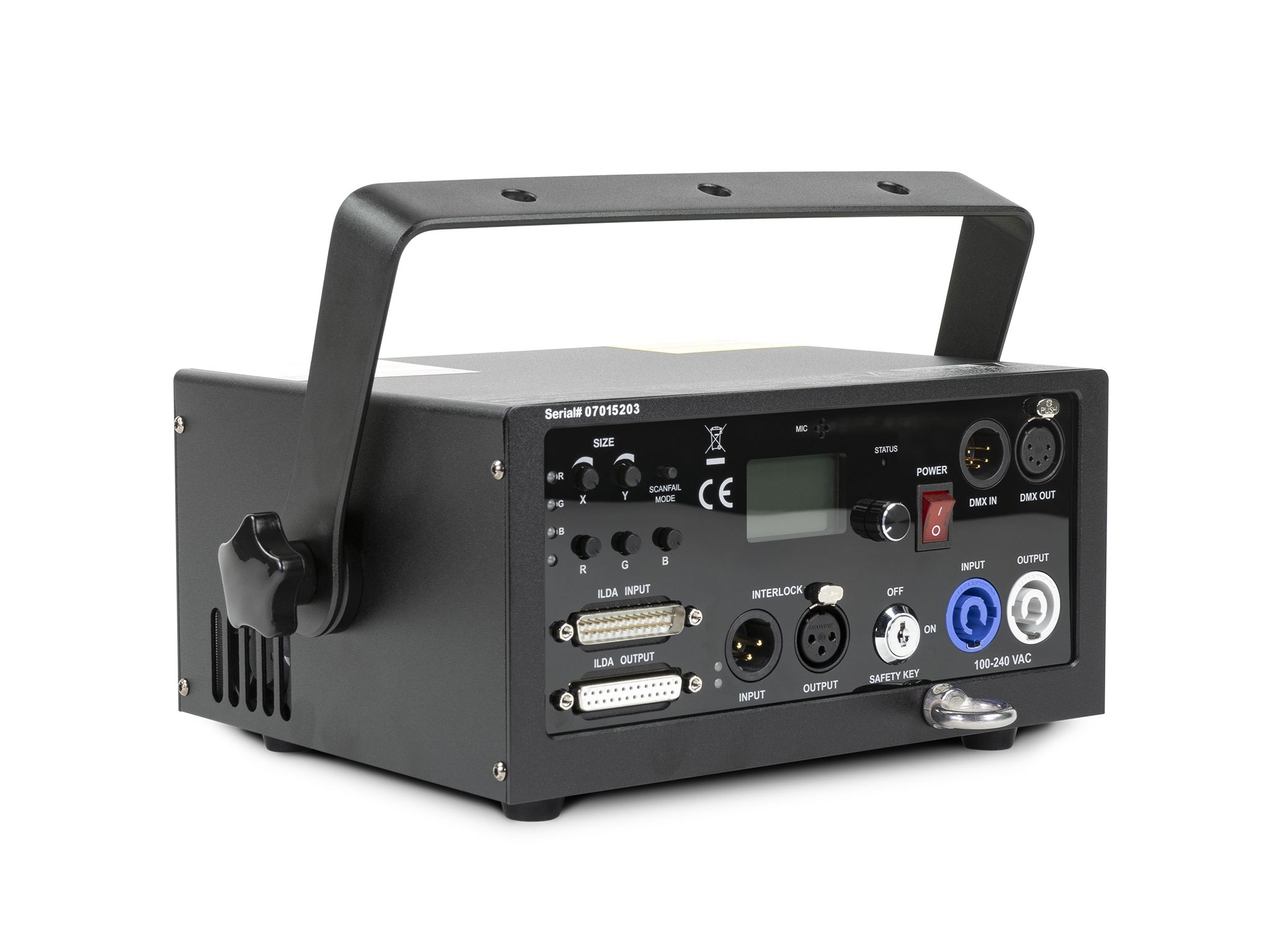

System Features:	Adjustments for color channels (R,G,B), size/position/invert (X,Y), DMX in/out, ILDA in/out, Estop in/out, power in/out, sound active mode, digital display for DMX address and settings
Laser Safety Features:	Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate
Notice:	*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output
Dimensions [mm]:	Depth: 238 \| Width: 192 \| Height: 126
