Regular price 2.399,00€

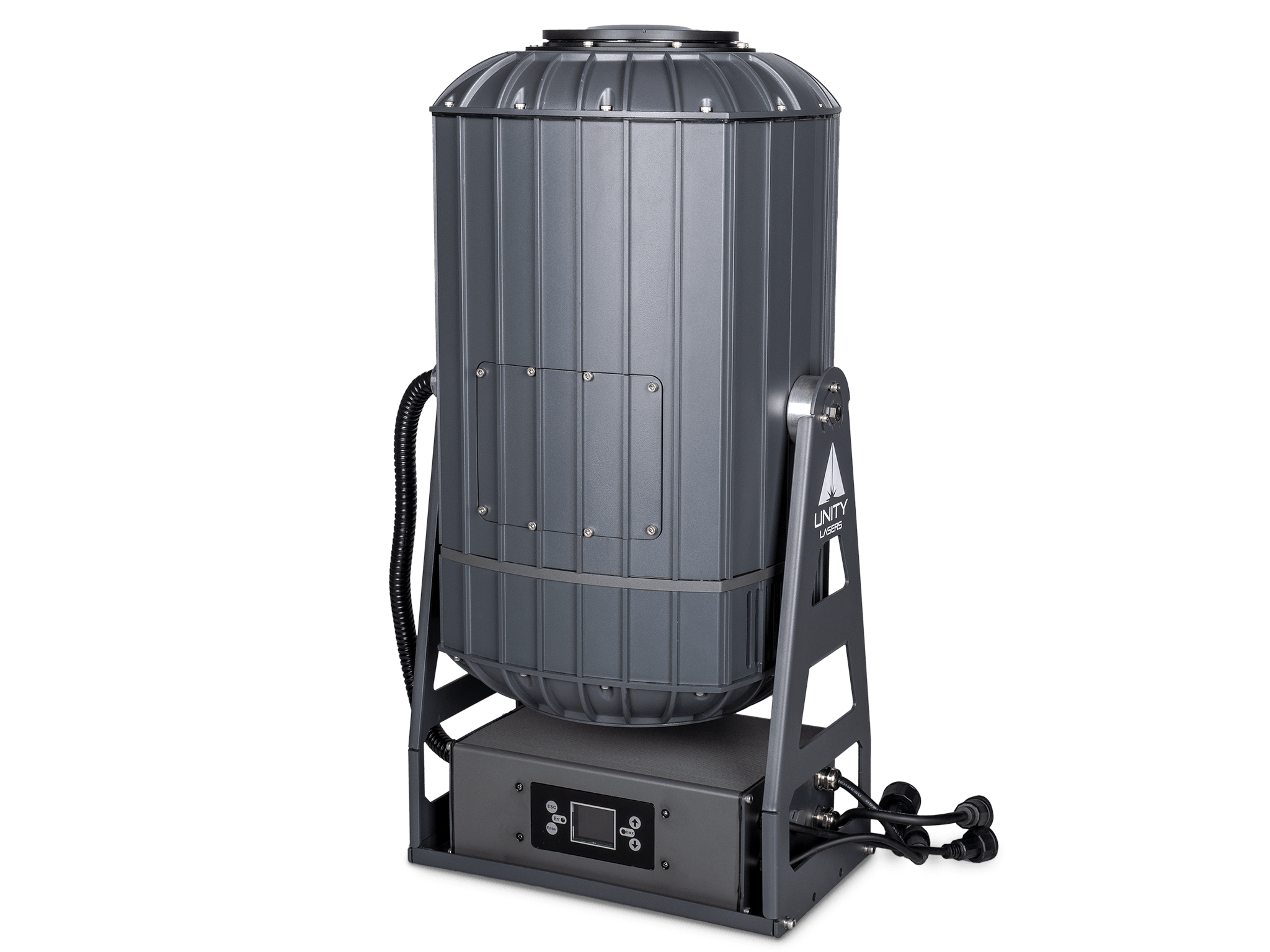

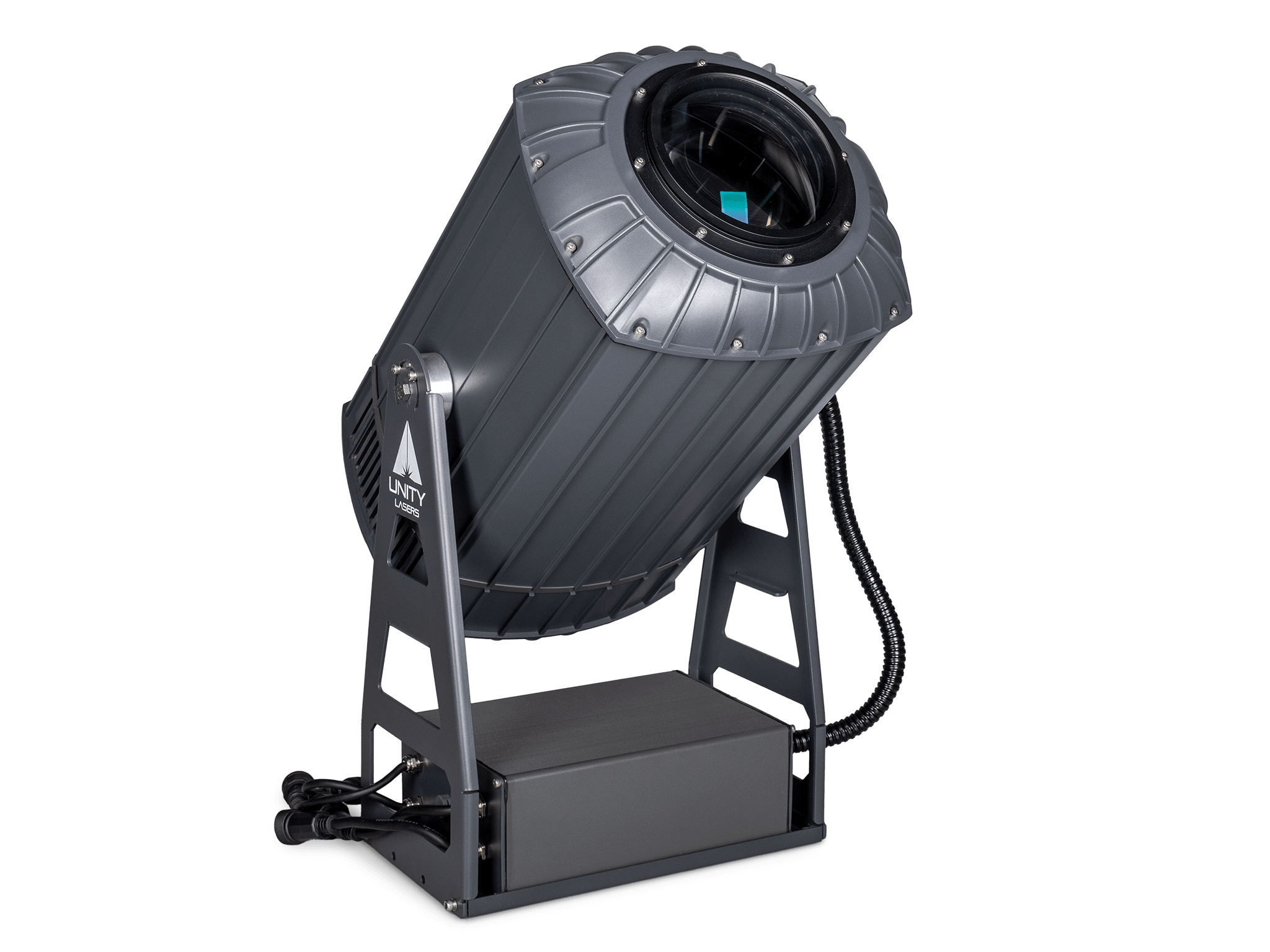

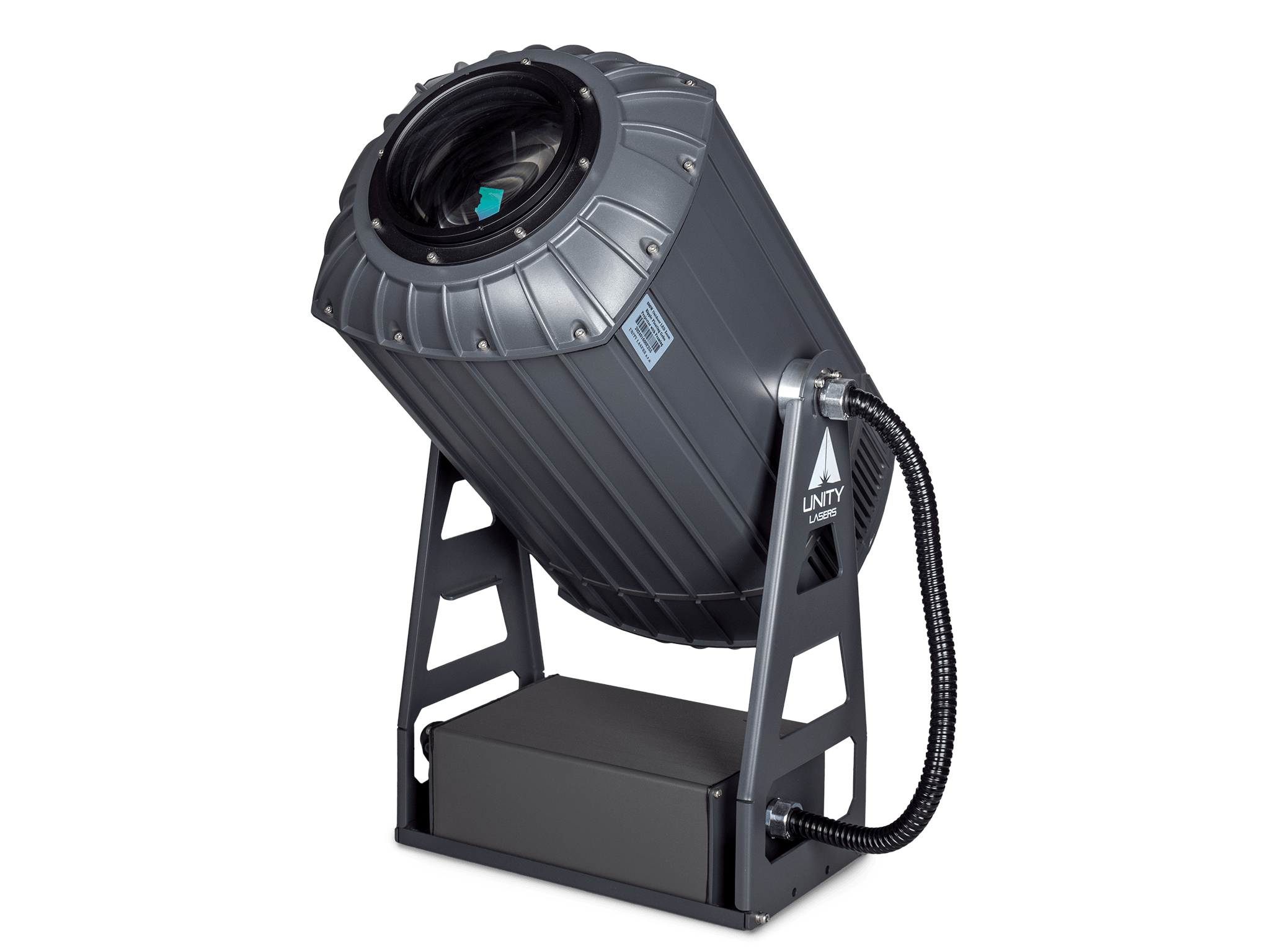

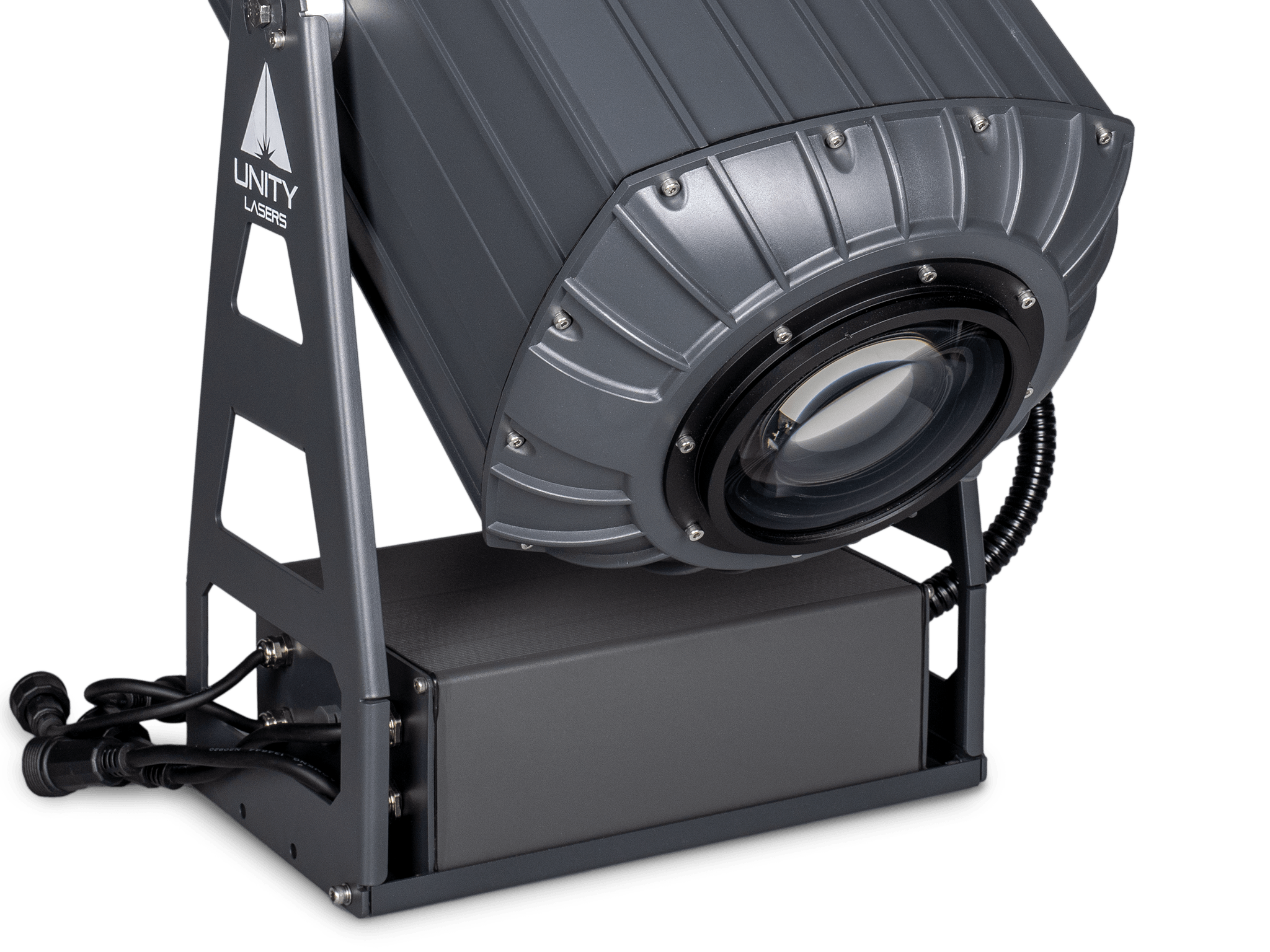

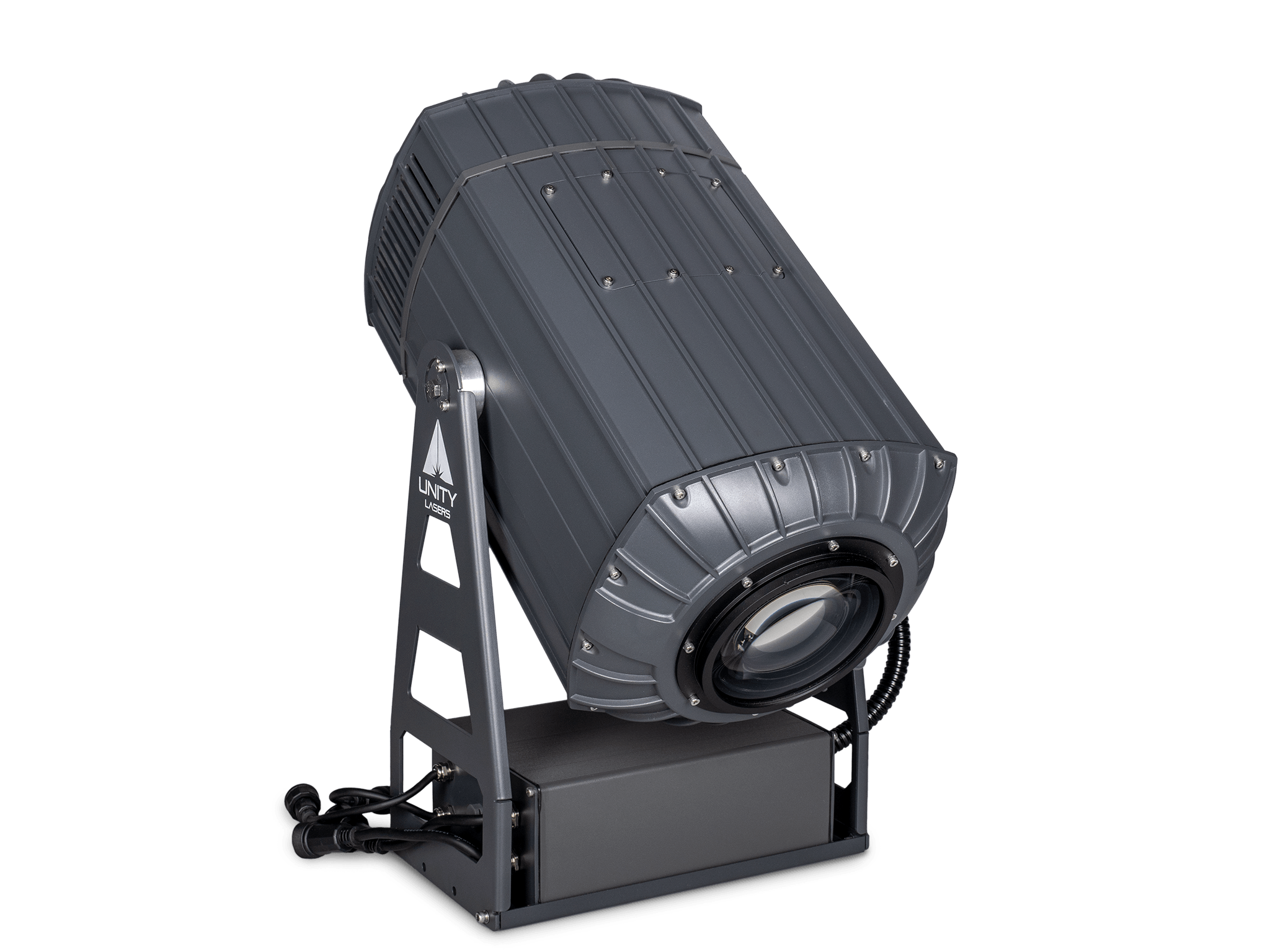

Unity GOBO 600

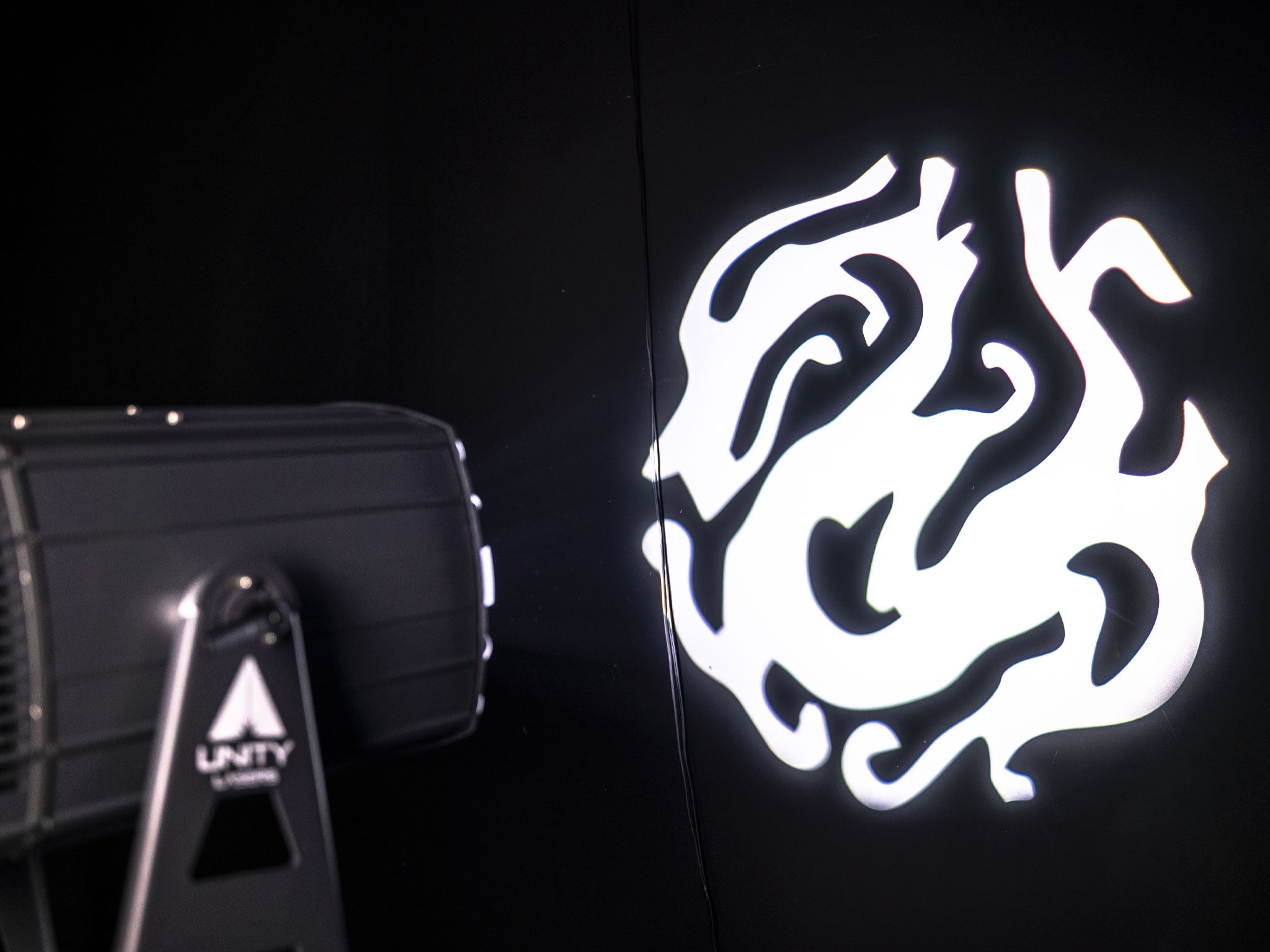

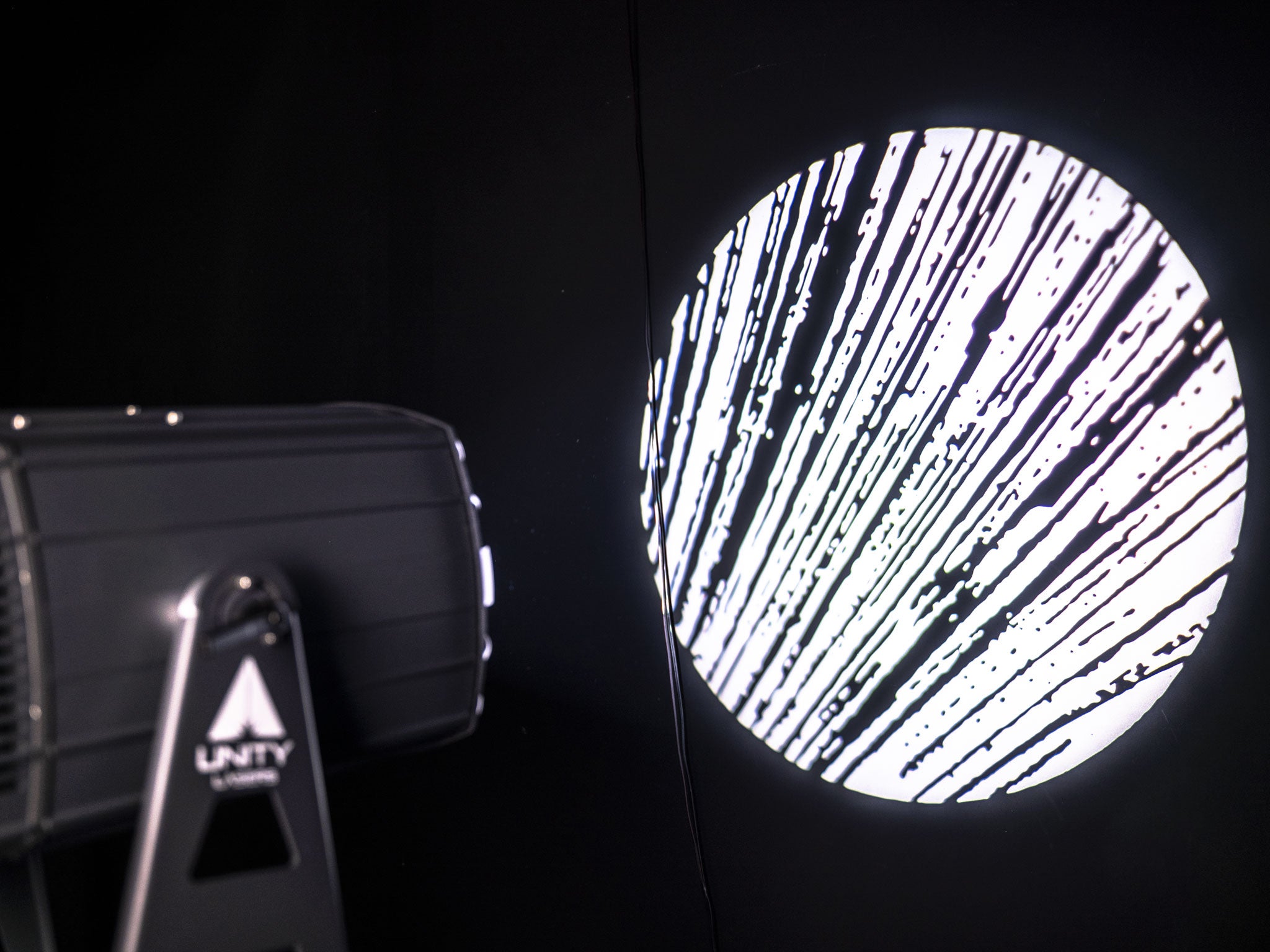

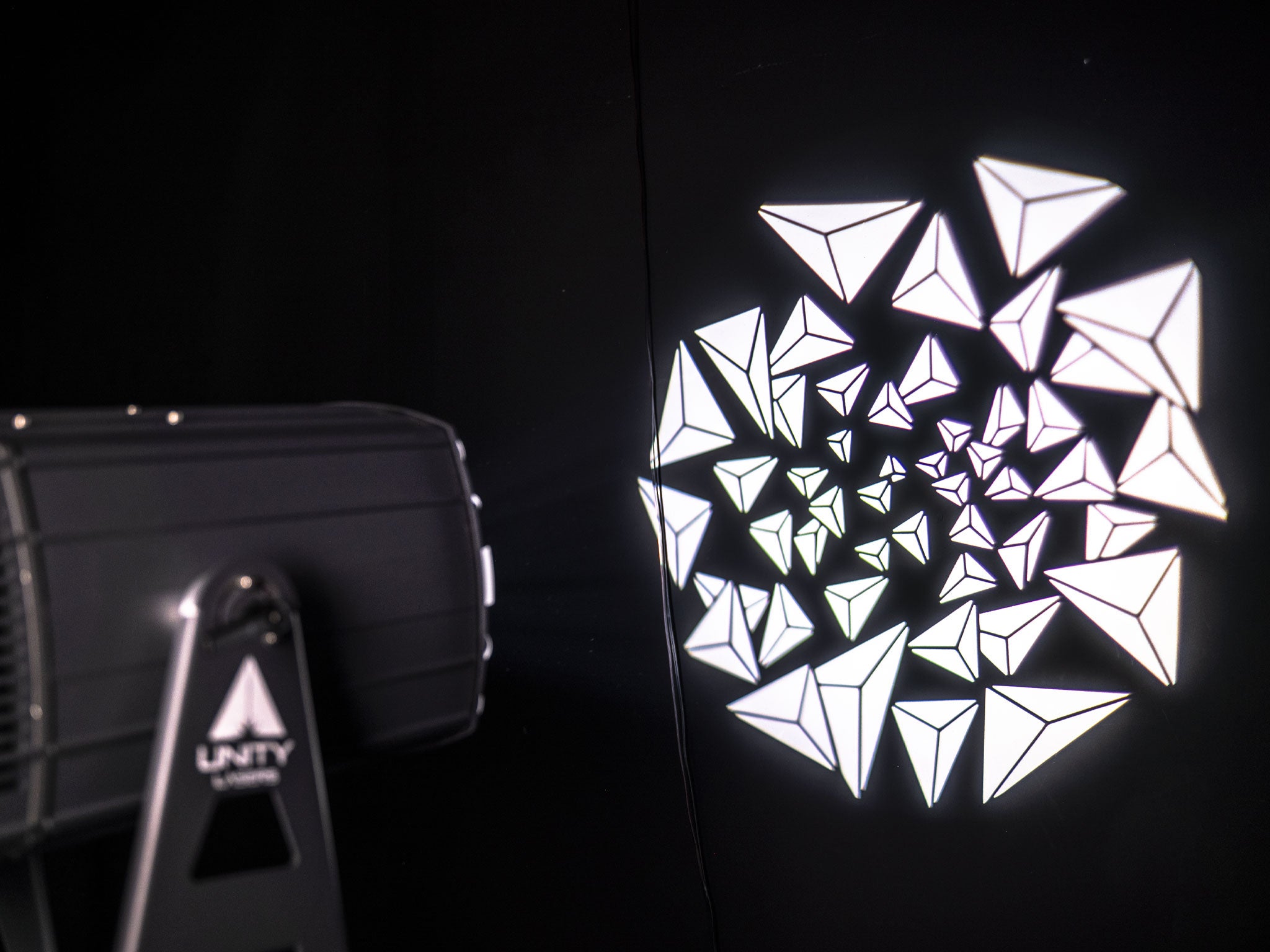

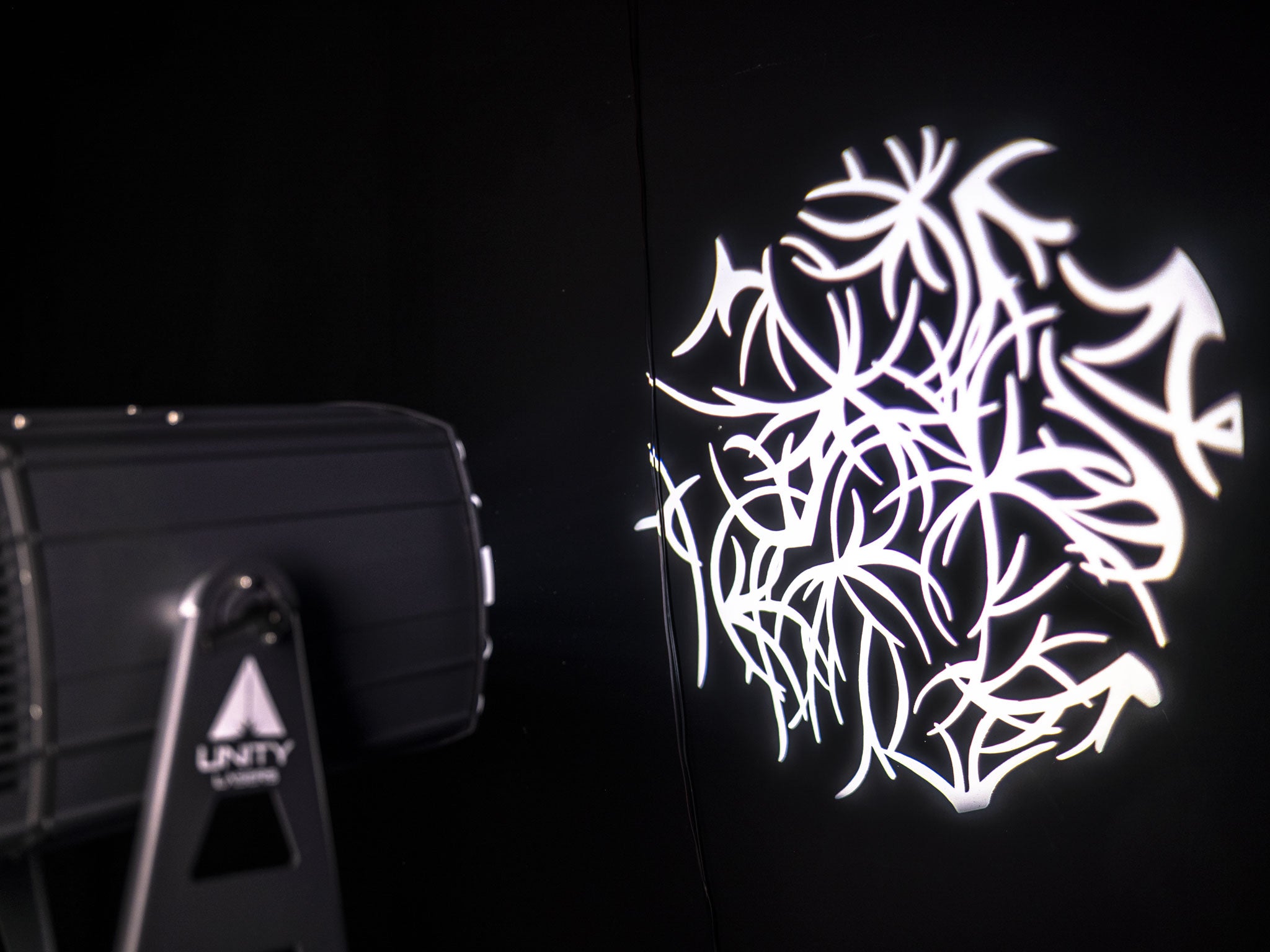

The Unity GOBO 600 is a 600-watt LED Gobo projector that offers all the features of modern professional gobos, including effects such as Zoom, Prism, Focus, Strobe and Dimmer.

Its robust constriction made to IP65 standards allows it to be used in rainy conditions without worry.
The GOBO 600 is a superb addition to laser displays. Because this model is compatible with custom-made gobos, we found it very useful for laser mapping background projections and general support to laser displays on buildings and structures.
In particular, laser-projected logos can be filled with colours and shapes, making them outstanding and unique, with many possible colour and pattern variations made in seconds.

--

  • Bright-white 600-watt LED gobo projector
    High-quality optics with clean powerful output
    Modular component with convenient and easy exchange
    6 dichroic colours + 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos
    5°- 50° linear motorised zoom
    0-100% variable linear dimmer
    Light weight and compact design
    Waterproof to IP65 standard

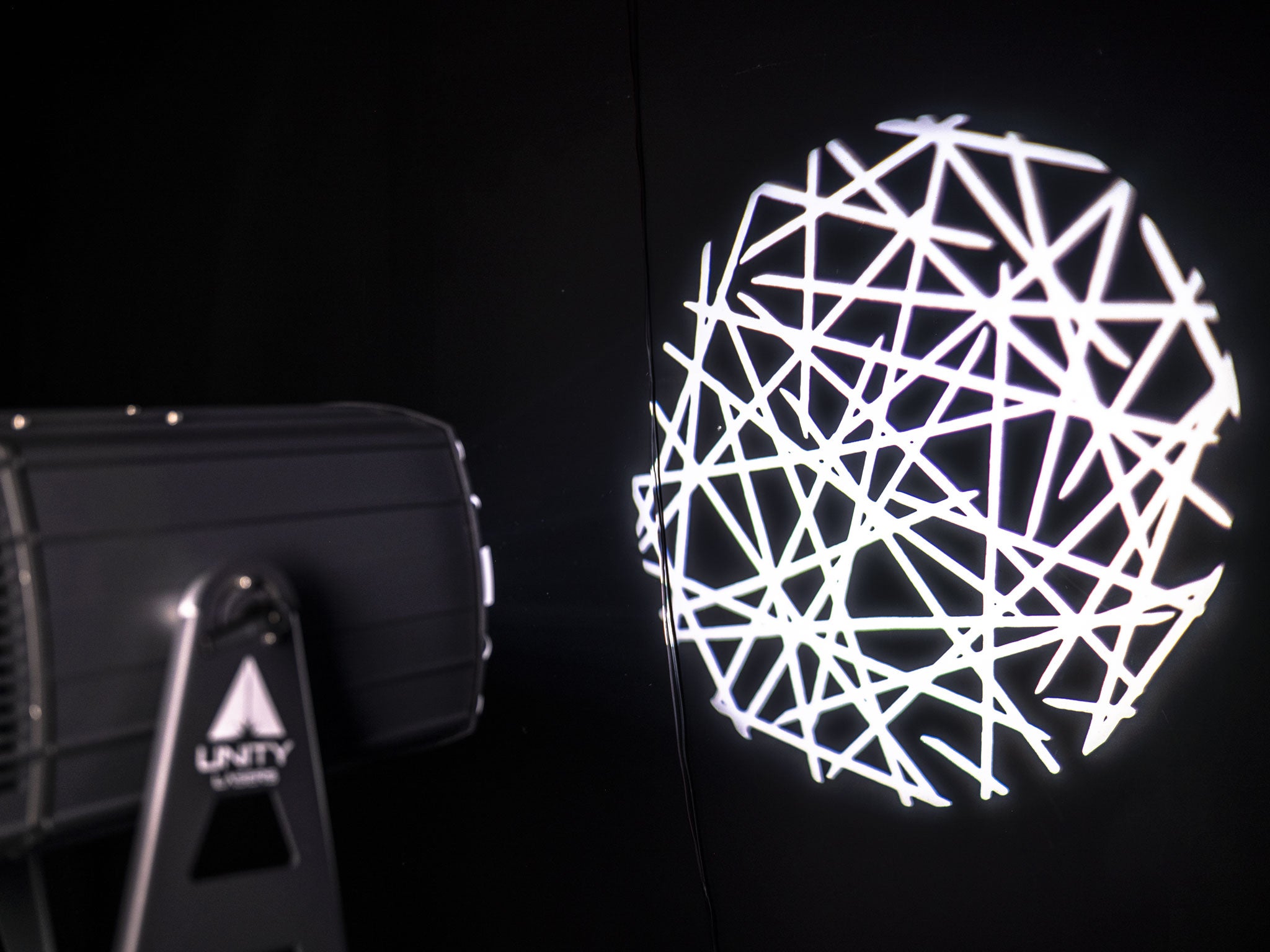

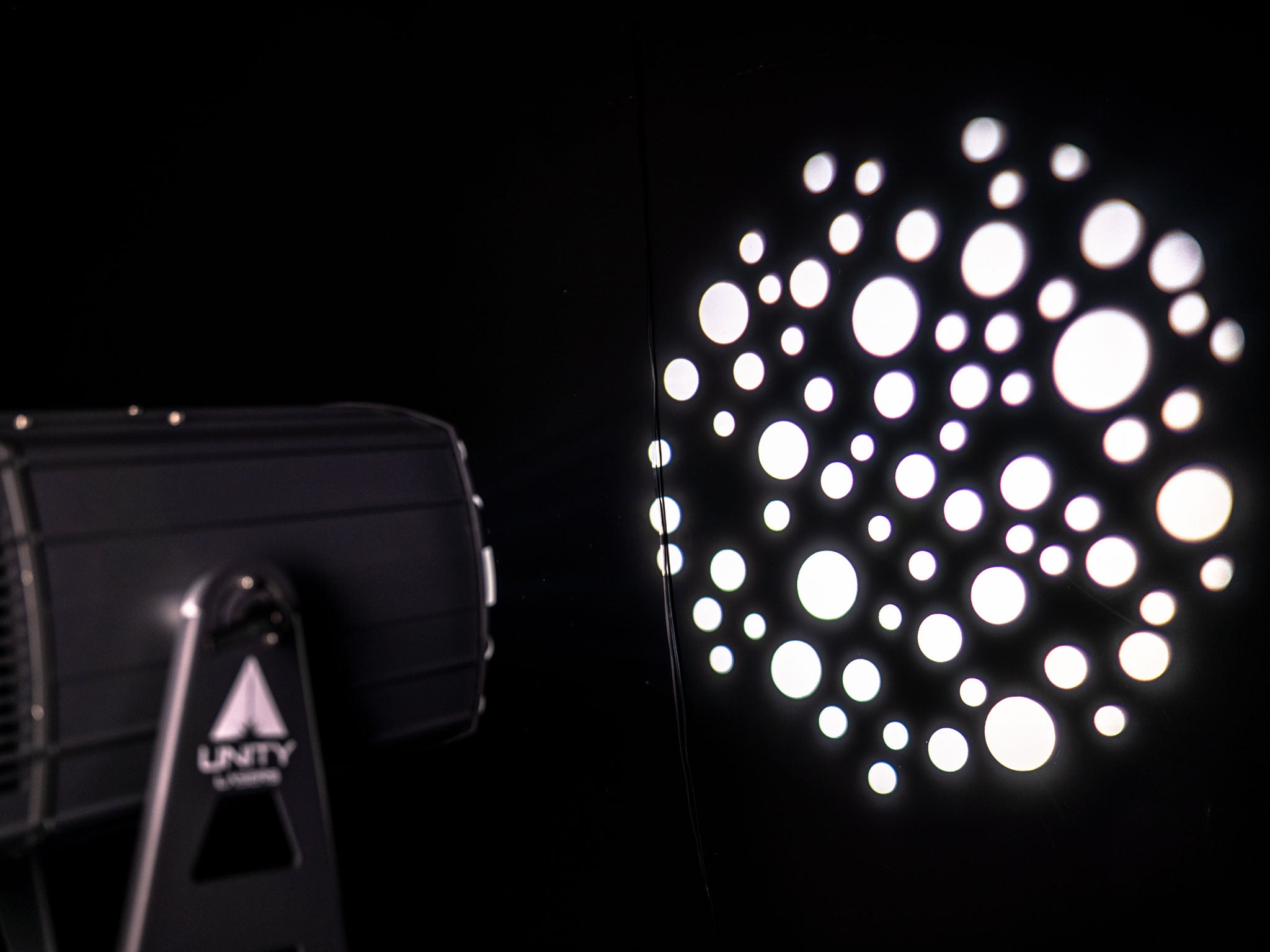

    Accepts customised gobos

What is in the Package

UNITY gobo projector
Gobos
Mains cable
XLR cable

SPECIFICATIONS

SOURCE
● Light Source: 600W Color White LED
● Color Temperature: 6600K
● Average LED Life: 20,000 Hour

POWER
● Input Voltage: 100-240V AC, 50/60Hz
● Power Consumption: 750W

OPTICAL SYSTEM
● Zoom: 5° – 50° linear electronic
● Prism(selectable): 4-facet circular rotating prism
● Focus: Motorized linear focus
● Strobe: 0-25Hz variable speed, pulse and random strobe
● Dimmer: 0-100% variable linear dimming curves

COLOURS
● 6 Dichoric Colours plus open, Index / Bi-directional rotating rainbow effect

ROTATING GOBOS
● 1 rotation gobo wheel with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos
● Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
● Glass gobo outside Φ28mm, inside Φ22mm

CONTROL & CONNECTIONS
● DMX Channel: 10CH
● Control Mode: DMX, Auto 1, Auto 2, Sound, Scene

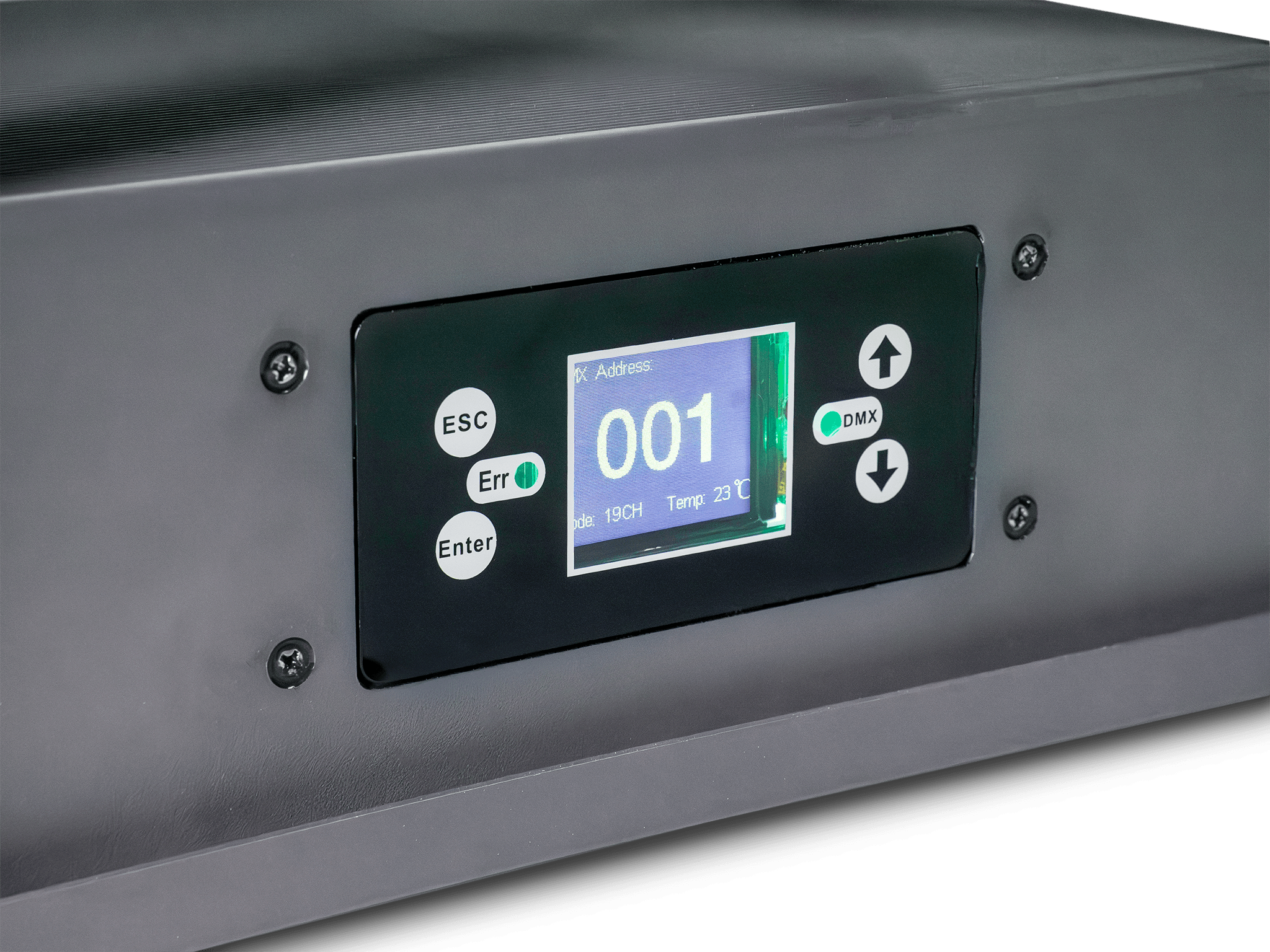

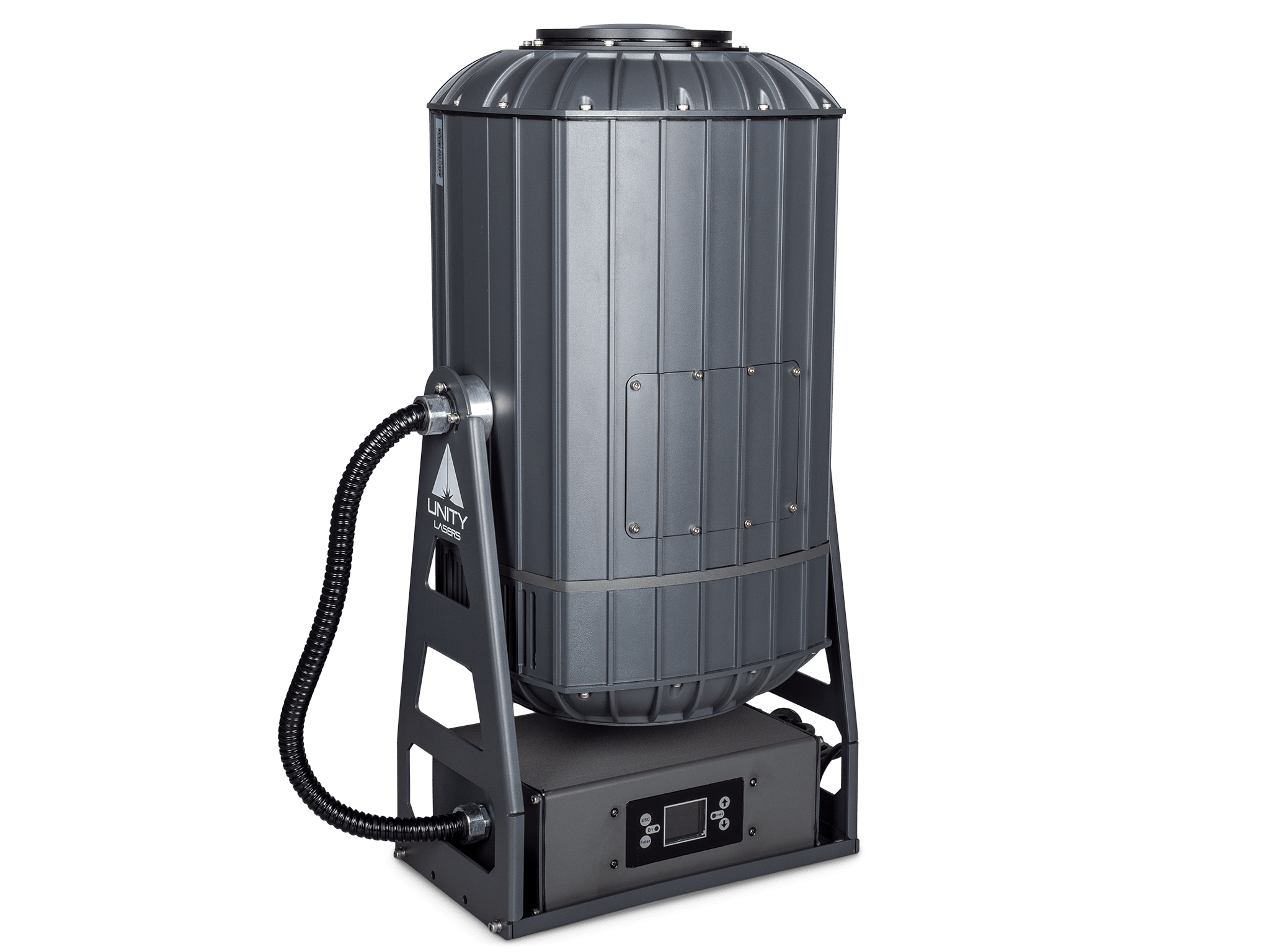

● Full Color 180° Reversible LCD

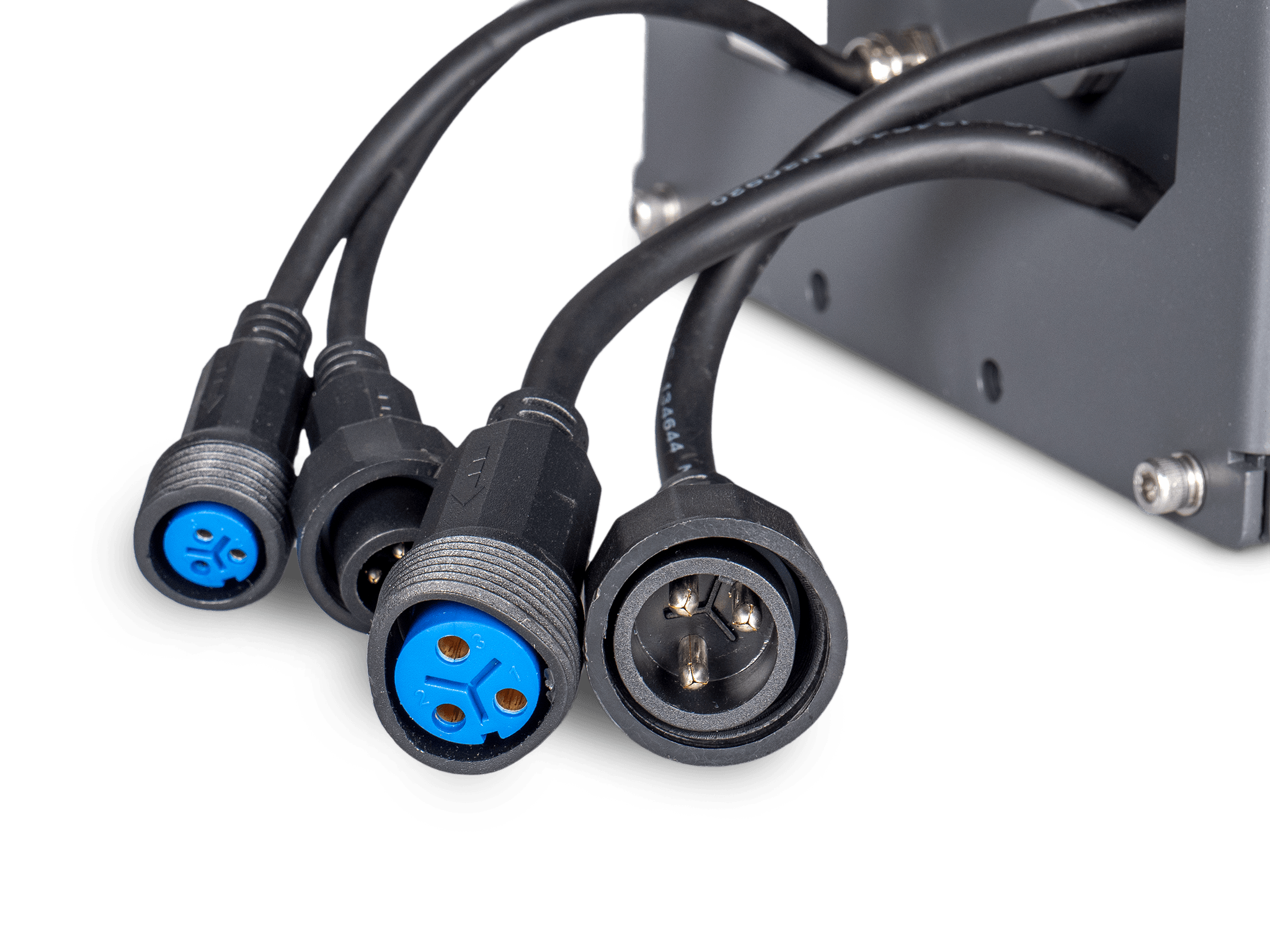

● DMX In/Out: 3-pin waterproof Male/Female signal cable
● Power In/Out: 3 pin waterproof Male/Female power cable

PHYSICAL
● Protection Rate: IP65
● Body Finish: Aluminum alloy shell with high strength, surface blasting oxidation treatment, black and grey optional or customised colour is available
● Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximise the chip illuminance and prolong its lifespan greatly

WEIGHT & DIMENSION
● Net Weight: 26.05kg
● Gross Weight: 28.50kg
● Product Dimension: 262×329×681mm
● Package(1 in 1 Carton): 800×495×390mm
(1 in 1 flight case): 740×520×420mm
