suitable for medium-sized venues and events; mobile DJs
full-colour laser effects, basic text and graphics
up to 75 metres projection reach
5 Watts power output
Unity RAW series | Product Video

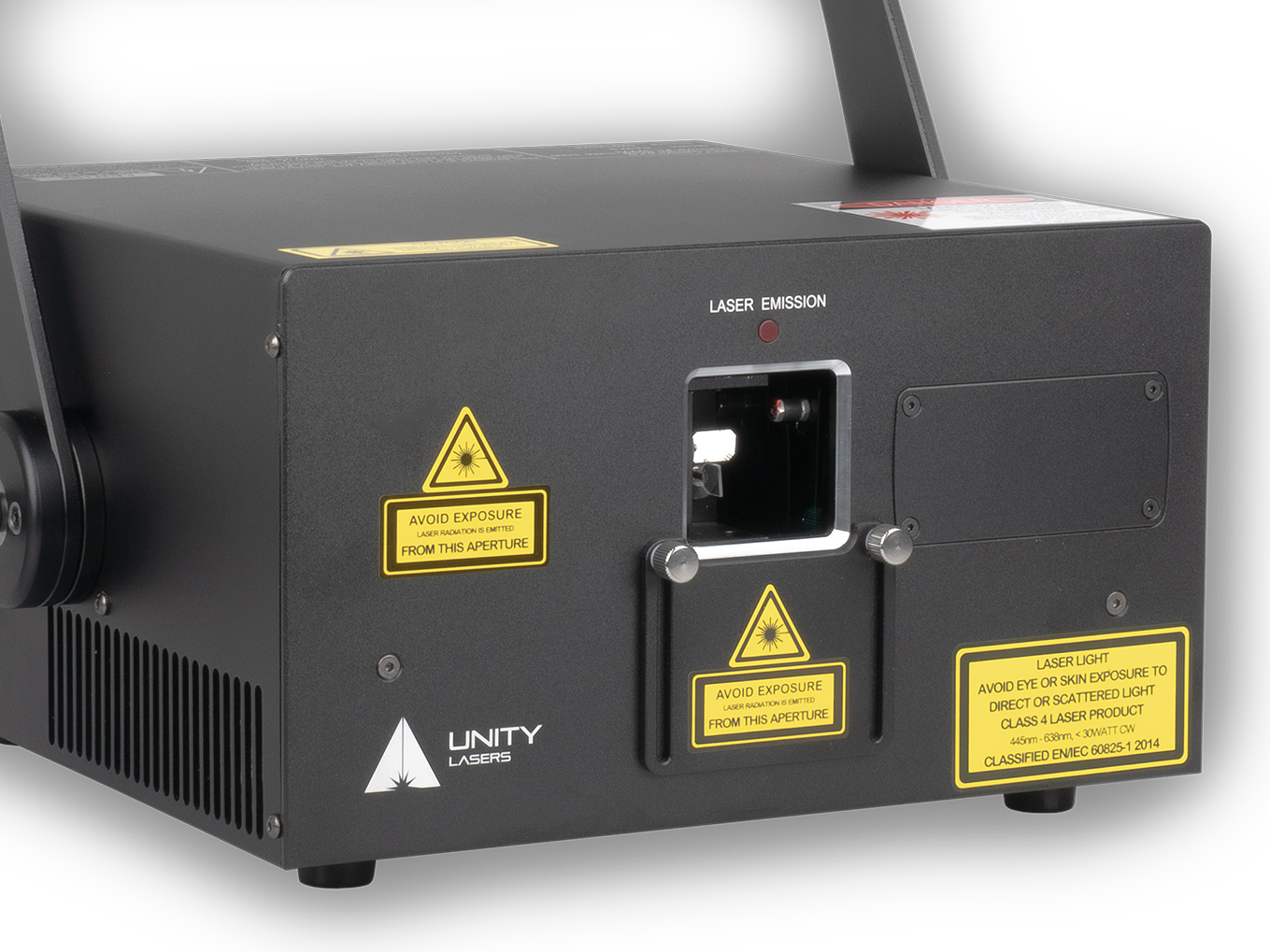

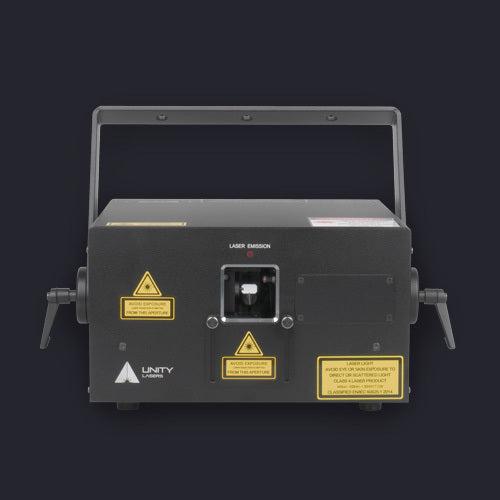

The RAW 5 is a full-colour RGB, diode-based laser systems designed for clients who need impactful aerial beam effects, with the ability also to produce laser graphics, logos and text.
The RAW Series is perfect for DJs, nightclubs and entertainment venues, where you need an impactful and easy to use laser system at an economical price point. It is suitable for venues of up to 2,000 people capacity.
RAW Series lasers are incredibly easy to set up and use. And can easily be controlled via ILDA or DMX / ArtNET (with Pangolin software).
- We recommend using the Pangolin FB3QS or FB4 control hardware with QuickShow software.
- Try a FREE demo, and see it in action here: http://www.pangolin.com/quickshow.
What’s in the box
The RAW 5 includes all of your main accessories, FREE.
- Laser projector
- ILDA cable
- E-stop safety system and E-stop cables
|Product Name:||Unity RAW 5|
|Type Of Laser:||Full-colour, Semiconductor diode laser system|
|Guaranteed Optical Output:||>4,300mW|
|Suitable For:||Medium-sized venues and indoor events; laser shows and laser graphic displays
|Control Signal:||ILDA - We recommend Pangolin FB3QS and QuickShow|
|Scanning System:||25,000 points per second @ 8°|
|Safety:||Fully complies with the latest EN 60825-1 and FDA regulations|
|Package Includes:||Power cord, 10M ILDA signal cable, E-STOP box with 10M cable, Set of 4 safety keys, 3-pin interlock bypass plug, User guide.|
|R | G | B [mW]:||1200 | 1100 | 2200|
|Beam Size [mm]:||5 x 3|
|Beam Divergence:||<1.1mrad [Full Angle]|
|Operation Temperature:||10-40 °C|
|Ingress Rating:||IP 20|
|System Features:||All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, Daisy chain of emergency STOP signal for multiple system "one-hit" operation.|
|Laser Safety Features:||Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.|
|Notice:||*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.|
