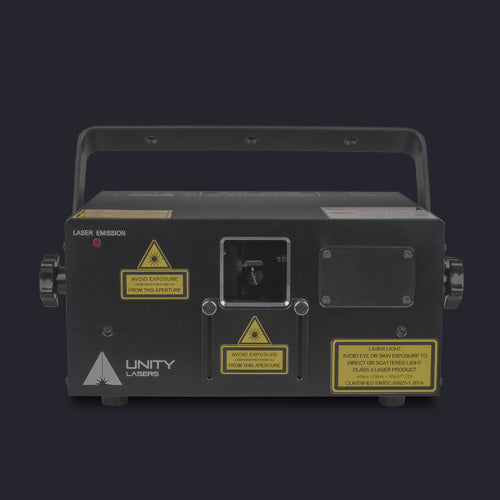

Unity RAW 3
Unity RAW 3 full-colour laser beams_4
Unity RAW 3 RGB laser graphics_3
Unity RAW 3 full-colour laser beams_1
Unity RAW 3
Unity RAW 3
Unity RAW 3
Unity RAW 3 RGB laser graphics_1
Unity RAW 3 RGB laser graphics_2
Unity RAW 3 blue laser beams_2
Unity RAW 3 RGB laser graphics_4
Unity RAW 3 full-colour laser beams_3
Unity RAW 3 RGB laser graphics_5
  • Load image into Gallery viewer, Unity RAW 3
  • Load image into Gallery viewer, Unity RAW 3 full-colour laser beams_4
  • Load image into Gallery viewer, Unity RAW 3 RGB laser graphics_3
  • Load image into Gallery viewer, Unity RAW 3 full-colour laser beams_1
  • Load image into Gallery viewer, Unity RAW 3
  • Load image into Gallery viewer, Unity RAW 3
  • Load image into Gallery viewer, Unity RAW 3
  • Load image into Gallery viewer, Unity RAW 3 RGB laser graphics_1
  • Load image into Gallery viewer, Unity RAW 3 RGB laser graphics_2
  • Load image into Gallery viewer, Unity RAW 3 blue laser beams_2
  • Load image into Gallery viewer, Unity RAW 3 RGB laser graphics_4
  • Load image into Gallery viewer, Unity RAW 3 full-colour laser beams_3
  • Load image into Gallery viewer, Unity RAW 3 RGB laser graphics_5

Description

  • suitable for small-to-medium sized venues and events; mobile DJs

  • full-colour laser effects, basic text and graphics

  • up to 40 metres projection reach

  • 3 Watts power output

Unity RAW series | Product Video

Overview

The RAW 3 is a full-colour RGB, diode-based laser systems designed for clients who need impactful aerial beam effects, with the ability also to produce laser graphics, logos and text.

Applications

The RAW Series is perfect for DJs, nightclubs and entertainment venues, where you need an impactful and easy to use laser system at an economical price point. It is suitable for venues of up to 1,500 people capacity.

Control

RAW Series lasers are incredibly easy to set up and use. And can easily be controlled via ILDA or DMX / ArtNET (with Pangolin software).

  • We recommend using the Pangolin FB3QS or FB4 control hardware with QuickShow software.
  • Try a FREE demo, and see it in action here: http://www.pangolin.com/quickshow.

What’s in the box

The RAW 3 includes all of your main accessories, FREE.

  • Laser projector
  • ILDA cable
  • E-stop safety system and E-stop cables
  • Interlocks
  • Keys

Specifications

Product Name: Unity RAW 3
Type Of Laser: Full-colour, Semiconductor diode laser system
Guaranteed Optical Output: >2,400mW
Suitable For: Small-sized venues and indoor events; laser shows and laser graphic displays
Control Signal: ILDA - We recommend Pangolin FB3QS and QuickShow
Scanning System: 25,000 points per second @ 8°
Scan Angle: 50°
Safety: Fully complies with the latest EN 60825-1 and FDA regulations
Weight: 5,3kg
Package Includes: Power cord, 10M ILDA signal cable, E-STOP box with 10M cable, Set of 4 safety keys, 3-pin interlock bypass plug, User guide.
R | G | B [mW]: 400 | 700 | 1300
Beam Size [mm]: 5 x 3
Beam Divergence: <1.1mrad [Full Angle]
Modulation: Analog 50kHz
Power Requirements: 100-230V/50Hz
Consumption: Max. 100W
Operation Temperature: 10-40 °C
Ingress Rating: IP 20
System Features: All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, Daisy chain of emergency STOP signal for multiple system "one-hit" operation.
Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
Notice: *Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
Dimensions [mm]: Depth: 238
Width: 192
Height: 126
