Full-colour RGB
Up to 10 Watts
ILDA standard compatible
Regular price 2.799,00€

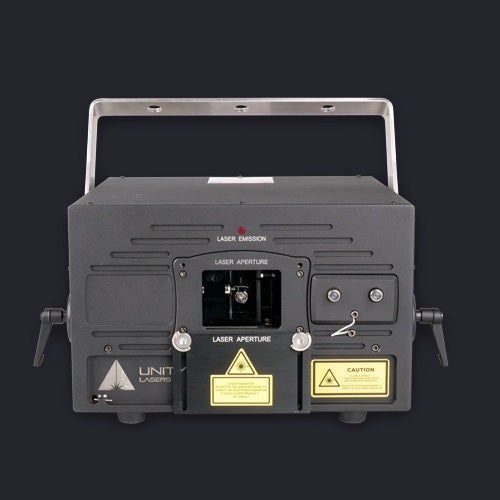

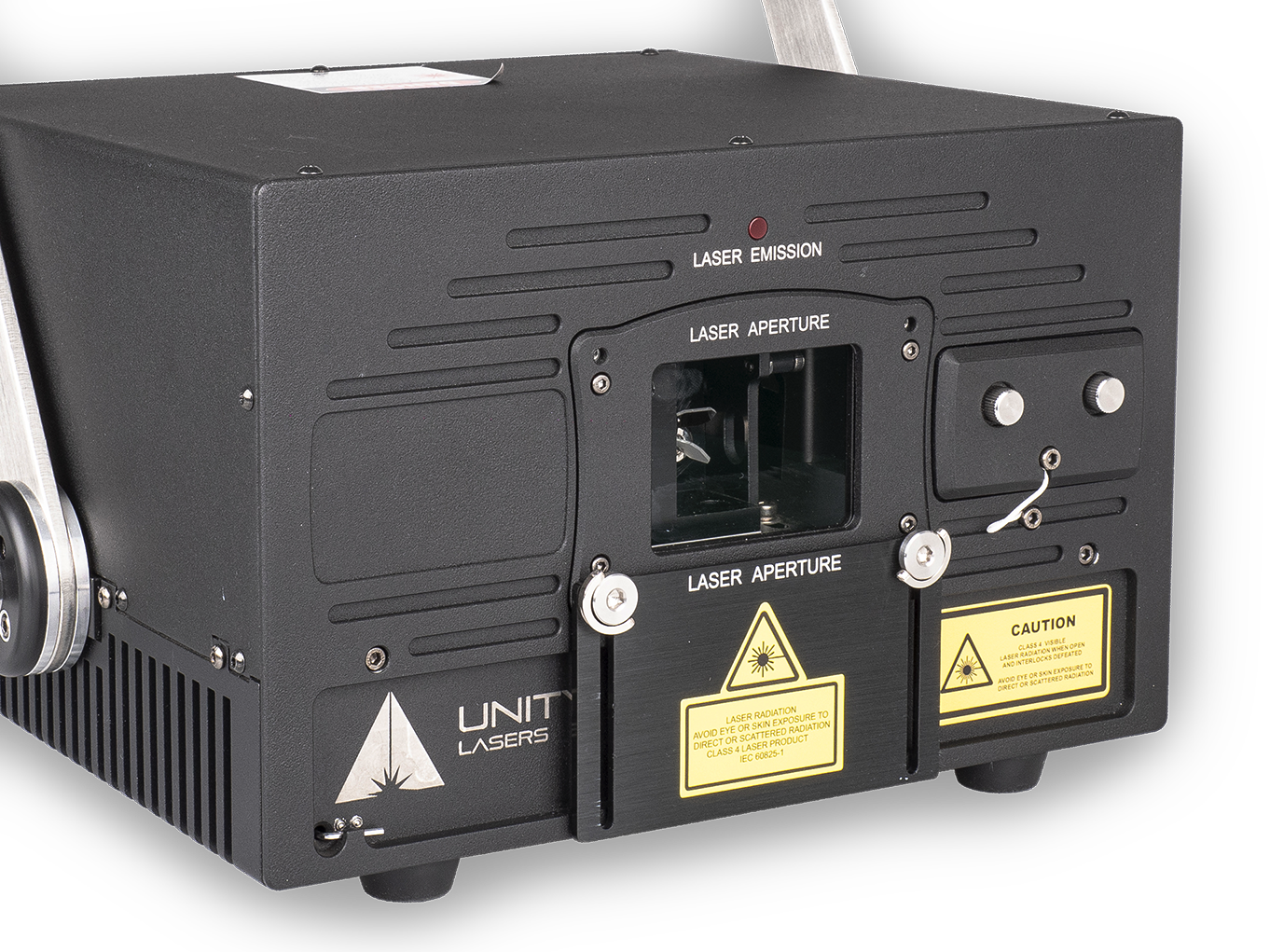

The ELITE 5 ILDA laser display system from the UNITY group is a semi-professional full-colour RGB, diode-based laser system combining power, performance and reliability into a robust housing.

It allows you to create high-impact aerial beam effects and various laser graphics, logos and text projections, all with excellent resolution.

With the proper control system selection, you can control the ELITE 5 ILDA laser via ILDA, DMX or ArtNet (with Pangolin software).

Unity Elite ILDA Series | 2 - 10 Watts ILDA RGB Lasers

What is in the Package

Heavy-duty flight case
Laser projector
Mains cable
ILDA cable
E-STOP Remote
E-STOP XLR cable
Set of 4 Safety keys
User guide PDF
Quality certificate
Interlock [for the US only]


Product Name: Unity ELITE 5 ILDA
Type Of Laser: Full-colour, Semiconductor diode laser system
Guaranteed Optical Output: >5,500mW
Suitable For: Medium-sized venues and indoor events; laser shows and laser graphic displays
Control Signal: ILDA - We recommend Pangolin FB3QS and QuickShow
Scanning System: 35kpps @ 8°
Scanning Angle max. 50°
Fully complies with the latest EN 60825-1 and FDA regulations
Weight: 9.2kg
Package Includes: Heavy-duty flight case, laser projector, mains-power cable, 10M ILDA signal cable, E-STOP Remote with 10M XLR cable, set of 4 safety keys, 3-pin interlock bypass plug [for the US only], USB drive with a User Manual, QC certificate.
R | G | B [mW]: 1230 | 1800 | 2500
Beam Size [mm]: 6 x 5
Beam Divergence: <1.5mrad [Full Angle]
Modulation: Analog 100kHz
Power Requirements: 100-230V/50Hz
Consumption: Max. 200W
Operation Temperature: 10-40 °C
Ingress Rating: IP 20
System Features: The adjustment knobs for each colour's power output, X & Y axes invert, and X & Y size and position are located on the rear panel. Scanning system protection.
Daisy chain of emergency STOP signal for multiple system "one-hit" operation.
Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
Notice: *Due to the Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
Dimensions [mm]: Depth: 300
Width: 307
Height: 181
