Specifications

Product Name: ELITE 10 PRO
Type Of Laser: Full-colour, Semiconductor diode laser system
Guaranteed Optical Output: 10,500mW
Suitable For: Large indoor / Medium outdoor laser shows and laser graphic displays

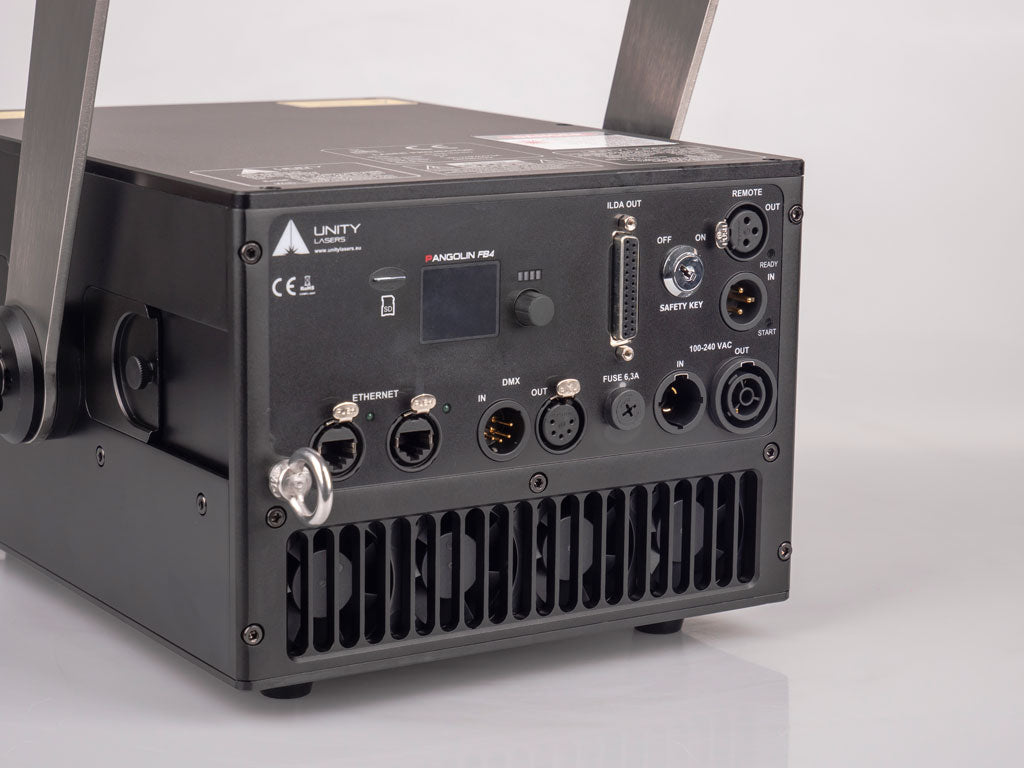

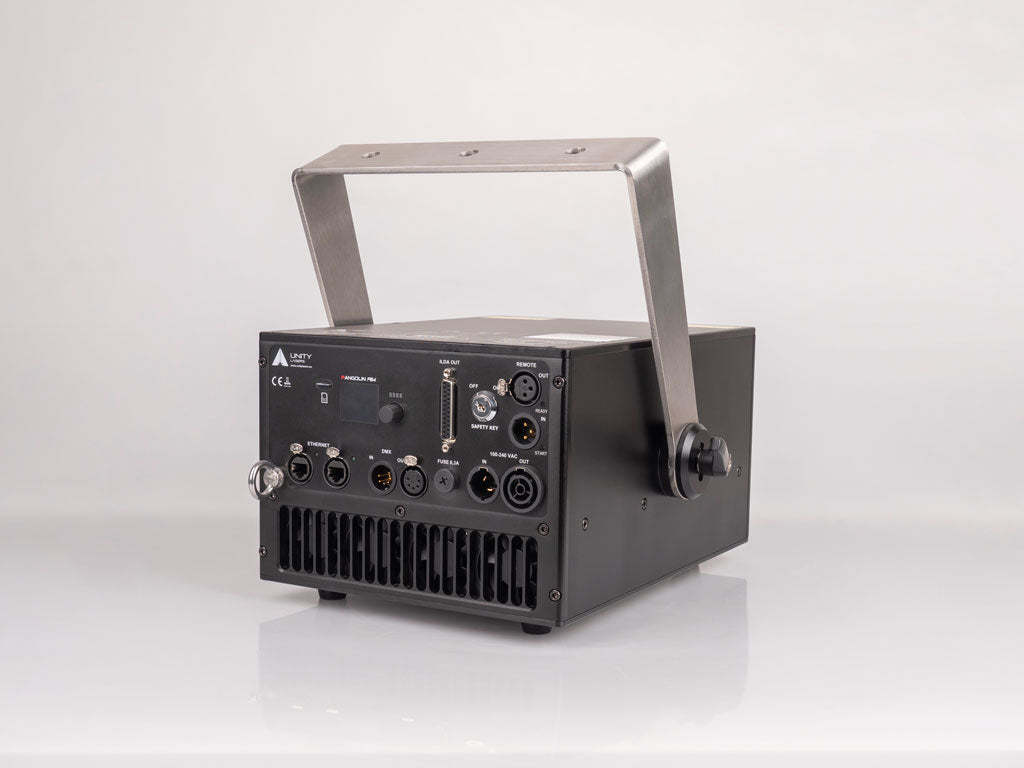

Control Signal: Pangolin FB4 - Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console, Autoplay
Scanning System: 35,000 points per second @ 8°
Scan Angle: 50°
Safety: Fully complies with the latest EN 60825-1 and FDA regulations
Weight: 11.7 kg
Package Includes: Heavy-duty flight case, Power cord, 10M ethernet (rj45) signal cable, E-STOP box with 10M cable, Set of 4 safety keys, 3-pin interlock bypass plug, Pangolin QuickShow laser control and creation software is available for download.
R | G | B [mW]: 2500 | 2700 | 5500
Beam Size [mm]: 6 x 6
Beam Divergence: <1.8mrad [Full Angle]
Modulation: Analog 100kHz
Power Requirements: 100-230V/50Hz
Consumption: Max. 240W
Operation Temperature: 10-40 °C
Ingress Rating: IP 20
System Features: All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface.
Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
Notice: *Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.
Dimensions [mm]: Depth: 315
Width: 255
Height: 168
Show Full Specification

Description

Overview

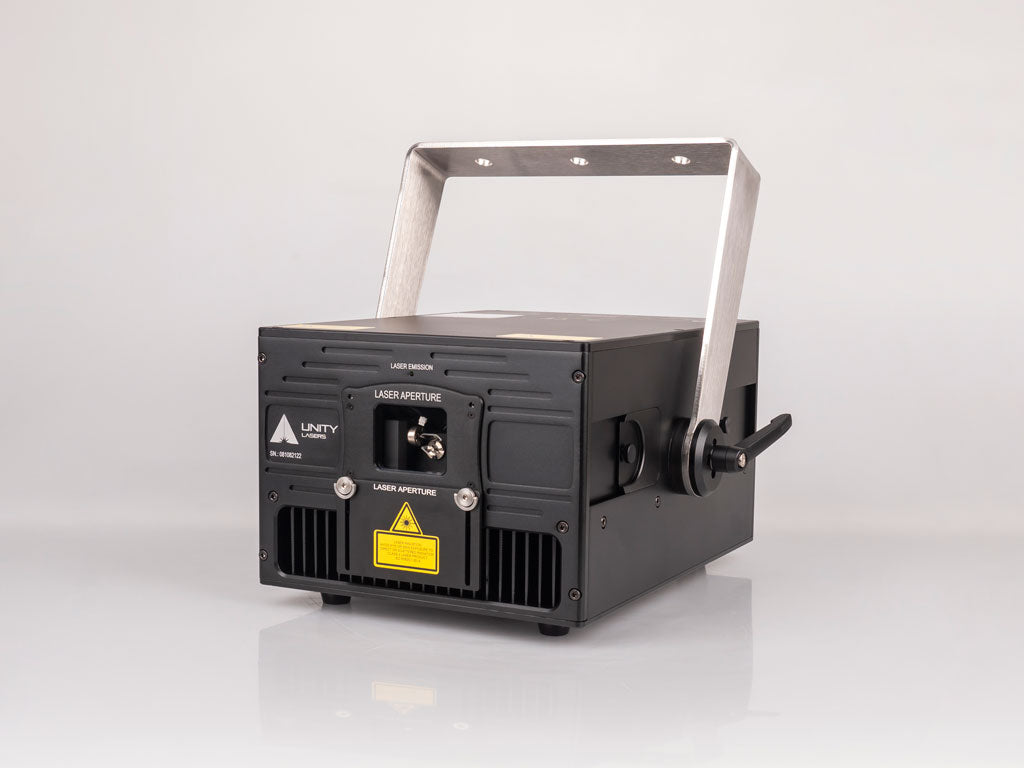

The ELITE 10 PRO FB4 is a full-colour RGB, diode-based laser system, with integrated Pangolin FB4 media server and robust housing. It is a great laser projector for lighting designers as well as special FX companies, who want to integrate lasers, into any multimedia setup.

Applications

The ELITE 10 PRO FB4 is perfect for medium to large indoor venues, as well as for use at small to medium size outdoor shows and festivals (up to around 10,000 people capacity). The fixture can also be used both indoors and outdoors, for the projection of laser graphics, logos, text and laser billboard advertisements.

Control

ELITE PRO FB4 models cater to the workflow of lighting designers.

Offering easy control in three different ways:

  1. Over DMX or ArtNET, directly from a console. And we include over 1,500 FREE laser gobos for you to control, directly on the laser.
  2. You can also control them via software from a PC (over Ethernet).
  3. Finally, we also offer auto-mode operation, where you can upload your desired laser content to the projector (this can be fully programmed shows, as well as single cues) and set the day, date and time for the projection, and it will be done automatically for you. No trigger, PC or control setup required. A truly auto-play setup, ideal for permanent installations.

In addition, ELITE PRO FB4 Series lasers include Pangolin’s QuickShow software, allowing you to design and create any sort of laser effect you can imagine (from aerial beam effects to text, graphics, and logos, and even fully programmed timeline shows) and you can then control those elements from any setup you desire – be it a lighting console, PC, or auto-mode.

You can try a FREE demo of QuickShow and see it in action here:

http://www.pangolin.com/quickshow.

What’s in the box

The ELITE 10 PRO FB4 package includes all of your main accessories, FREE.

  • Laser projector
  • Protective travel case
  • FB4 Media Server
  • QuickShow design software
  • Ethernet / Artnet control cable
  • E-stop safety system and E-stop cables
  • Interlocks
